LENGTH COUNTERS

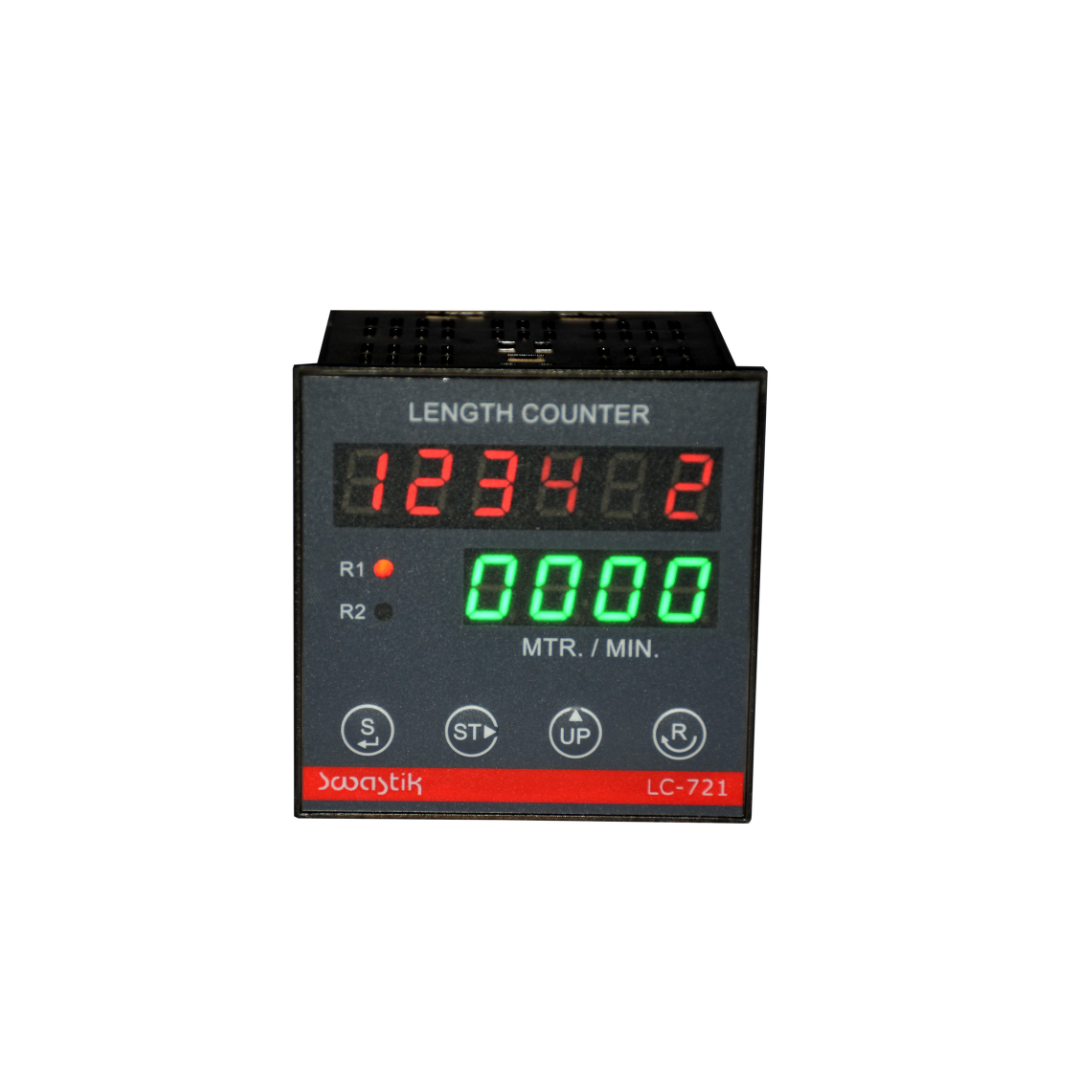

The Length Counter from Swastik Automation is designed for precise length measurement and batch counting. It features a 6-digit total length display and 4-digit MPM readout, with input options including NPN/PNP proximity, potential-free contact, and photocell. The unit is equipped with one relay output and supports both auto and manual reset functions. Ideal for use in industrial applications, it ensures accurate counting with a range limit of up to 99999.9 meters. With robust ABS protection, non-volatile memory, and easy panel mounting, it provides reliable performance in various environmental conditions.
Additional Information:
Features
- NPN/PNP proxy, potential free contact, photocell Input
- 6 digit total Length (Meter) / 4 Digit MPM
- Total Meter, Batch function, DIA meter Setting
- Auto / manual mode, Front/ back Reset
- 1 relay Output
- 230VAC Power Supply
Length Counter Specifications
- Case Size: 96 x 96 x 45, 72 x 72 x 65, 48 x 48 x 75
- Panel Hole Size: 92 x 92, 67 x 67, 46 x 46
- Range Limit: 0-99999.9 Meter
- Input: NPN/ PNP Proximity, Potential Free Contact, Photosell
- Sensor Supply: 12 VDC / 30 mA
- Input Speed: 10 KHz
- Accuracy: +/- 1 Count
- Function: Diameter / PPR Setting
- Output: 1 Relay
- Relay: 230 VAC / 5 AMP
- Counting: Up
- Display: 6 Digit Upper / 4 Digit Lower Display, 6 Digit Total Length / 4 Digit MPM
- Keyboard: 4 Keys
- Reset: Auto / Manual – Front / Back Reset
- Memory: Yes (Non-Volatile Memory)
- Front Protection: ABS Plastic Body
- Mounting: Flush Panel Mounting With Side Clamp
- Power Supply: 230 VAC +/- 10%, 50 HZ
- Environment: Temp: 0 – 50?C / Rh: 35 – 85 % (Non-Condensation)
