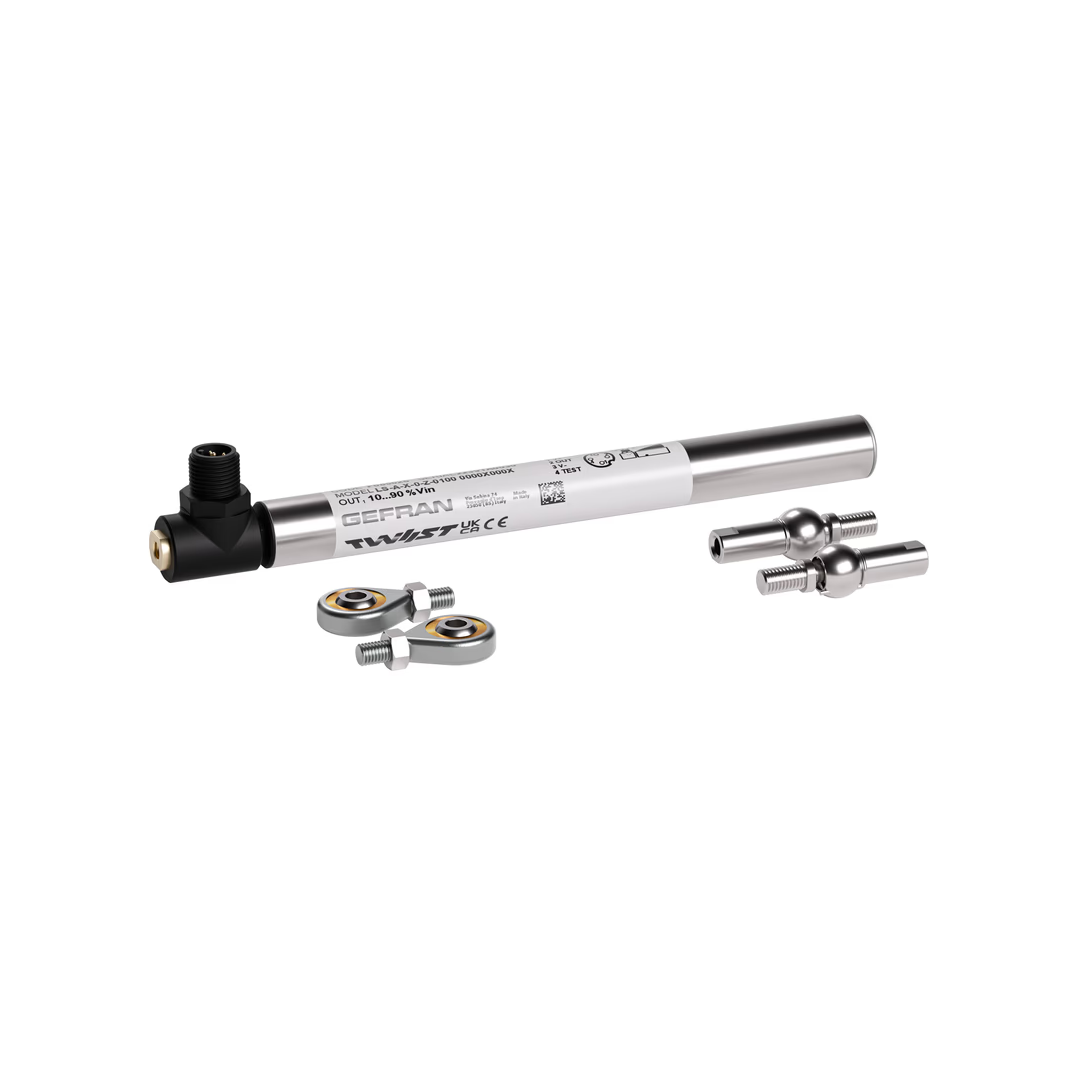

Contactless linear position transducer with TWIIST patented technology for longer lifetime. The absence of contact on the sensing element allows to obtain a fully-sealed, robust and compact sensor.

The high performance in terms of robustness, thermal stability and EMC immunity make the LS-A series suitable for use both in industrial environments and mobile hydraulics applications.

Product Features

• Strokes: Ranging from 50 to 900mm, offering flexible measurement lengths for various applications.
• Measurement: Provides accurate position measurements for precise tracking and control.
• Outputs: Includes radiometric, voltage, and current outputs for versatile data transmission options.
• Self-Aligning Mounting Mechanism: Ensures easy installation and accurate alignment for reliable performance.
• Direct and Reverse Analog Output: Available in single and redundant configurations, enhancing reliability and flexibility in use.
• Working Temperature: Operates within a temperature range of -40?C to +85?C, making it suitable for challenging environments.
• IP67 Protection: Fully sealed against dust and water, providing durability in harsh conditions.
• RoHS 2011/65/EU Compliance: Compliant with the latest environmental and safety standards for restricted hazardous substances.
• M12 Connector Output: Available with 4, 5, or 8-pin male M12 connectors for secure and versatile electrical connections.
