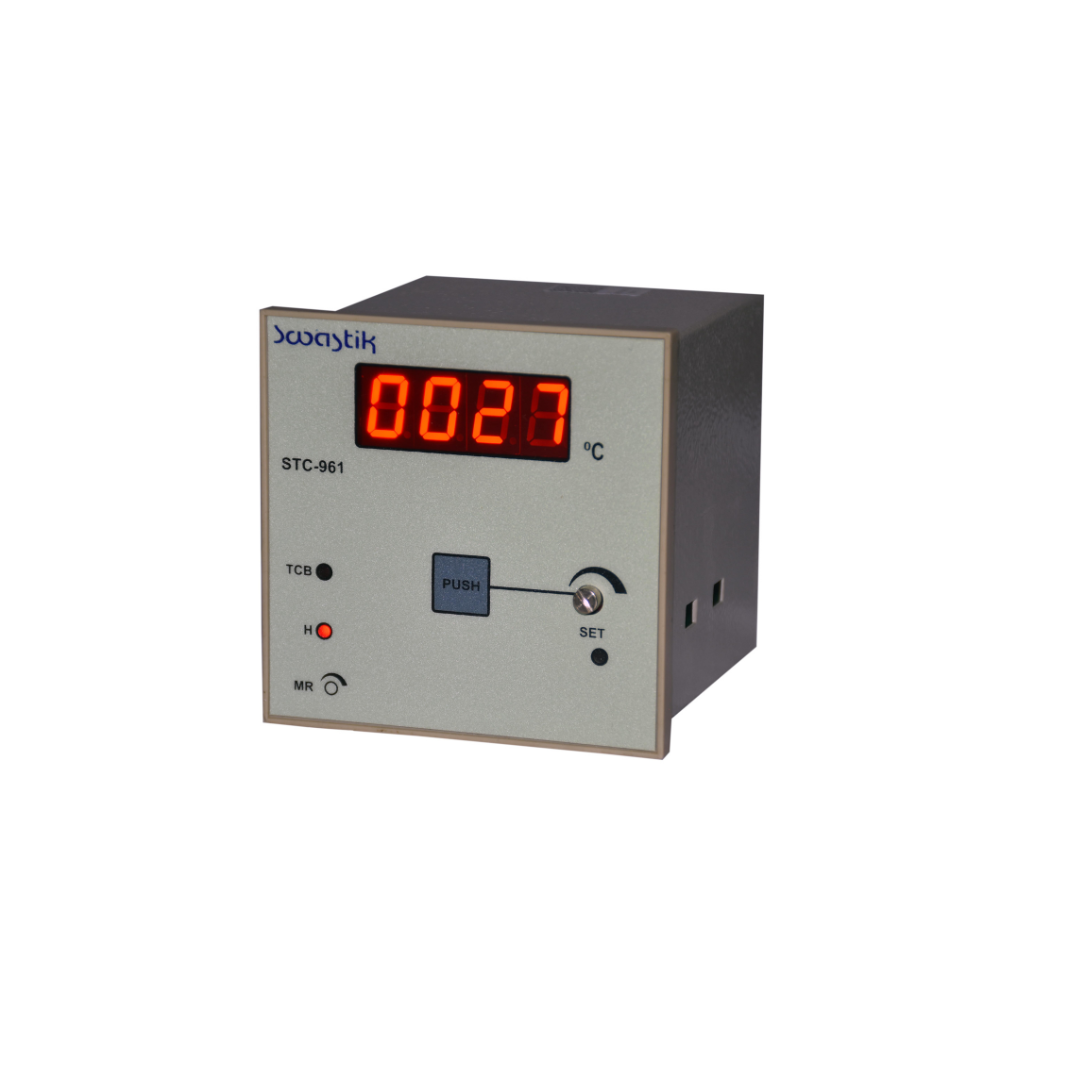

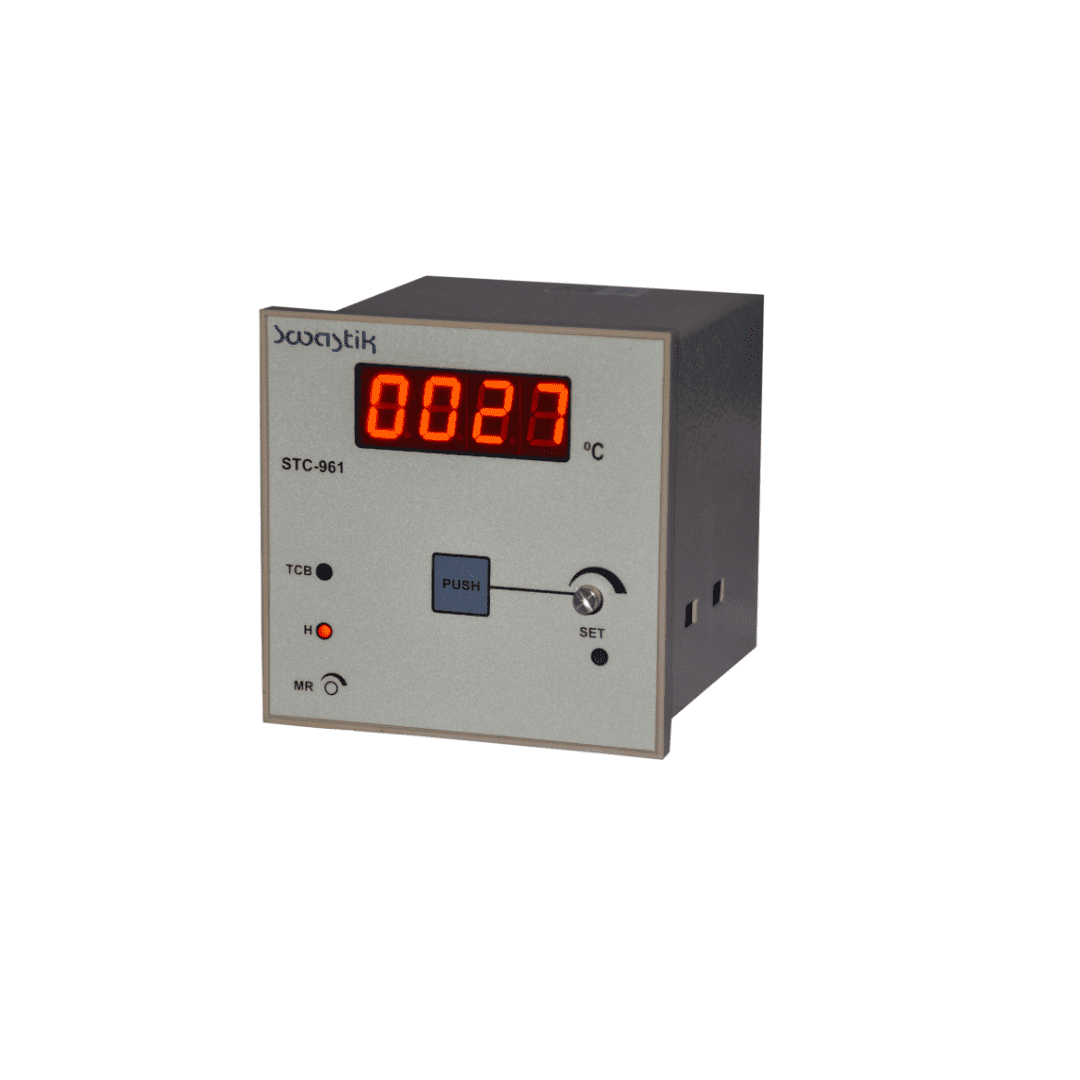

Push To Set Temperature Controller
The Push To Set Temperature Controller offers easy, one-touch control for precise temperature regulation. Ideal for industrial environments, it features a simple user interface and reliable performance. The controller ensures accurate temperature control with minimal effort, making it perfect for processes that require consistent and hassle-free temperature adjustments.
Additional Information:
Push to Set Type Temperature Controller
- Push to Set Type Setting
- J, K, RTD Type Sensor (Factory Set)
- TP or On-off Action
- Single Display / 1 Relay Output
- 230VAC Power Supply
| Push To Set Temperature Controller | |
|---|---|
| Case Size | 96 x 96 x 90, 72 x 72 x 110 |
| Panel Hole Size | 92 x 92, 67 x 67 |
| Sensor | T/C : K,E,J OR RTD : PT-100 /3 WIRE Factory set |
| Range Limit | J (0-400 ?C) , K (0-1200 ?C), PT-100 (-99.9 to 199.9 ?C or 0-400 ?C) |
| Accuracy | +/- 0. 5 % OF FS |
| Resolution | 1?C For Thermocouple / 0.1?C for RTD |
| Control Action | TP or ON-OFF Factory set |
| Number of Relay | 1 Relay Output |
| Display / color | 4 Digit Single Display Bright Red Seven Segment Display |
| Setting | Push to set type |
| Indication | Indication for Relay Status / T/C Open Indication |
| Mounting | Flush Panel Mounting With Side Clamp |
| Power Supply | 230 VAC, 50- 60 Hz, +/- 10 % |
| Environment | Temp : 0 – 50?C / Rh : 35 – 85 % ( Non – Condensation ) |
