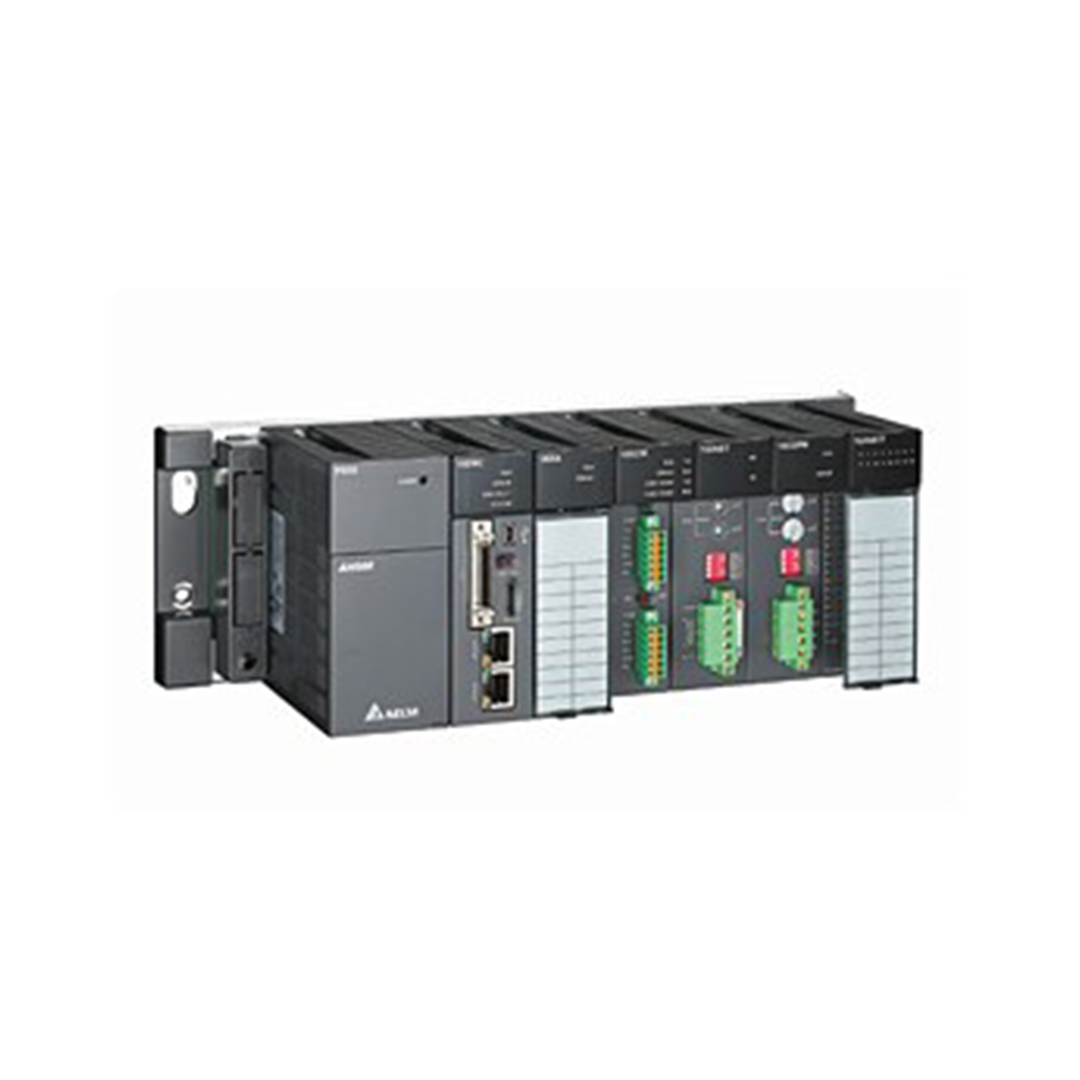

AH Series Motion CPU
AH Motion is the advanced motion control series with dedicated motion control CPUs and shares the same modules with AH series PLCs. Through the motion control network, such as EtherCAT, AH Motion CPU can perform high-speed, high-precision machine control with the connected servo drives on the motion network.
Additional Information:
Standard Motion Control System
- Provides EtherCAT and pulse train solutions for customers.
- Motion modules can independently take care of both the logic and motion control. Users can write and download the programs to the motion modules.
- All motion modules support the standard motion control system.
- All motion modules can be installed on the local backplanes.
- Motion control functions:
- Performance:
- Pulse train module: Max. 1 MHz output
- EtherCAT module: Min. synchronization time at 8 / 16 / 32 axes is 0.5 / 1 / 2 ms
- Supports UD / PD / AB / 4AB input modes
- Supports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolation
- Performance:
Applications
- Packaging machines
- Printing machines
- Electronics/Assembly Equipment
Specifications
| Communication | Ether CAT communication motion control (100 Mbps) |
| Synchronization Time | Min. synchronization time at 8/16/32 axes is 0.5/1/2 ms |
| Interpolation Support | Supports 2 ~ 6-axis linear interpolation, 2-axis arc interpolation and 3-axis helical interpolation |
| Built-in Ports | Built in Ethernet communication port |
| Storage | Supports Micro SD card |
| Ethe rNet/IP Support |
|
| CPU Execution Speed | LD instruction @ 0.08 ?s |
| Program Capacity | 256 k steps |
| Data Register | D=64 k words / L=64 k words |
| Input Modes | Supports UD / PD / AB / 4 AB input modes |
| Programming Communication Port | Built-in Mini USB programming communication port |
| G-code Support | Supports G-code |
| Hot-Swapping Function | Supports hot-swapping function |
| Diagnostics | Diagnose function |
| Module Status Indicator | Module status LED indicator |
| Installation | Supports installation on CPU slot of motion backplane and working as CPU (Note) |
| FB Instance Limit | Max. quantity of FB instance is 4096 |
