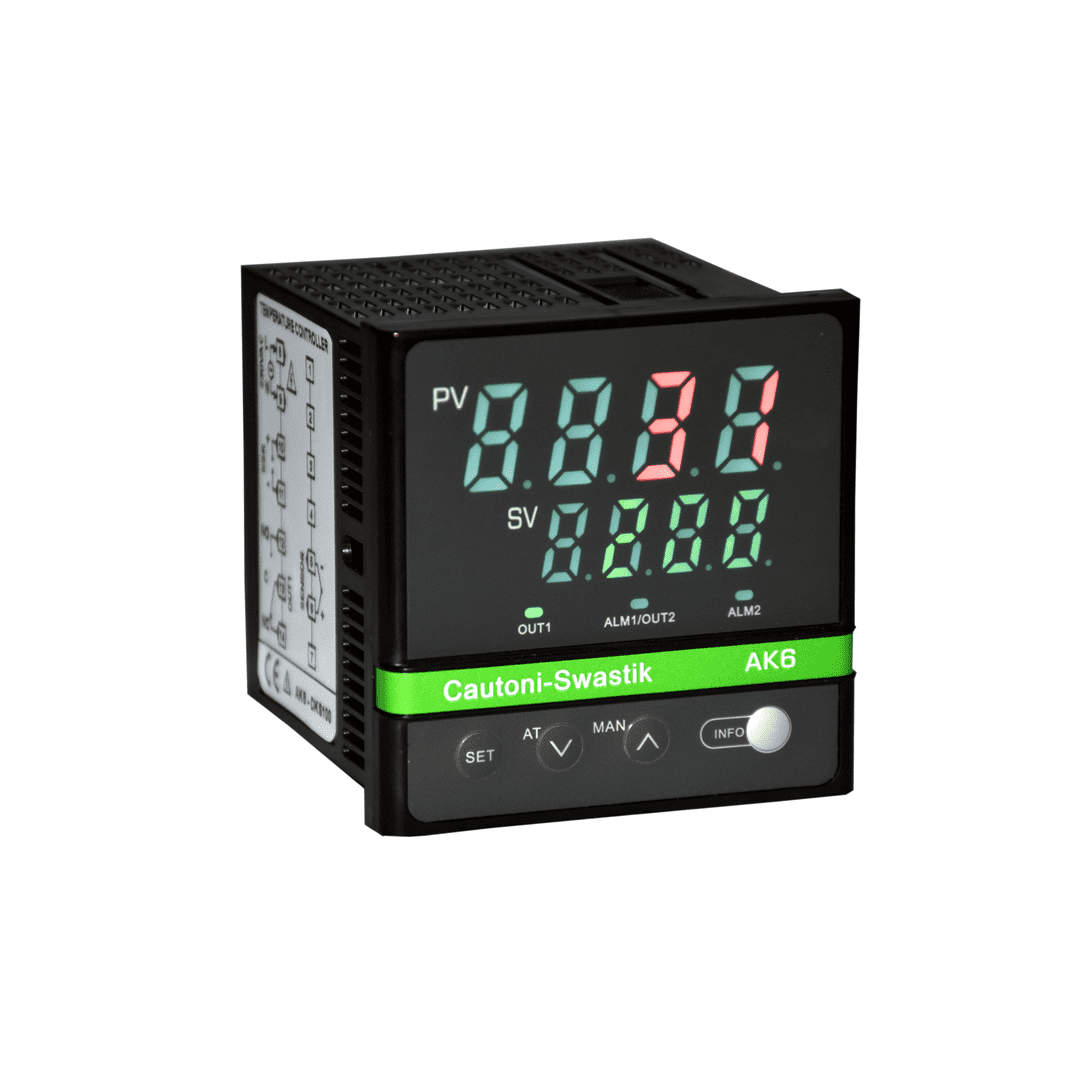

AK6 Temperature Controller
The AK6 Temperature Controller is designed for efficient temperature regulation in various applications. With high accuracy, versatile input options, and a user-friendly interface, it ensures stable performance and precise control. It is ideal for industries needing consistent temperature management for processes requiring exact heat or cooling control.
Additional Information:
Temperature Controller Specifications
- All TC / RTD Sensor Selectable
- Dual Display / Relay ? SSR Output
- PID / On-Off Action
- 85 ? 265 VAC Power Supply
AK6 Temperature Controller Specifications
| Specification | Details |
|---|---|
| Case Size | 48 x 48 x 76 |
| Panel Hole Size | 46 x 46 |
| Sensor | T/C: K, E, J, N, S, B, R, T; RTD: PT-100 / 3 WIRE |
| Range Limit | Check Table -1 for Range and Set Point High / Low Limit |
| Accuracy | +/- 0.5 % OF FS |
| Sampling Time | 300 MS |
| Resolution | 1 ?C |
| Display | 4 Digit Dual Display |
| Unit | ?C / ?F User Selectable |
| Control Action | PID / ON-OFF |
| Output | 1 Relay + SSR Output |
| Relay | Relay AC 220 V / 30 VDC / 3 A |
| Logic Level | On: 12 VDC OFF: 0.5 VDC / 30 mA, Load Resistance |
| Auto / Manual Operation | Output Power is increased / Decreased by Up / Down key in Manual Mode |
| Color | Upper: 4 digit Red Lower: 4 Digit Green Seven Segment Display |
| Keyboard | 4 keys |
| Indication | Indication for Relay Status / Alarm Status / Alarm Information |
| Mounting | Flush Panel Mounting With Side Clamp |
| Power Supply | 95 – 270 VAC, 50- 60 Hz |
| Working Environment | Temp: 0 – 50?C / Rh: 35 – 85 % (Non-Condensation) |
