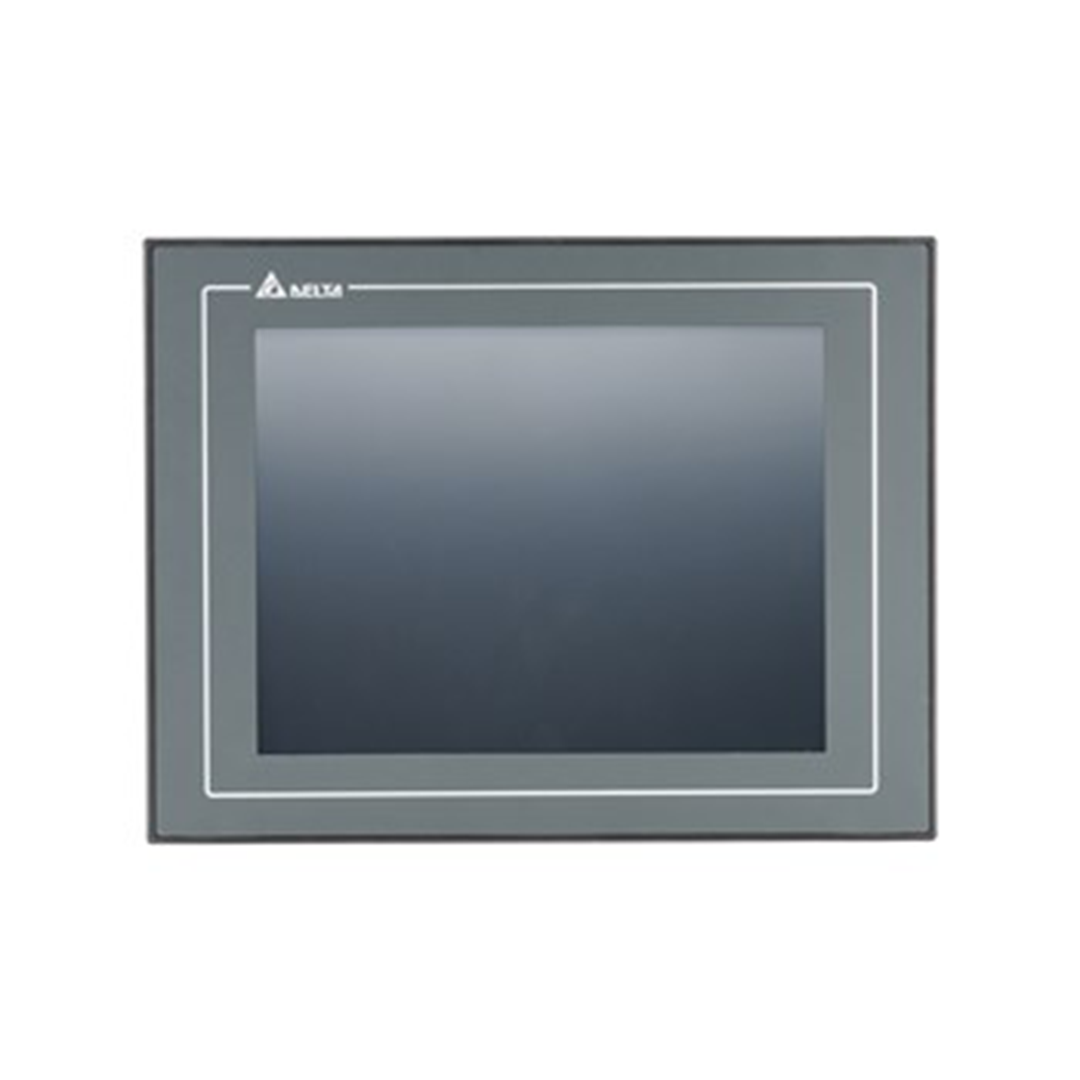

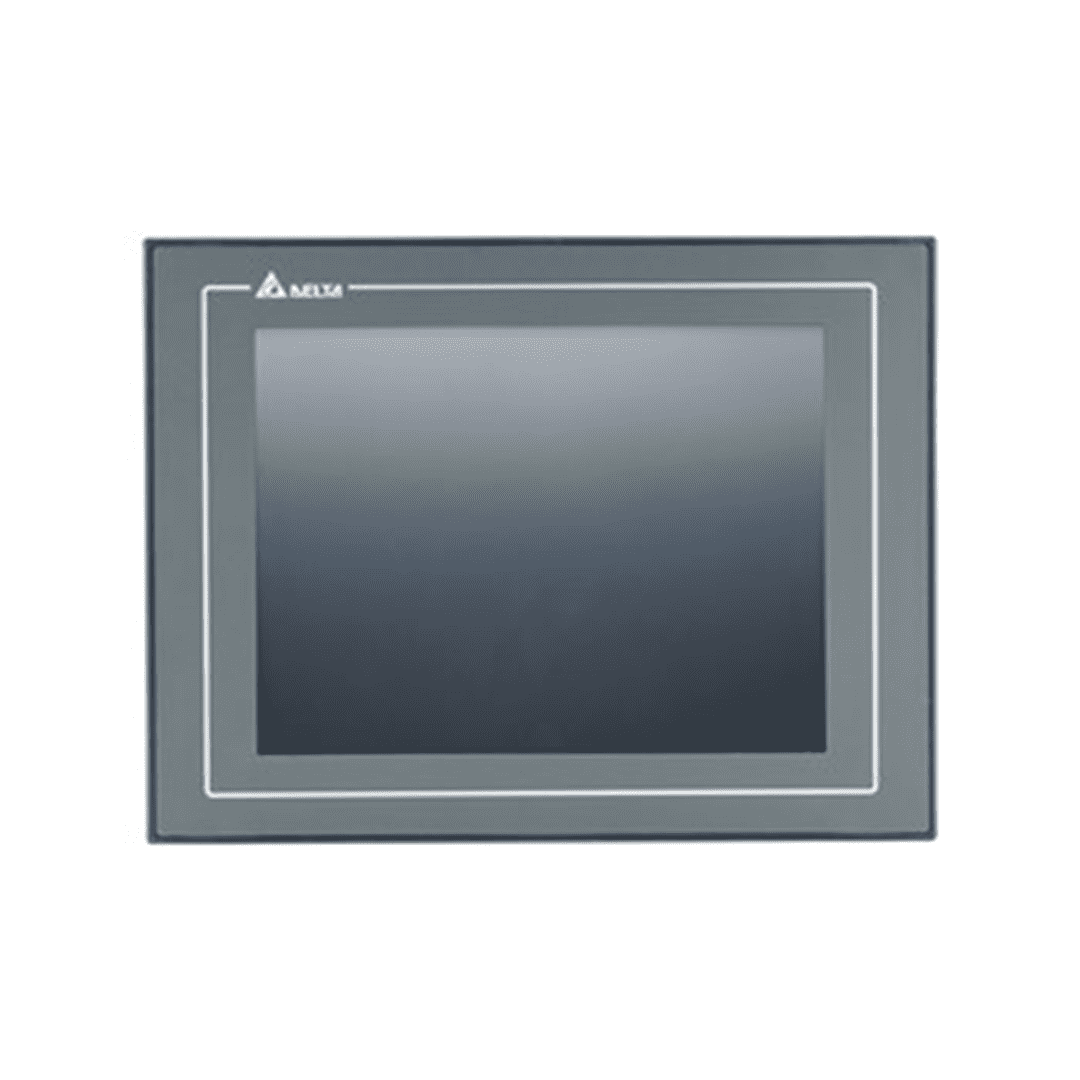

HMI I Type
The Standard HMI I Type is equipped with 3 Serial Communication Ports to meet diverse requirements. It supports Ethernet for fast and easy connection with other equipment.
Features & Benefits
- Multiple size options: 7? / 8? / 10.1? / 10.4?
- High-performance CPU: Cortex-A8
- Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 3), USB, SD card slot, and more
- Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation
- Certification: CE / UL
Additional Information:
Product Introduction
Applications
- Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
| Specification | DOP-107IV | DOP-108IG | DOP-110IS | DOP-110IG |
|---|---|---|---|---|
| Display | 7″ TFT | 8″ TFT | 10.1″ TFT | 10.4″ TFT |
| Resolution (Pixels) | 800 x 480 | 800 x 600 | 1,024 x 600 | 800 x 600 |
| Color | 16-bit | |||
| CPU | Cortex-A8 800 MHz | |||
| ROM | 256 MB | |||
| RAM | 256 MB | |||
| Ethernet | 1 Port | |||
| COM Port | 3 Serial COM Ports | |||
| USB | 1 Slave / 1 Host | |||
| SD | SD x 1 | |||
| Certification | CE / UL | |||
| Operating Temperature | 0 ~ 50?C | |||
| Storage Temperature | -20 ~ 60?C | |||
