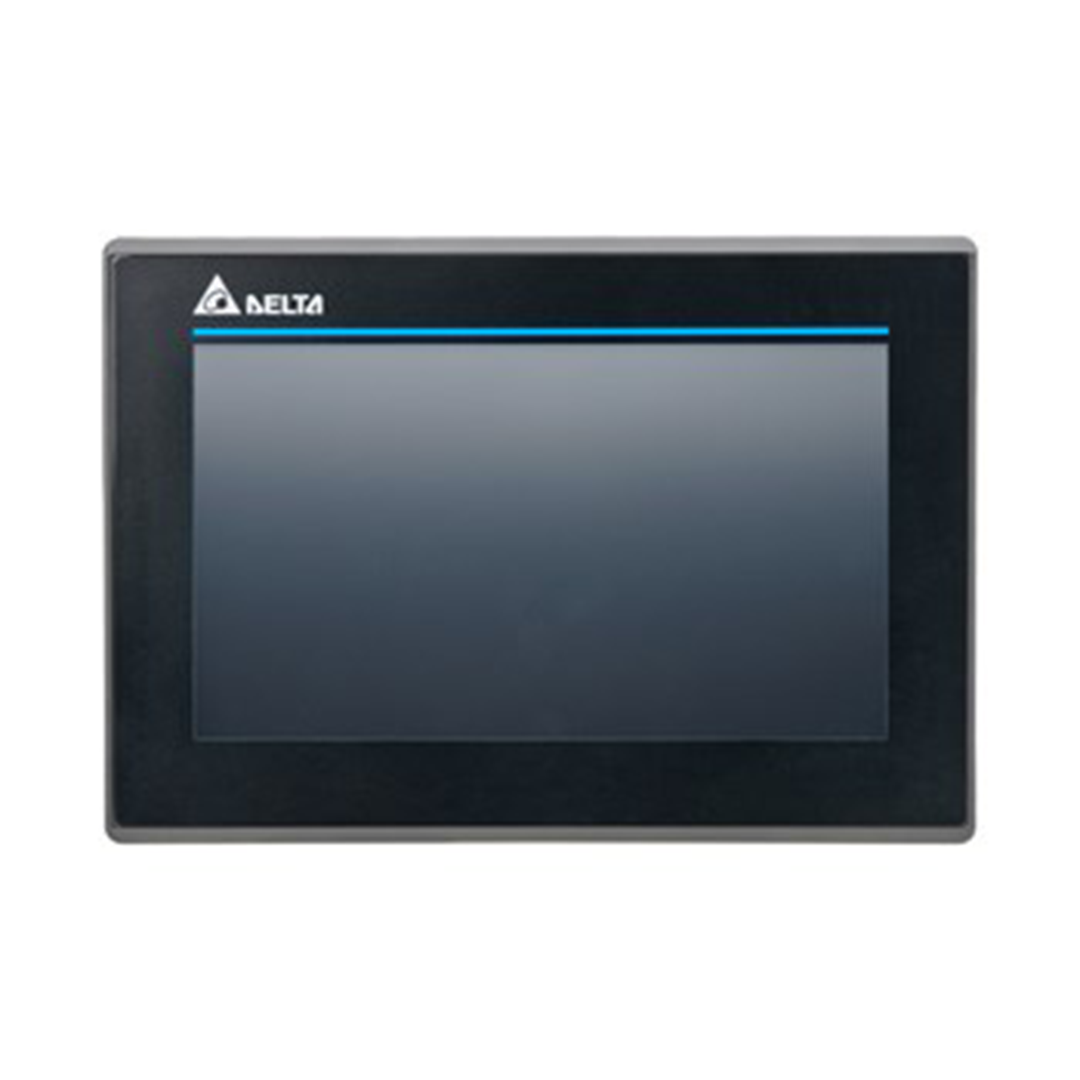

HMI P Type
The Standard HMI P Type is equipped with 3 Serial Communication Ports to meet diverse requirements. It supports Ethernet for fast and easy connection with other equipment.
Features & Benefits
- Full lamination design
- High-performance CPU: Cortex-A8
- Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 2), USB, and more
- Security isolation protection: Ethernet isolation
- Certification: CE / UL
Additional Information:
Applications
Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
| Specification | DOP-107PV |
|---|---|
| Display | 7″ TFT |
| Resolution (Pixels) | 800 x 480 |
| Color | 24-bit |
| CPU | Cortex-A8 800 MHz |
| ROM | 256 MB |
| RAM | 256 MB |
| Ethernet | 1 Port |
| COM Port | 3 Serial COM Ports |
| USB | 1 Slave / 1 Host |
| Certification | CE / UL |
| Operating Temperature | 0 ~ 50?C |
| Storage Temperature | -20 ~ 60?C |
