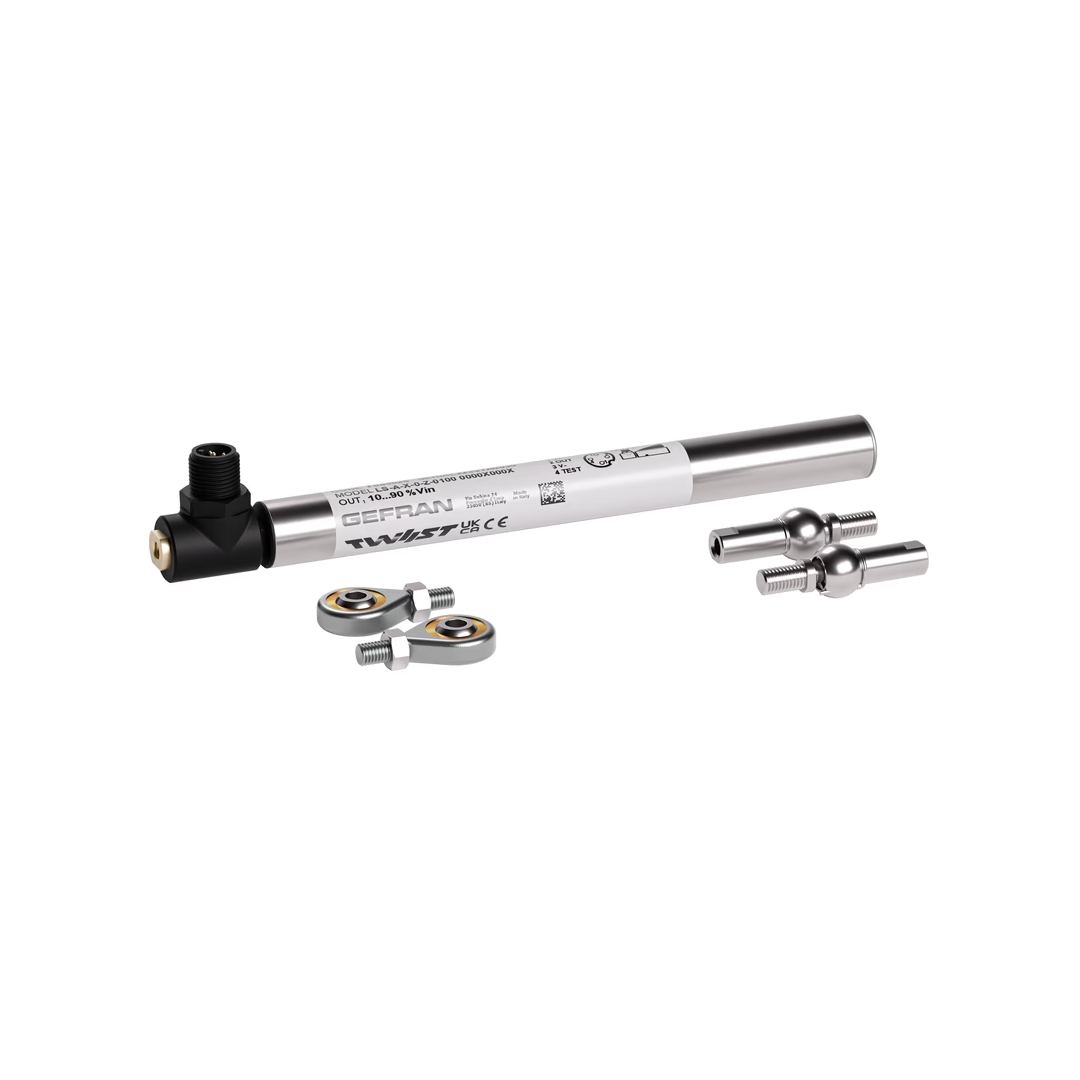

Contactless linear position transducer with TWIIST patented technology for longer lifetime. The absence of contact on the sensing element allows to obtain a fully-sealed, robust and compact sensor.

The high performance in terms of robustness, thermal stability and EMC immunity make the LM-C series suitable for use both in industrial environments and mobile hydraulics applications. The possibility to measure additional variables with respect to position (speed, triaxial inclination, acceleration and vibration, electronics temperature) combined with the CAN open protocol, allows to benefit from the advantages of Industry 4.0 in terms of preventive product and process maintenance.

Product Features

• Strokes: Ranging from 100 to 900mm for versatile application options.
• Measurement: Includes position, velocity, triaxial tilt, acceleration, vibration, and electronics temperature for comprehensive monitoring.
• CAN open Output: Supports communication via CAN open output for enhanced integration and control.
• Self-Aligning Mounting Mechanism: Provides ease of installation with a self-aligning feature for better alignment during setup.
• Operating Temperature: -40?C to +85?C, ensuring reliable operation in extreme environmental conditions.
• IP67 Protection: Offers excellent resistance to dust and water ingress, suitable for harsh environments.
• Compliance: Conforms to the RoHS directive 2011/65/EU, ensuring eco-friendly materials and components.
• Output Connector: M12 ? 5 poles male, providing secure and reliable electrical connections.
