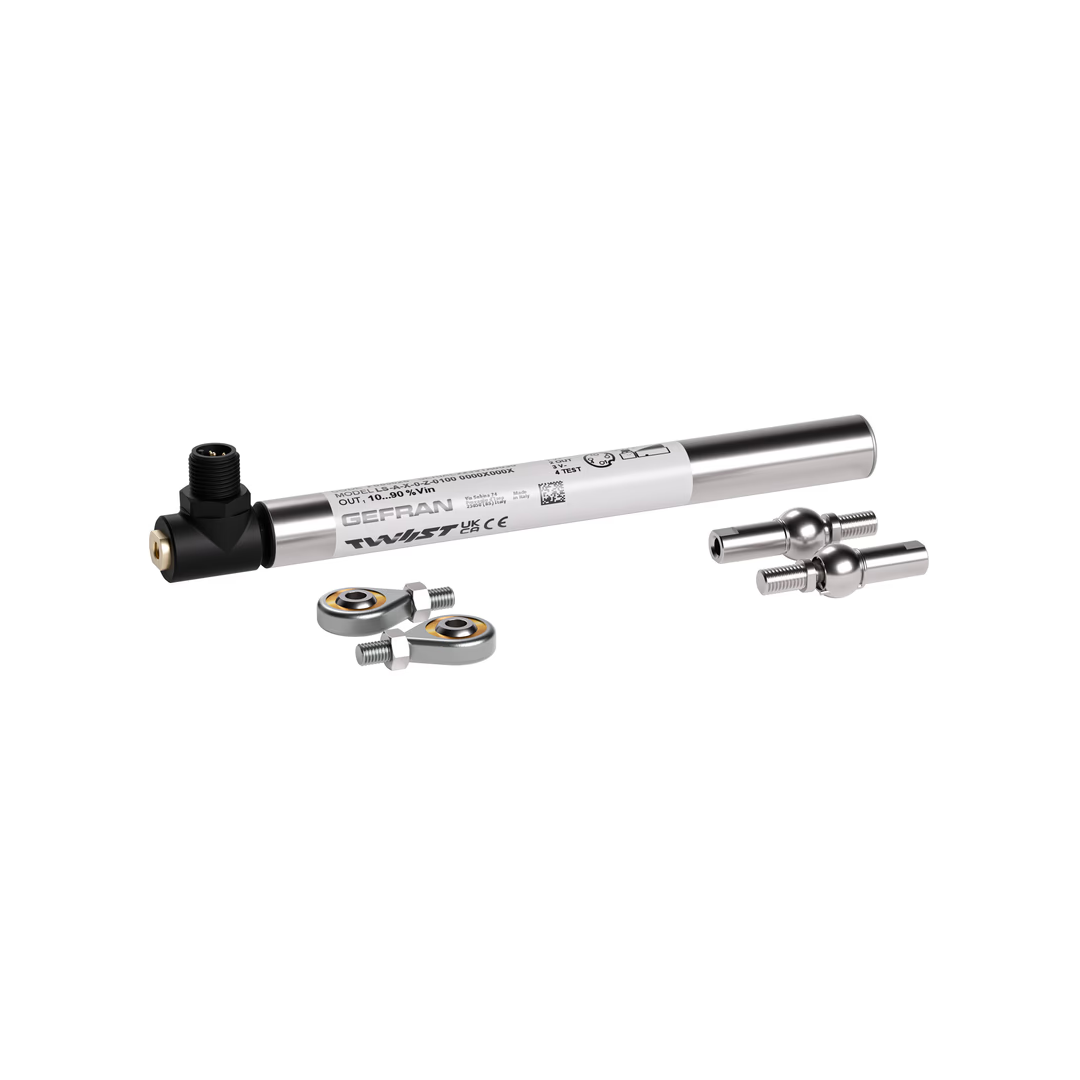

Contactless linear position transducer with TWIIST patented technology for longer lifetime. The absence of contact on the sensing element allows to obtain a fully-sealed, robust and compact sensor.

The high performance in terms of robustness, thermal stability and EMC immunity make the LM-L series suitable for use both in industrial environments and mobile hydraulics applications. The possibility to measure additional variables with respect to position (speed, triaxial inclination, acceleration and vibration, electronics temperature) combined with the IO-Link protocol, allows to benefit from the advantages of Industry 4.0 in terms of preventive product and process maintenance.

Product Features:

• Strokes: Ranging from 100 to 900mm for a wide range of application needs.
• Measurement: Includes position, velocity, triaxial tilt, acceleration, vibration, and electronics temperature for detailed monitoring and analysis.
• IO-Link Output: Supports IO-Link output for easy integration and data communication in industrial applications.
• Self-Aligning Mounting Mechanism: Facilitates easy installation with a self-aligning feature for accurate positioning.
• Operating Temperature: -40?C to +85?C, ensuring functionality in extreme temperature environments.
• IP67 Protection: Offers high resistance to dust and water, suitable for use in harsh or wet environments.
• Compliance: Meets the RoHS directive 2011/65/EU, ensuring eco-friendly material use.
• Output Connector: M12 ? 5 poles male connector for secure and reliable electrical connections.
