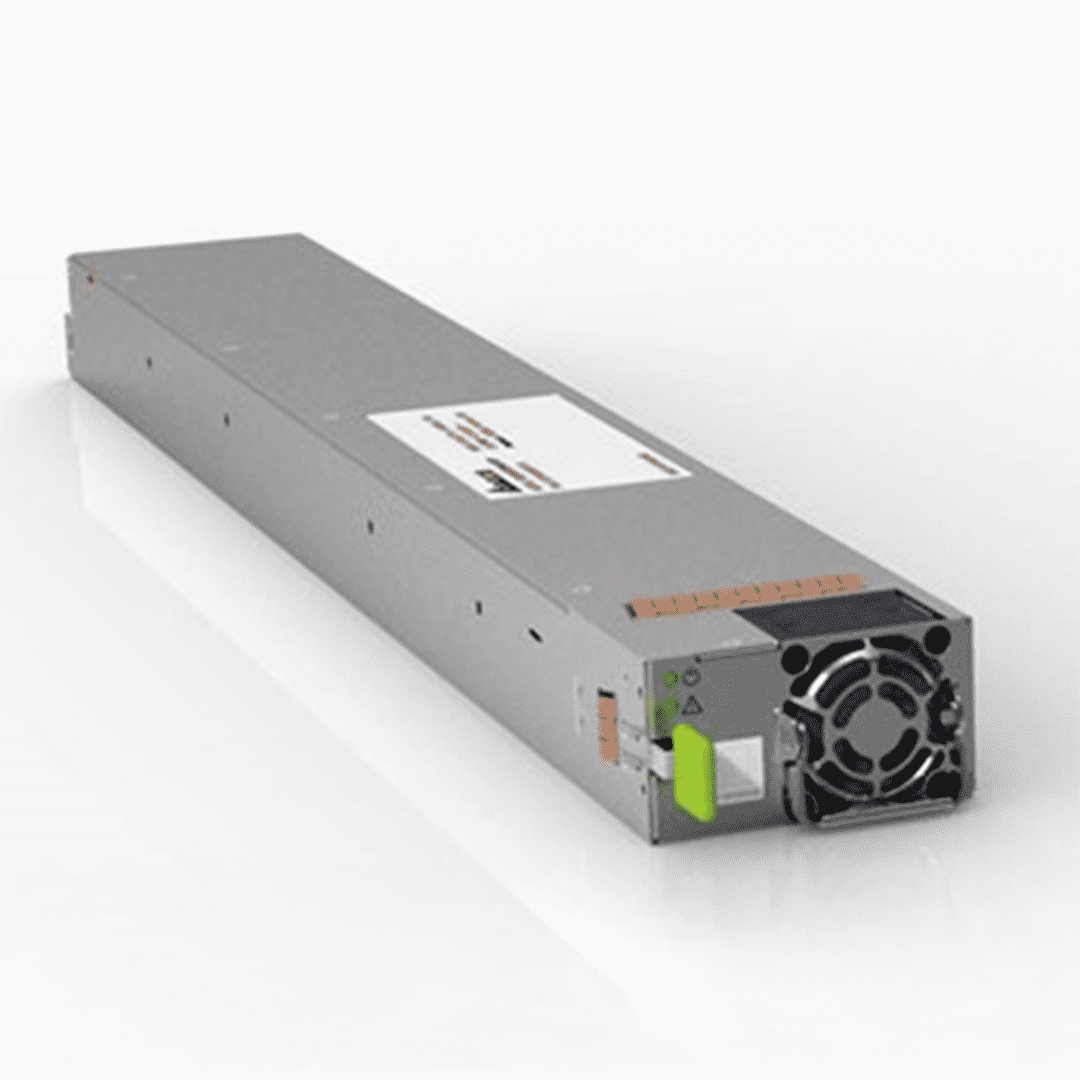

5.5 kW Power Psu
5.5 kW Power Psu
The 5.5 kW power supply units (PSU) boast over 97.5% peak efficiency. It features high power output and energy efficiency, suitable for AI server. It is customizable in terms of hardware and firmware based on client demands to realize high energy efficiency for data centers.
Additional Information:
Product Introduction
Highly efficient AC/DC 5.5kW rectifier for data center power systems. Based on Open Compute Project (OCP) Open Rack version 3 (ORV3) HPR. Ideal for AI Servers.
Features & Benefits
- High Efficiency 97.5% (peak)
- High Line Wide Range Input (200 V / 277 V)
- Parallel operation
- Hot Pluggable
- Droop & Active shallow I2C current share
- Boot load function
- Customizable on request
Applications
- Highly efficient AC/DC 5.5kW rectifier for data center power systems
- Based on Open Compute Project (OCP) Open Rack version 3 (ORV3) HPR
- AI Servers
Specifications:
5.5kW Power Supply Unit (PSU) Specifications
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 1.57 x 2.9 x 25.2 inches (40.0 x 73.5 x 640 mm) |
| Weight | 9.92 lbs (4.5 kg) |
| Max. Output Power | 5,500W |
| Output Voltage | 48 / 50VDC |
| Output Current | 110A |
| Input Voltage Range | 180VAC – 305VAC, 50 / 60Hz |
| Efficiency | >97.5% @ 50% Load |
| Cooling | Fan Cooled |
| Connector | FCI Multi-Beam |
| Safety Standards | IEC 60950-1 (CB) / UL 62368-2 (CAN / CSA) |
| EMC Standards | Class A |
| Communication | I?C & RS485 |
