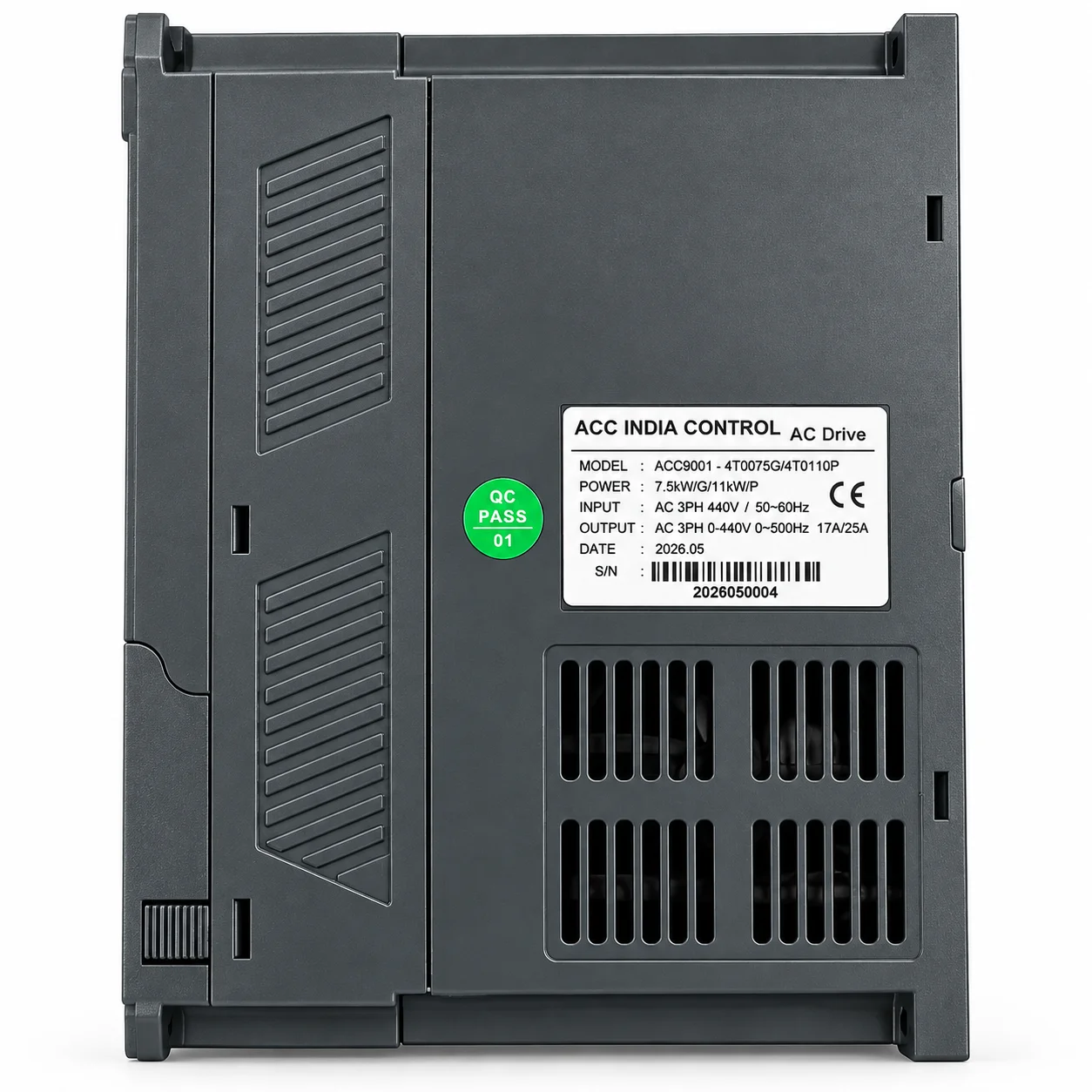

ACC AC Drive 0.75KW to 200KW – Industrial Variable Frequency Drive

The ACC AC Drive 0.75KW to 200KW is an industrial Variable Frequency Drive (VFD) designed to regulate AC motor speed and support efficient motor operation. Built with a microprocessor-based control system, it offers Vector and V/F control modes to meet different motor control requirements. Its adjustable output frequency range of 0.5–400 Hz enables flexible speed control for compatible industrial applications.

With a 380–480V AC three-phase supply, a rated output current of 12A, and a digital LED display, the ACC AC Drive 5.5kW provides practical control and monitoring capabilities for industrial equipment. Its compact panel-mount design, built-in braking unit, and integrated electrical protection functions make it suitable for a range of motor-driven systems.

Key Features of ACC AC Drive 0.75KW to 200KW

• Energy-Efficient Motor Control: Helps regulate motor speed according to application requirements.
• Flexible Speed Adjustment: Supports an output frequency range of 0.5–400 Hz.
• Multiple Control Modes: Offers Vector and V/F control for compatible motor applications.
• Comprehensive Protection: Includes overvoltage, undervoltage, overload, short-circuit, and overheat protection.

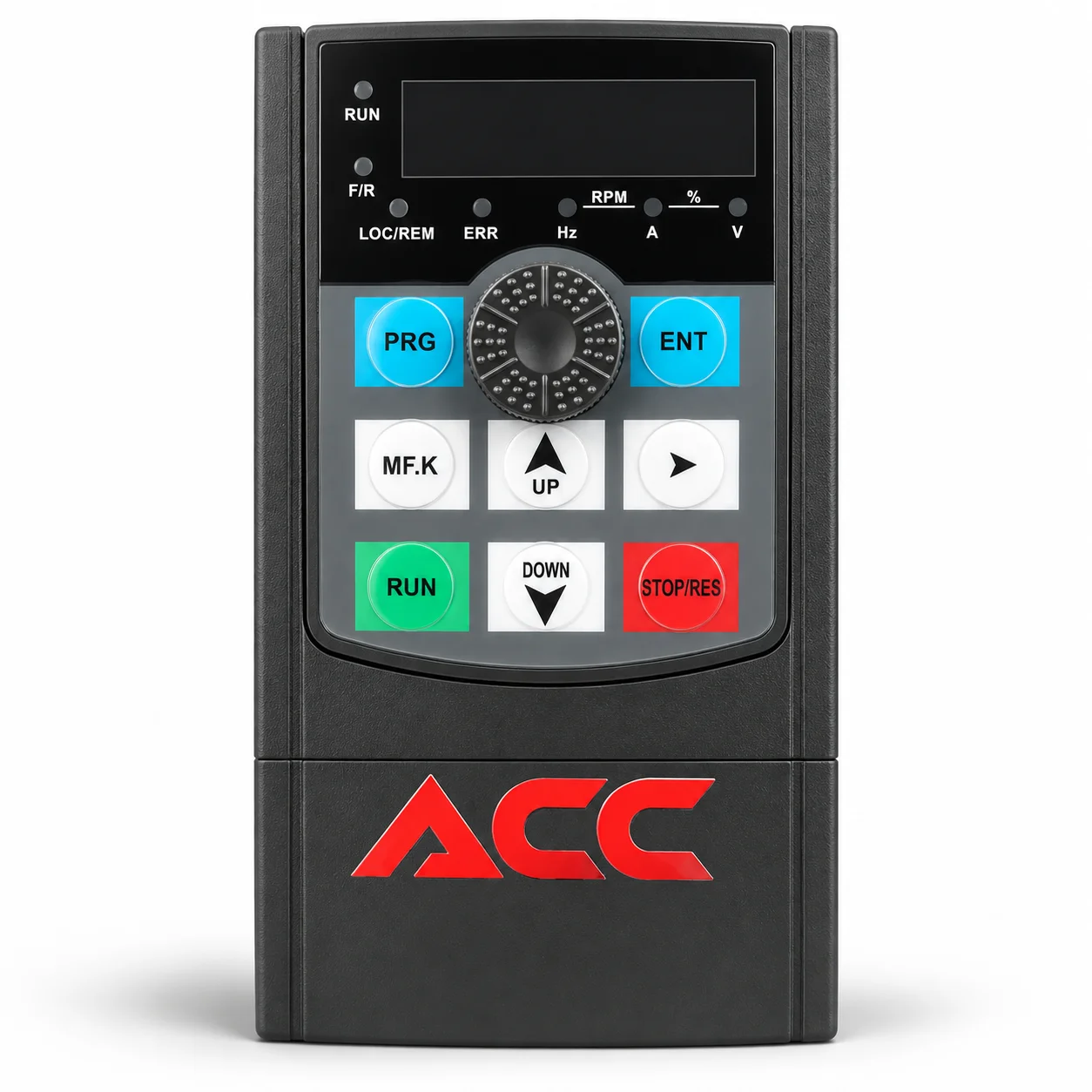

• Digital LED Display: Enables convenient parameter viewing and monitoring.
• Built-In Braking Unit: Supports braking functions where compatible with the motor and application.
• Compact Construction: Designed for panel mounting in industrial control cabinets.
• Fan Cooling: Helps manage operating temperature under suitable installation conditions.
• Flexible Parameter Setting: Supports keypad-based configuration and serial communication as specified.

Technical Specifications of ACC AC Drive 5.5kW

Note: Confirm the specifications, especially output current, communication options, EMC compliance, and control functions, against the manufacturer’s datasheet for the exact model before publication.

Applications of ACC AC Drive 5.5kW

The ACC AC Drive 5.5kW can be considered for compatible motor-driven applications across manufacturing and industrial automation.

• HVAC Systems: Regulates motor speed in compatible ventilation and air-handling equipment.
• Pump Systems: Supports adjustable motor operation in industrial pumping applications.
• Fan Systems: Enables speed control based on airflow and operating requirements.
• Industrial Machinery: Supports controlled motor operation in manufacturing equipment.
• Conveyor Systems: Helps regulate conveyor motor speed where drive and motor ratings are suitable.
• Process Automation: Supports motor control in automated production and processing systems.

Benefits of ACC AC Drive 5.5kW

Improved Motor Speed Control

Adjustable frequency and multiple control modes allow motor operation to be matched to the needs of compatible applications, helping improve process control.

Potential Energy Savings

Adjusting motor speed to actual demand can reduce energy consumption in suitable variable-torque applications, such as pumps and fans. Actual savings depend on the equipment, load profile, and operating conditions.

Reliable Operation

Integrated electrical protection functions help protect the drive and connected system against specified fault conditions. Correct installation, configuration, and maintenance remain essential.

Convenient Operation

The digital LED display and keypad provide access to drive parameters and operating information, simplifying routine adjustments and monitoring.

Space-Saving Installation

The compact panel-mount design supports installation inside suitable industrial control cabinets, subject to ventilation and clearance requirements.

Installation and Operating Considerations

Before installing the ACC AC Drive 5.5kW, verify that the motor’s rated power, voltage, current, and operating characteristics are compatible with the drive. Ensure that the supply voltage falls within the specified range and that the panel provides suitable ventilation and electrical protection.

Configure motor parameters and acceleration and deceleration settings according to the application. Use appropriately rated wiring, grounding, protective devices, and installation practices. Allow only qualified personnel to install, commission, or service the drive.

Frequently Asked Questions

1. What is the power rating of the ACC AC Drive?

The ACC AC Drive covered here has a rated power of 5.5kW and is specified for a 380–480V AC three-phase supply.

2. What is the frequency range of the ACC AC Drive 5.5kW?

The specified adjustable output frequency range is 0.5–400 Hz. The usable range depends on the motor, load, and manufacturer’s operating limits.

3. Which applications are suitable for this AC drive?

It is intended for compatible industrial motor-control applications, including HVAC equipment, pumps, fans, and selected manufacturing machinery.

4. What protection functions are included?

The supplied specifications list overvoltage, undervoltage, overload, short-circuit, and overheat protection. Confirm the exact protection functions in the model-specific datasheet.

5. Does the ACC AC Drive support remote control?

Remote or external control is specified as supported. The available control methods and required wiring or communication accessories should be verified for the exact model.

6. Does this AC drive support RS-485 communication?

RS-485 communication is listed as optional. Confirm whether the required communication interface is included or needs to be purchased separately.

7. What is the IP rating of the ACC AC Drive 5.5kW?

The stated rating is IP20. The drive should be installed in an appropriate enclosure and environment according to the manufacturer’s instructions.

Enquire About ACC AC Drive 5.5kW

Looking for an ACC AC Drive 5.5kW for your industrial motor-control application? Contact our team to confirm model specifications, compatibility, pricing, and availability for your requirements.
