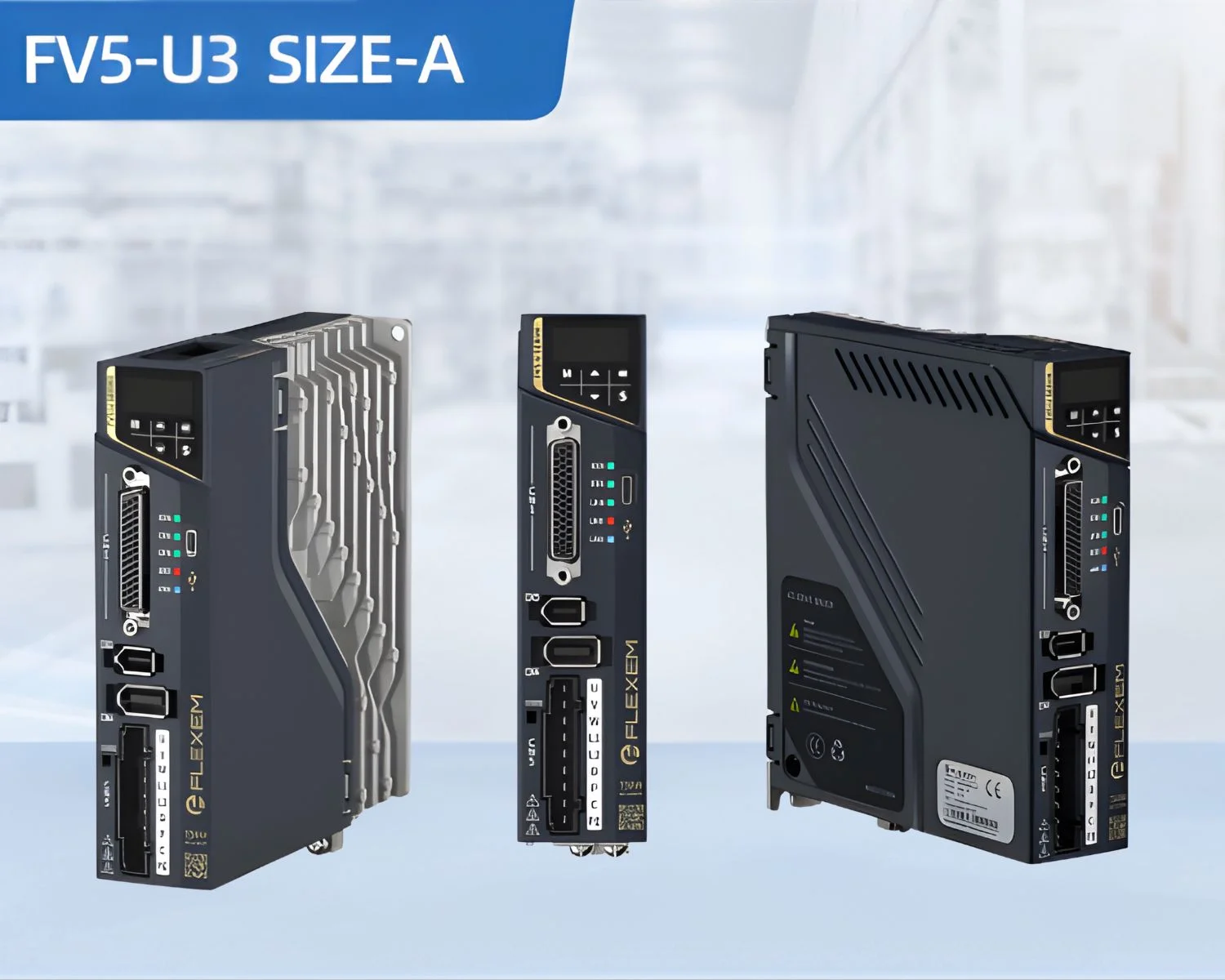

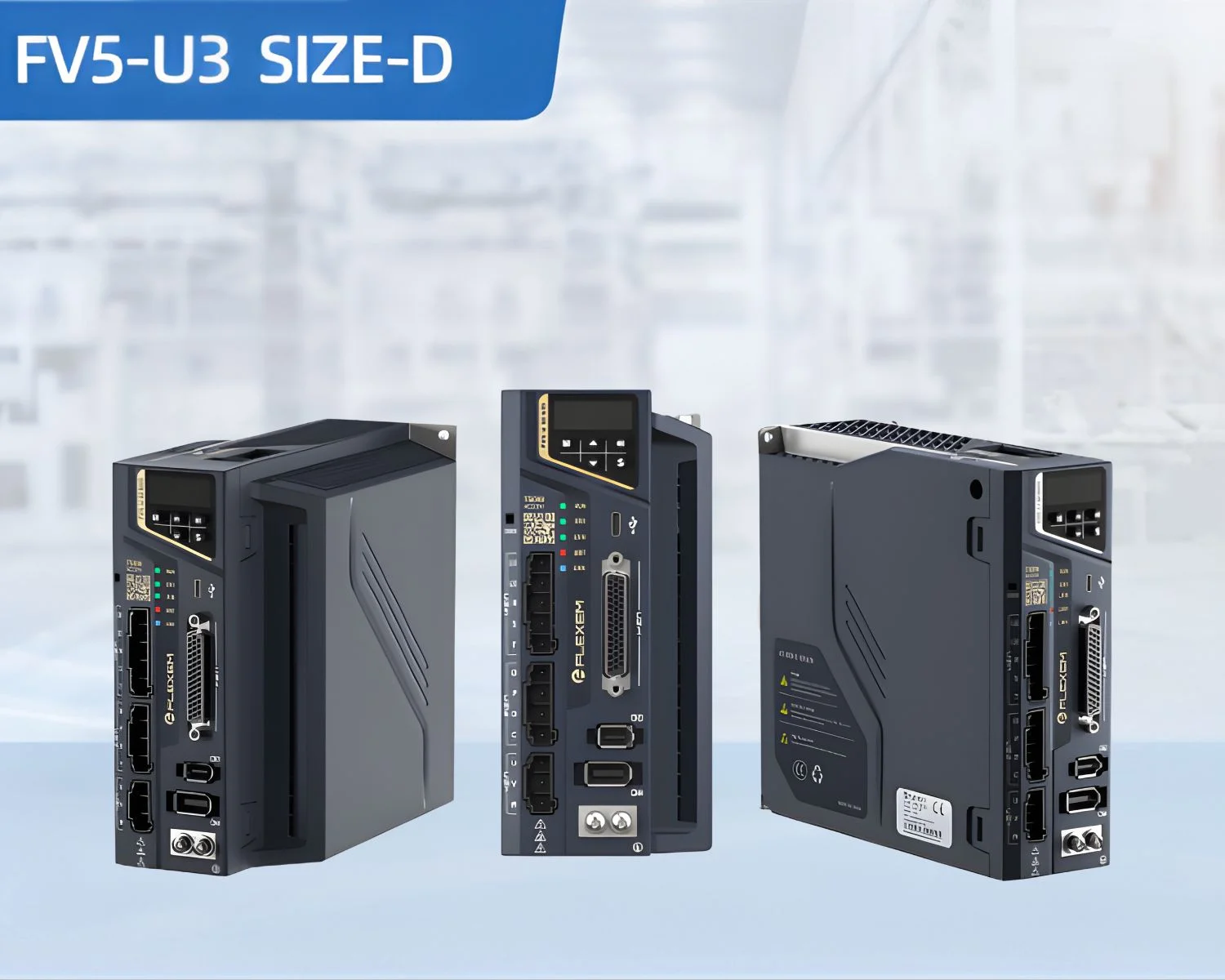

Flexem FV5-U3 Series
Dealer In India | Zentech Automation
Flexem FV5-U3 Series
Aiming at the field of precision manufacturing, it provides customers with high-performance motion control solutions with high dynamic response and precise positioning.3.5kHz speed loop bandwidth, general rotary servo, DDR, DDL, voice coil motor. Supports EtherCAT and Modbus communication protocols, standard dynamic braking function, standard encoder output, bus model standard STO function, pulse model supports two-way analog quantity, and high-speed DI/DO terminals support probes and flying shots.
Additional Information:
FV5-U3 Series — Specification
| Specification | A1R1 | A1R6 | A2R8 | A3RO | A4R5 | A5R5 | A6RO | C7R6 | C8RO | C010 | C012 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated current (Arms) | 1.1 | 1.6 | 2.8 | 3.0 | 4.5 | 5.5 | 6 | 7.6 | 8 | 10.0 | 12.0 |
| Maximum output current (Arms) | 3.9 | 5.9 | 10.1 | 10 | 13.5 | 16.9 | 18.0 | 23.0 | 23.0 | 27.0 | 32.0 |
| Input power supply (V) | Single phase AC200V-240V, -10% ～ 10%, 50/60Hz (for the smaller models) — Three phase AC200V-240V, -10% ～ 10%, 50/60Hz (for other variants) | ||||||||||
| Rated power (W) | 100 | 200 | 400 | 400 | 600 | 750 | 1000 | 1000 | 1500 | 1500 | 1500 |
| Communication port | Background communication / Type-C USB | ||||||||||
| EtherCAT Communication | FV5-U3-N***** model support | ||||||||||
| RS485 Communication | FV5-U3-P***** model support | ||||||||||
| Encoder interface – CN3 | Biss-C Encoder / Tamagawa, Nikon Protocol Communication Encoder | ||||||||||
| Encoder interface – CN4 | ABZ Encoder | ||||||||||
| IO Specification (A.I) | The FV5-U3-N***** model supports 1 channel (16-bit per channel); the FV5-U3-P***** model supports 2 channels (16-bit per channel plus 12-bit per channel) | ||||||||||
| Normal Digital Input | FV5-U3-N***** model: 3 points; FV5-U3-P***** model: 6 points | ||||||||||
| High-Speed Digital Input | FV5-U3-N***** model: 2 points; FV5-U3-P***** model: 2 points | ||||||||||
| Normal Digital Output | FV5-U3-N***** model: 2 points; FV5-U3-P***** model: 5 points | ||||||||||
| High-Speed Digital Output | FV5-U3-N***** model: 2 points | ||||||||||
| Low-Speed Pulse Input | Only the FV5-U3-P***** model supports: Collector input mode: 200 kpps | ||||||||||
| High-Speed Pulse Input | Only the FV5-U3-P***** model supports: Differential input mode: 4 Mpps | ||||||||||
| STO | FV5-U3-N***** model support | ||||||||||
| Encoder Differential Output | Full range support | ||||||||||
| Encoder Z‑phase Pulse OC Output | Full range support | ||||||||||
| Dynamic Braking | Full range support | ||||||||||
| Motor Temperature Protection | Full range support | ||||||||||
| Brake function | External braking resistor | Built-in braking resistor | |||||||||
| Built-in braking resistor resistance (Ω) | — | — | — | — | — | 50 | 50 | 25 | 25 | 25 | 25 |
| Built-in braking resistor capacity (W) | — | — | — | — | — | 50 | 50 | 80 | 80 | 80 | 80 |
| Minimum external braking resistor resistance (Ω) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 20 | 20 | 15 | 15 |
| Installation size | SIZE-A (A1R1 → A4R5), SIZE-B (A5R5 → A6RO), SIZE-C (C7R6 → C8RO), SIZE-D (C010 → C012) | ||||||||||
| Specification | T3R5 | T5R4 | T6R0 | T8R0 | T8R4 | T010 | T012 | T017 | T021 | T026 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated current (Arms) | 3.5 | 5.4 | 6.0 | 8.0 | 8.4 | 10.0 | 12.0 | 17.0 | 21.0 | 26.0 |
| Maximum output current (Arms) | 11.0 | 14.0 | 15.0 | 20.0 | 20.0 | 21.0 | 30.0 | 42.5 | 52.5 | 65.0 |
| Input power supply (V) | Three phase AC380V-440V, -10% ～ 10%, 50/60Hz | |||||||||
| Rated power (W) | 1000 | 1500 | 1500 | 1500 | 2000 | 3000 | 3000 | 5000 | 6000 | 7500 |
| Communication port | Background communication / Type-C USB | |||||||||
| EtherCAT Communication | FV5-U3-N***** model support | |||||||||
| RS485 Communication | FV5-U3-P***** model support | |||||||||
| Encoder interface – CN3 | Biss-C Encoder / Tamagawa, Nikon Protocol Communication Encoder | |||||||||
| Encoder interface – CN4 | ABZ Encoder | |||||||||
| IO Specification (A.I) | The FV5-U3-N***** model supports 1 channel (16-bit per channel); the FV5-U3-P***** model supports 2 channels (16-bit per channel plus 12-bit per channel) | |||||||||
| Normal Digital Input | FV5-U3-N***** model: 3 points; FV5-U3-P***** model: 6 points | |||||||||
| High-Speed Digital Input | FV5-U3-N***** model: 2 points; FV5-U3-P***** model: 2 points | |||||||||
| Normal Digital Output | FV5-U3-N***** model: 2 points; FV5-U3-P***** model: 5 points | |||||||||
| High-Speed Digital Output | FV5-U3-N***** model: 2 points | |||||||||
| Low-Speed Pulse Input | Only the FV5-U3-P***** model supports: Collector input mode: 200 kpps | |||||||||
| High-Speed Pulse Input | Only the FV5-U3-P***** model supports: Differential input mode: 4 Mpps | |||||||||
| STO | FV5-U3-N***** model support | |||||||||
| Encoder Differential Output | Full range support | |||||||||
| Encoder Z‑phase Pulse OC Output | Full range support | |||||||||
| Dynamic Braking | Full range support | |||||||||
| Motor Temperature Protection | Full range support | |||||||||
| Brake function | Built-in braking resistor | |||||||||
| Built-in braking resistor resistance (Ω) | 100 | 100 | 100 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Built-in braking resistor capacity (W) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Minimum external braking resistor resistance (Ω) | 80 | 60 | 60 | 45 | 45 | 40 | 40 | 35 | 25 | 25 |
| Installation size | SIZE-C (T3R5 → T6R0), SIZE-D (T8R0 → T012), SIZE-E (T017 → T026) | |||||||||
