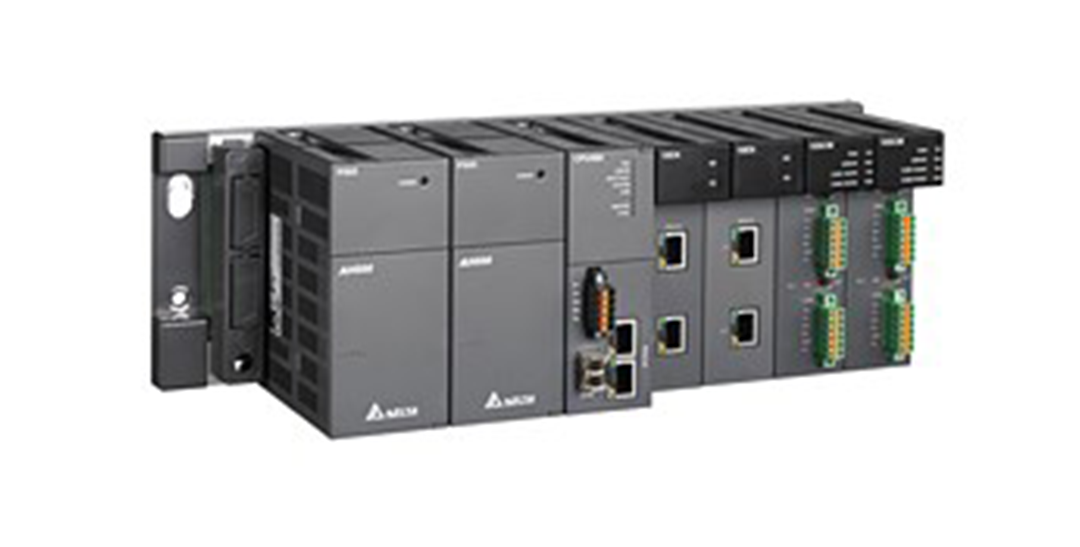

AH Series Redundant CPU

AH Series Redundant CPU

AH Series Redundant CPU

The AH Series Redundant CPU offers high reliability for mission-critical industrial applications. With a 32-bit processor and redundant configuration, it ensures uninterrupted performance even in case of failure. Designed for real-time control, it supports advanced motion control functions like 3-axis linear interpolation, 2-axis arc interpolation, and 3-axis helical interpolation. The CPU provides enhanced system flexibility, fast program execution, and improved system availability with automatic switchover between CPUs. Ideal for large-scale machinery and applications requiring high uptime and precision control.

Whats App
Click here

Additional Information:

  • Redundant CPU: The redundant CPU of the AH Series adopts a reliable redundancy structure, integrating synchronous modules, Ethernet ports, and serial communication interfaces for a more competitive control solution.
  • Redundant Backplane: The redundant backplane of the AH Series provides redundant power supply and communication interfaces for a complete control solution.
Features & Benefits
  • Reliable Redundancy: Offers high availability by ensuring seamless operation in case of CPU failure.
  • Advanced Control Solution: Combines synchronous modules and communication interfaces to deliver a competitive and efficient control system.
  • Redundant Power Supply: Ensures continuous operation with backup power supplies.
  • Seamless Communication: Integrated Ethernet and serial communication interfaces for reliable data exchange.
Applications
  • Public construction
  • Water treatment
  • Large factory monitoring system
Specifications
  • Processor: Utilizes 32-bit processor
  • Program execution speed: LD instruction execution speed 0.02?s
  • Max. I/O points:
    • DIO: Max. 4,352 points
    • AIO: Max. 544 channels
    • RIO: >100,000 points
  • Program capacity: Max 1M steps (4MB)
  • Data register (D+L): 512 words
  • Built-in communication ports:
    • RS-232/485 multi-modes communication port x1 (RS-232: 115.2kbps, RS-485: 921.6kbps)
    • Ethernet communication port (100Mbps)
    • Micro SD card slot (supports max. 32GB)
    • Mini-USB programming port
  • System features:
    • System diagnosis / status light / online editing and debug functions
    • PLC Link automatic data exchange function
    • MODBUS RTU/ASCII, MODBUS TCP
    • EtherNet/IP:
      • Scanner & Adapter mode
      • Supports I/O connection & explicit message
      • Connections: TCP = 128; CIP = 256
      • RPI: 1~1,000ms
      • 250 words / connection
    • LD/SFC/FBD/IL/ST languages
    • 256 interrupts (Timed/IO/External/Low voltage/Communication)
    • Redundant mode only supports timed interrupt
    • 2048 timers and counters
    • No battery required
    • RTC function (max. 30 days after power off)
    • NTP network time correction function
    • WEB/E-mail/IP Filter function
  • Redundant system:
    • CPU switch-over time: 20ms
    • Built-in sync. module
