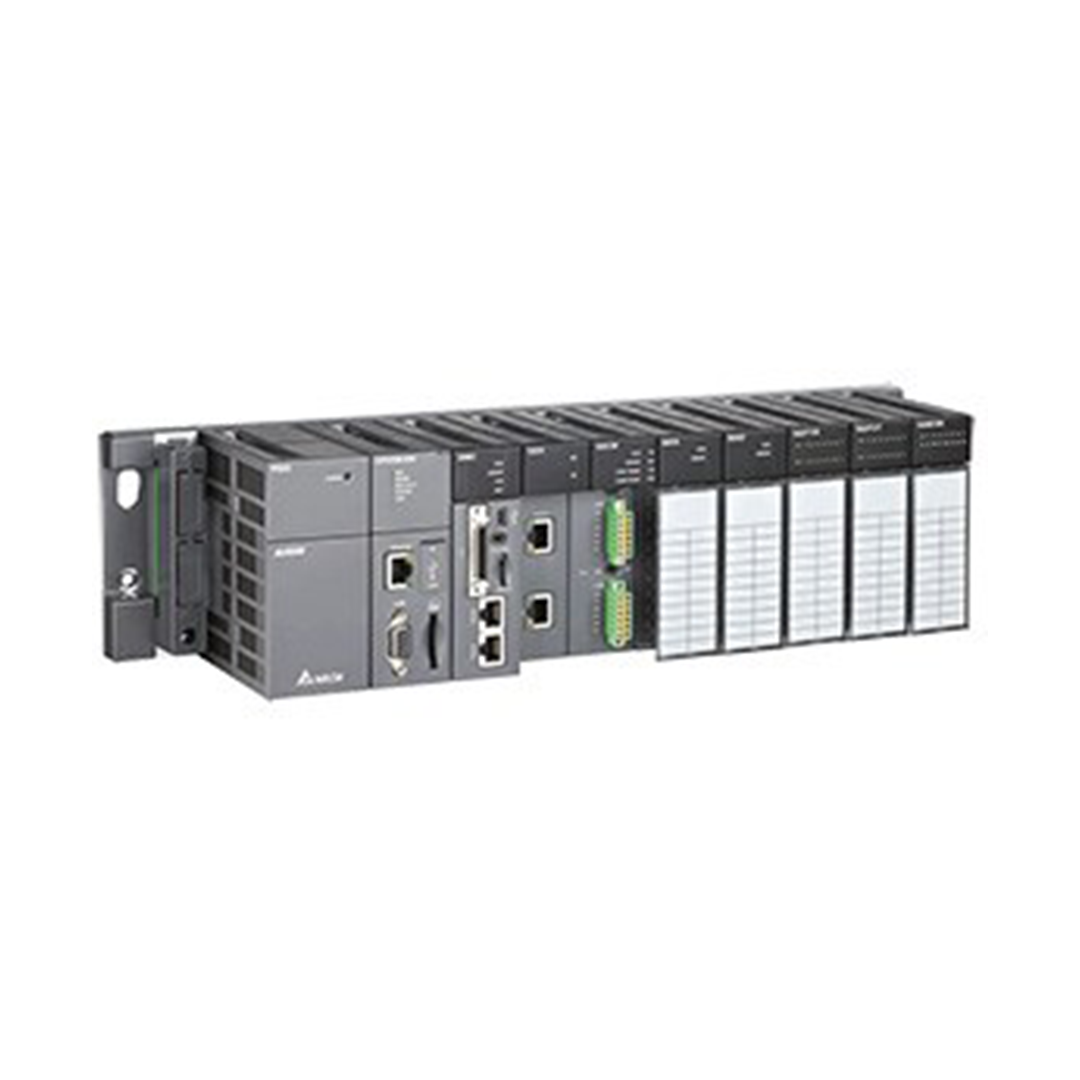

AH Series Standard CPU

AH Series Standard CPU

AH Series Standard CPU

The AH Series Standard CPU is a high-performance 32-bit processor designed for industrial applications. It offers excellent program execution speed, with an LD instruction execution time of just 0.02?s. The CPU supports up to 12 axes or 4 groups of 3-axis interpolation synchronously at 1ms, making it ideal for precise motion control tasks. Its modularized hardware structure, combined with highly integrated software, provides enhanced flexibility, excellent maintainability with hot-swapping, and a graphical interface supporting multiple programming languages. Ideal for large-scale industrial machines and complex processing applications.

Whats App
Click here

Additional Information:

Features & Benefits
  • Modularized Hardware Structure, Highly Integrated Software
    • Highly integrated software ISP Soft: Graphical Interface with 5 programming languages
    • Enhanced flexibility: Max. 100m between 2 local extension racks
    • Improved maintainability: Hot-swapping function keeps the system running
  • Applications
    • Large Scale Industrial Machines
    • The AH500 supports excellent motion control functions, including:
      • 3-axis linear interpolation
      • 2-axis arc interpolation
      • 3-axis helical interpolation
    • Capable of controlling up to 12 axes or 4 groups of 3-axis interpolation synchronously at 1ms through EtherCAT motion control network
    • Satisfies requirements for complex processing or precise motion control
    • Effective for applications such as building material processors, warp knitting machines, and food packaging machines
Specifications
  • Utilizes 32-bit processor
  • Excellent program execution speed: LD instruction execution speed 0.02?s
  • Max. I/O points:
    • DIO: Max. 4,352 points
    • AIO: Max. 544 channels
    • RIO: >100,000 points
  • Program capacity: Max. 384k steps (1.5MB)
  • Data register (D+L): 256k words
  • CPU built-in with fully isolated RS-232/422/485, Mini USB, Ethernet, full-size standard SD (standard CPU) / SDHC (advanced CPU) card slot
  • Abundant selection of DIO modules, AIO modules, temperature control modules, network modules, pulse-train modules, and EtherCAT motion control modules
