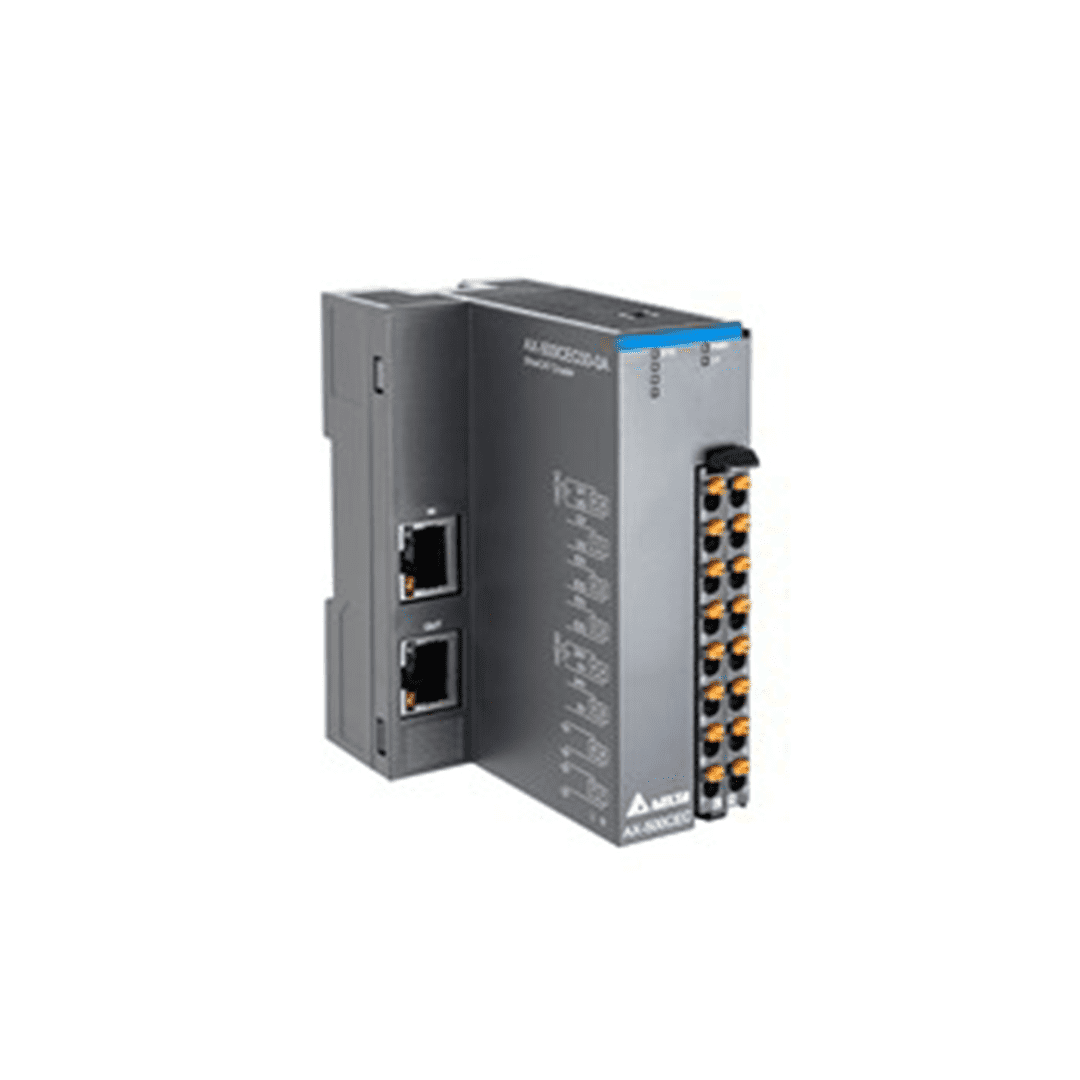

AX-5 Series Couplers
AX-5 Series Couplers
The AX-5 Series Couplers provide seamless integration for EtherCAT and PROFINET protocols, offering efficient connectivity with spring-clamp terminal blocks. With a 24 VDC input and robust power handling up to 240 W, these couplers support high-performance applications, ensuring reliable and scalable I/O power distribution. Designed for versatility, they are ideal for various industrial automation needs.
Additional Information:
- Product Introduction
- Features & Benefits
- Supports EtherCAT and PROFINET remote IOs (also suitable for 3rd party CPUs)
- Features & Benefits
- Applications
- Industrial robotics
- Woodworking
- Printing
- Packaging
- Electrical assembly
- And more
| Specifications | AX-5 Coupler | |
|---|---|---|
| Protocol | EtherCAT | PROFINET |
| External connectors | One spring-clamp terminal block (16 terminals) | |
| Unit power input voltage/power | 24 VDC (-15% ~ 20%) / 16 W | 24 VDC (-15% ~ 20%) / 20 W |
| I/O power input voltage/power | 24 VDC (-15%~20%) / under 240 W, depending on external power output | |
| Max. unit power supply | 2 A (10 W) | |
| Max. I/O power supply | Under 10 A (240 W), depending on external power output | |
| Current capacity for spring-clamp terminal block | Less than 5 A per terminal | |
| Max. power consumption (UV/UG) | 50 mA (1.2 W) | 200 mA (4.8 W) |
| Model | AX-500CEC00-0A | AX-500CPN00-0A |
