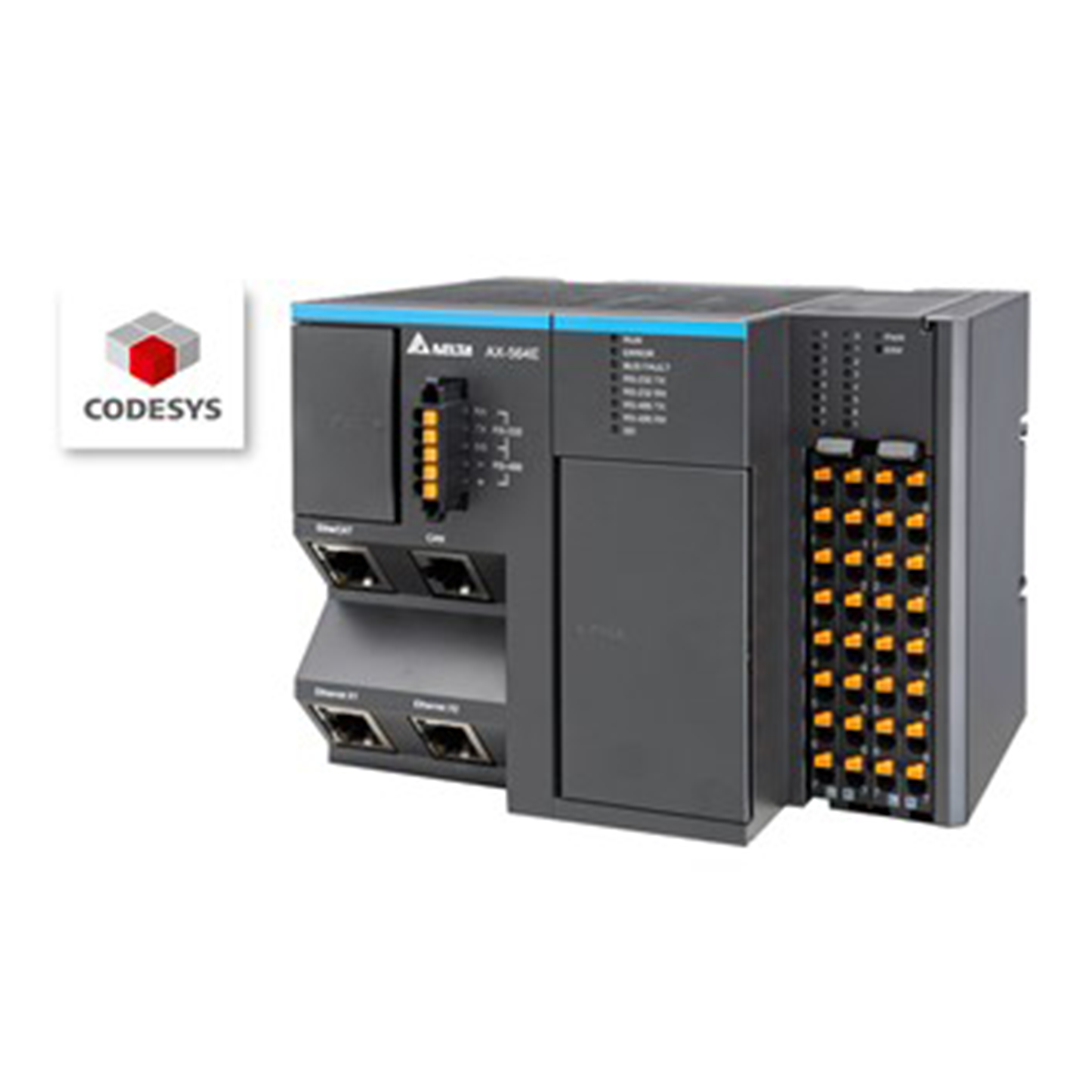

The AX-5 Series Standard CPU is a high-performance controller designed for industrial automation, featuring compatibility with EtherCAT and PROFINET protocols. It offers ultra-fast execution speeds, extensive I/O options, and support for up to 128 axes of motion control. With built-in communication interfaces like Ethernet, CANopen, and RS-485, it ensures seamless integration and connectivity for demanding applications across robotics, packaging, woodworking, and more.

Whats App
Click here

Additional Information:

  • Supports Ether CAT and DIA Designer-AX programming software and provides high-speed I/O bus and IoT applications
  • Uses a 4-core processor to balance motion control and communication performance
  • Offers Ether CAT motion control with various axes options
  • The shortest execution time for basic instructions is 1 ns; Min. synchronization time can reach 32 axes / 1 ms
  • Supports the new generation of AX-5 Series ultra-thin power supplies, digital I/O, analog I/O, and temperature expansion modules
  • Adopts a 100 Mbps Ether CAT high-speed I/O system bus
  • Built-in communication protocols include Ether CAT, CAN open, PROFINET, Modbus, Ether Net/IP, OPCUA server, MQTT, FTP, and more
  • Provides USB Type-A interface for connecting third-party Wi-Fi or Bluetooth adapters
  • Complies with IEC 61131-3 standards with Soft PLC and Soft Motion development environment

Applications

  • Industrial robotics
  • Woodworking
  • Printing
  • Packaging
  • Electrical assembly
  • And more

Specifications:

Specification Details
Software DIA Designer-AX
Execution time 1 ns (LD); 7 ns (LREAL)
Program capacity 64 MB
Built-in communication port Ethernet x 2 (independent IP), CAN open x 1, Ether CAT x 1, RS-485 x 1, RS-232 x 1, USB-Type A x 1, USB-Type C x 1, Micro SD (SDXC, 64 GB max/UHS-I)
Max. number of slaves 4,096
Built-in IO 12DI (80KHz) + 4 DO (80KHz)
Max. number of pulse out axes 2
Max. number of axes for linear interpolation axis control 6
Max. number of axes for arc interpolation axis control 2
Max. number of axes for helical interpolation axis control 3
Model AX-516EB0MB1T/P (Max. 32 axes, synchronous time: 16 axes @ 1ms)
AX-532EB0MB1T/P (Max. 64 axes, synchronous time: 32 axes @ 1ms)
AX-564EB0MB1T/P (Max. 128 axes, synchronous time: 64 axes @ 2ms)
AX-564ELB0MB1T/P (Max. 80 axes, synchronous time: 8 axes @ 0.5ms)
