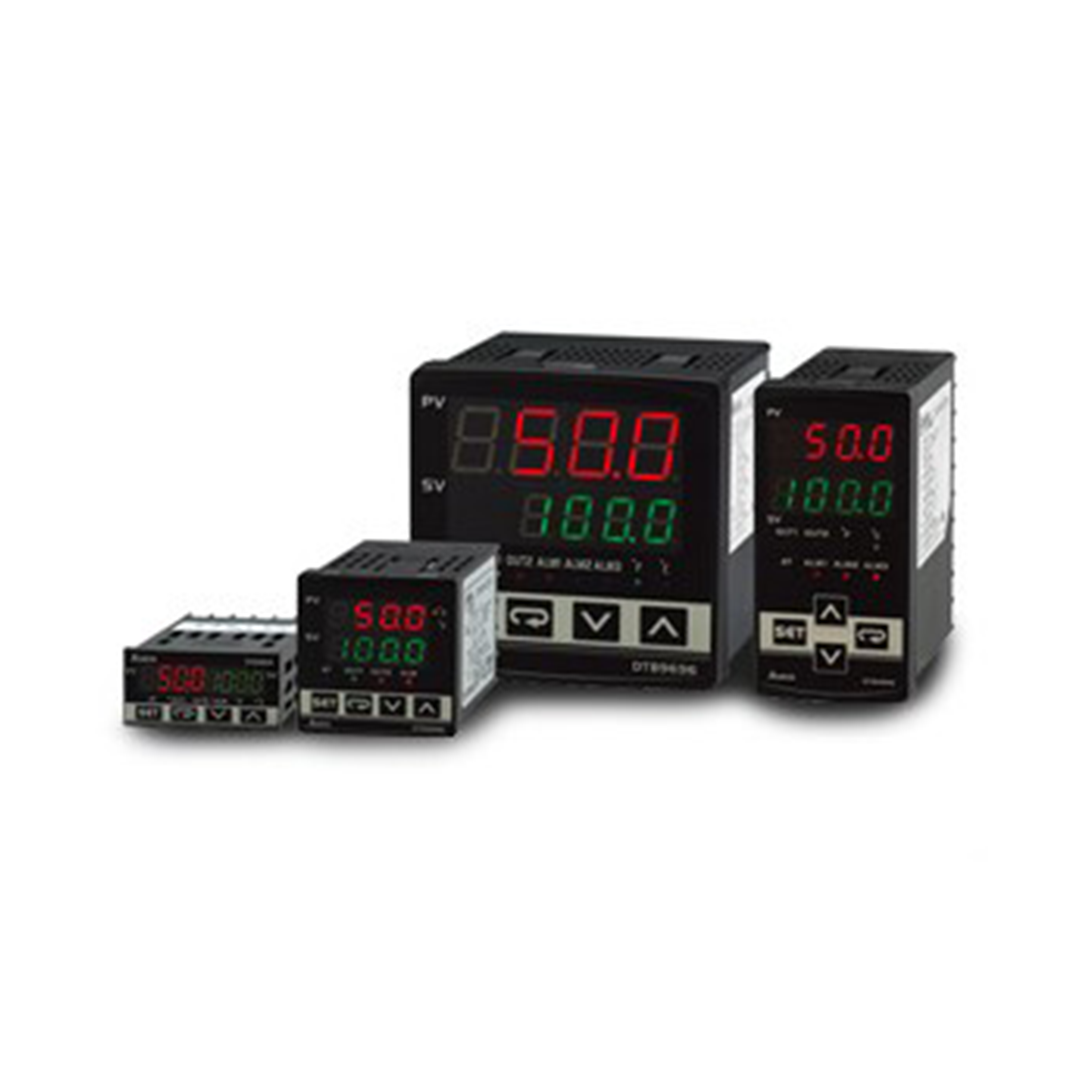

Product Introduction

This Temperature Controller is designed for efficient and precise temperature regulation across various industrial applications. It offers advanced features such as programmable control modes, alarm outputs, and communication interfaces, making it ideal for a wide range of control needs in HVAC, heating systems, and more.

Applications

• Blower coil pipe in central air-conditioning systems.
• Heating systems.

Specifications

• PID / On-Off / Manual input / Programmable control modes for flexible operation.
• 2 groups of outputs for auto-tuning 2 groups of PID parameters.
• Compatible with various thermocouples (B, E, J, K, L, N, R, S, T, U, TXK), platinum RTD (PT100, JPT100), analog current (0 ~ 20mA, 4 ~ 20mA), and linear voltage (0 ~ 5V, 0 ~ 10V).
• Supports up to 3 groups of alarm switches with 18 alarm modes each for enhanced control and safety.
• Temperature display in either Celsius or Fahrenheit for user preference.
• 2 key lock functions: 1) lock all keys; 2) lock only function keys, keeping up/down keys operational.
• Panel sizes available: 4824, 4848, 4896, and 9696.
• Built-in RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400) for easy integration with other devices.
• Sampling time: 0.4 seconds for thermocouple/platinum RTD and 0.15 seconds for analog input.
• Programmable logic controller allows up to 64 sets of temperature and control time settings.
• Optional CT function for wire breaking detection with an alarm output.
• Optional Event function, allowing the switching between two different set temperatures using PLC or switches.
• Optional Valve function to adjust the open/close of the valve based on the output value.
