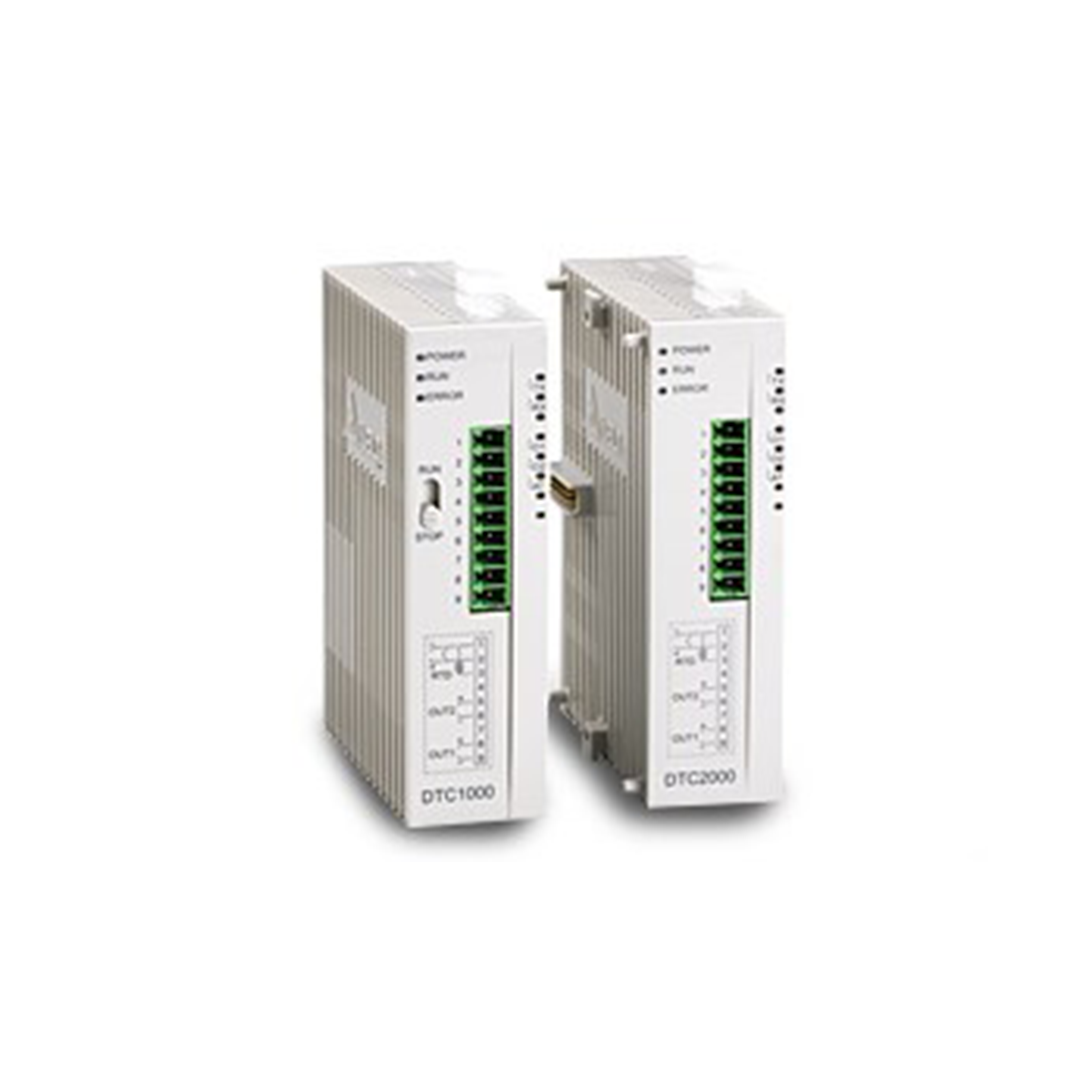

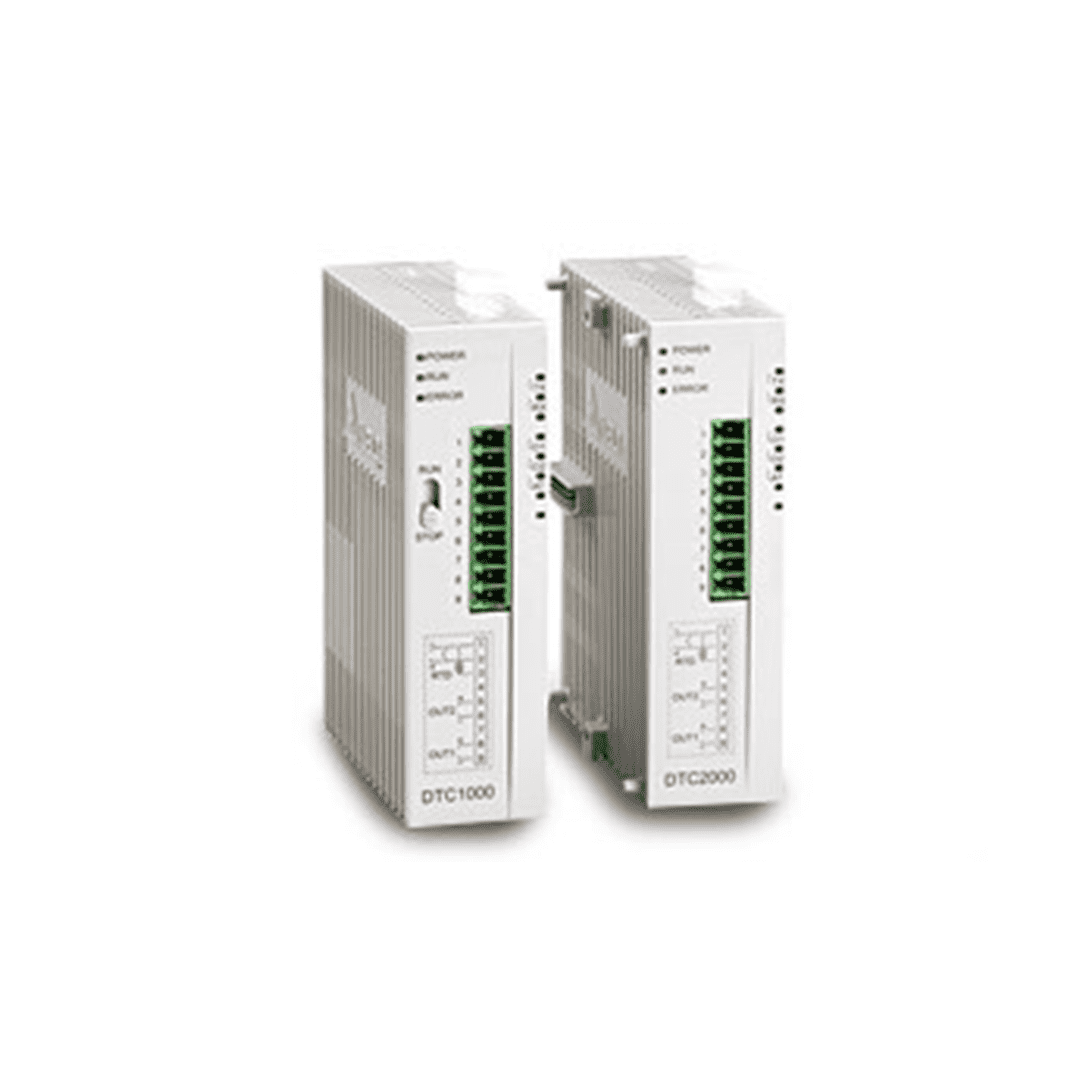

DTC Series
The modulized DTC series saves wiring and the parallel modules are able to monitor many temperature points. The flexible output methods enable the user to plan the output modes according to the actual needs. The built-in password protection prevents improper operation or damages caused by the operation staff.
Additional Information:
Product Introduction
This Temperature Controller is designed for efficient and reliable temperature regulation across various industrial applications. With multiple control modes and robust features, it ensures optimal performance and adaptability in demanding environments.
Applications
- Blower coil pipe in central air-conditioning systems.
- Heating systems.
Specifications
- PID / On-Off / Manual input / Programmable control modes for flexible operation.
- 2 groups of outputs for auto-tuning PID parameters.
- Compatible with various thermocouples (B, E, J, K, L, N, R, S, T, U, TXK), platinum RTD (PT100, JPT100), analog current (0 ~ 20mA, 4 ~ 20mA), and linear voltage (0 ~ 5V, 0 ~ 10V).
- Supports a maximum of 2 groups of alarm switches with 12 alarm modes each for enhanced control and safety.
- LED status display for easy monitoring.
- Selectable Celsius or Fahrenheit temperature display for user preference.
- Built-in RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400) for easy integration with other devices.
- Fast sampling time: 0.4 seconds for thermocouple/platinum RTD, and 0.15 seconds for analog input.
- Programmable logic controller allows up to 64 sets of temperature and control time settings.
- Features 3 levels of password protection for security, wire saving capabilities, synchronous communication protocol settings, and ID auto-setting.
