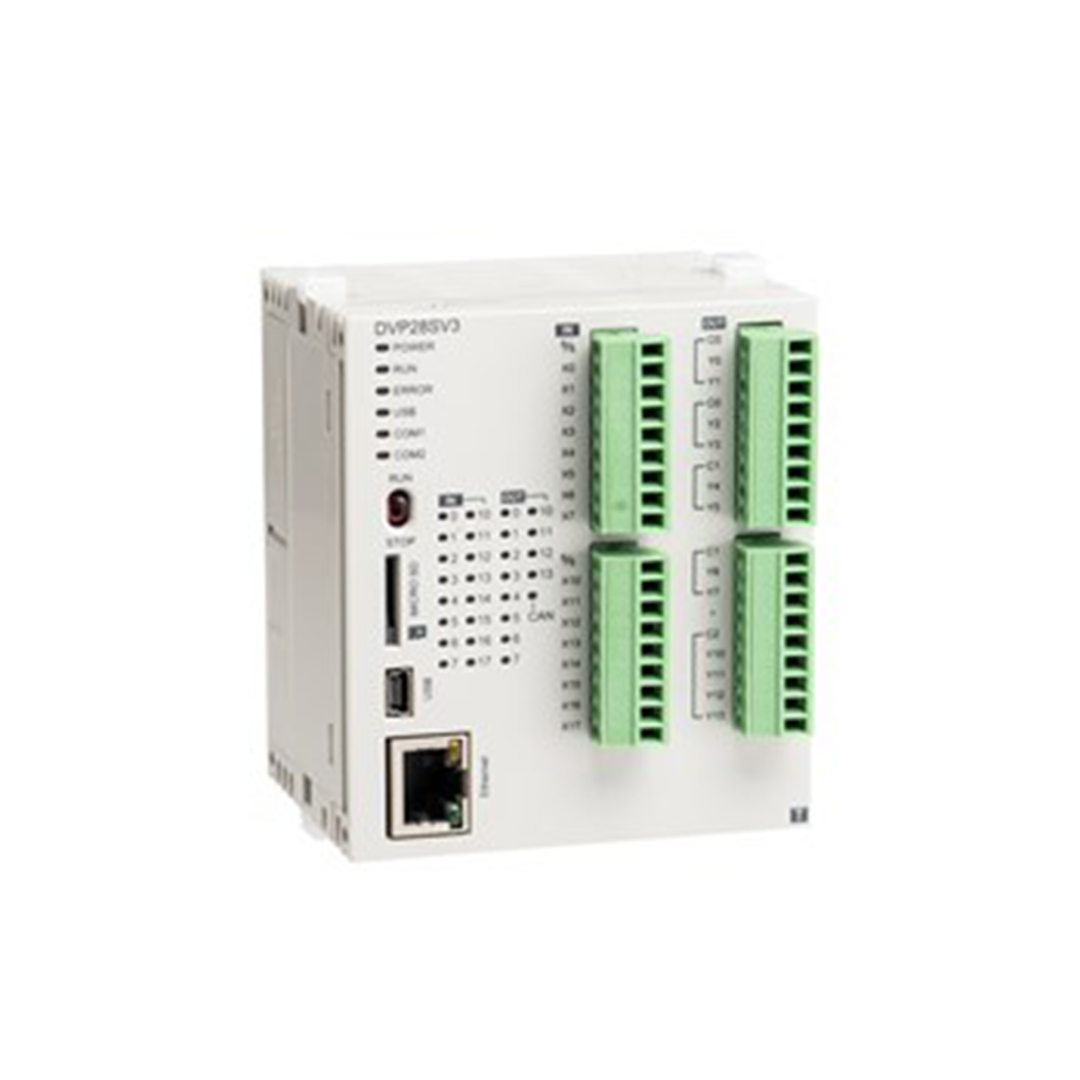

DVP SV3 Series

DVP SV3 Series

DVP SV3 Series

To fulfill the market demands for value-added, compact versatile programmable logic controllers, Delta ?s third generation DVP PLCs SV3 series adopts the AS series PLC?s 32-bit high-speed processor and provides a user-friendly programming interface, multiple built-in communication ports, and expanded program capacity. Compared with the second generation, the SV3 series features a larger program capacity, enhanced information security, and better interoperability.

Whats App
Click here

Additional Information:

Features & Benefits
  • Outstanding execution speed: 25 ns for basic instructions (with the AS Series PLC processor).
  • Larger program capacity: 64K steps.
  • Max. I/O: 512 points (256 inputs + 256 outputs), including its built-in 16 inputs and 16 outputs.
  • Both left and right side expansion up to 8 modules per side.
  • New programming software: DIA Designer enhances security and system integration.
  • Built-in RS-485 ports (x2), CAN port (x1), and Micro SD card interface.
  • Supports Ether Net/IP (Scanner/Adapter), Modbus TCP, CAN open DS301.
Applications
  • Positioning control.
  • Material cutting machines (high-speed servo control).
  • Crane main hoists.
  • Material clips controlled by servos.
  • Optoelectronics equipment.
  • Semiconductors.
  • Textiles.
  • HVAC systems.
Specification Details
Software DIA Designer
Execution Speed 25 ns (AS core)
Program Capacity 64K steps
Built-in 24VDC powered CPU module, Ethernet port x 1, RS-485 ports x 2, USB port x 1, CAN port x 1, Micro SD interface x 1, 28 I/O, removable terminal blocks
Protocols and Max. Axes – CANO pen DS301 (controls up to 64 slaves)
– Delta mode: controls 8 Delta servos and 8 Delta motor drives
Max. I/O Points 512 points (256 inputs + 256 outputs, including its built-in 16 inputs and 16 outputs), both left and right side expansion up to 8 modules per side
Built-in I/O Points 28: 16DI + 12DO
Model DVP28SV311T (NPN output)
DVP28SV311R (Relay output)
DVP28SV311S (PNP output)
