EVB Series

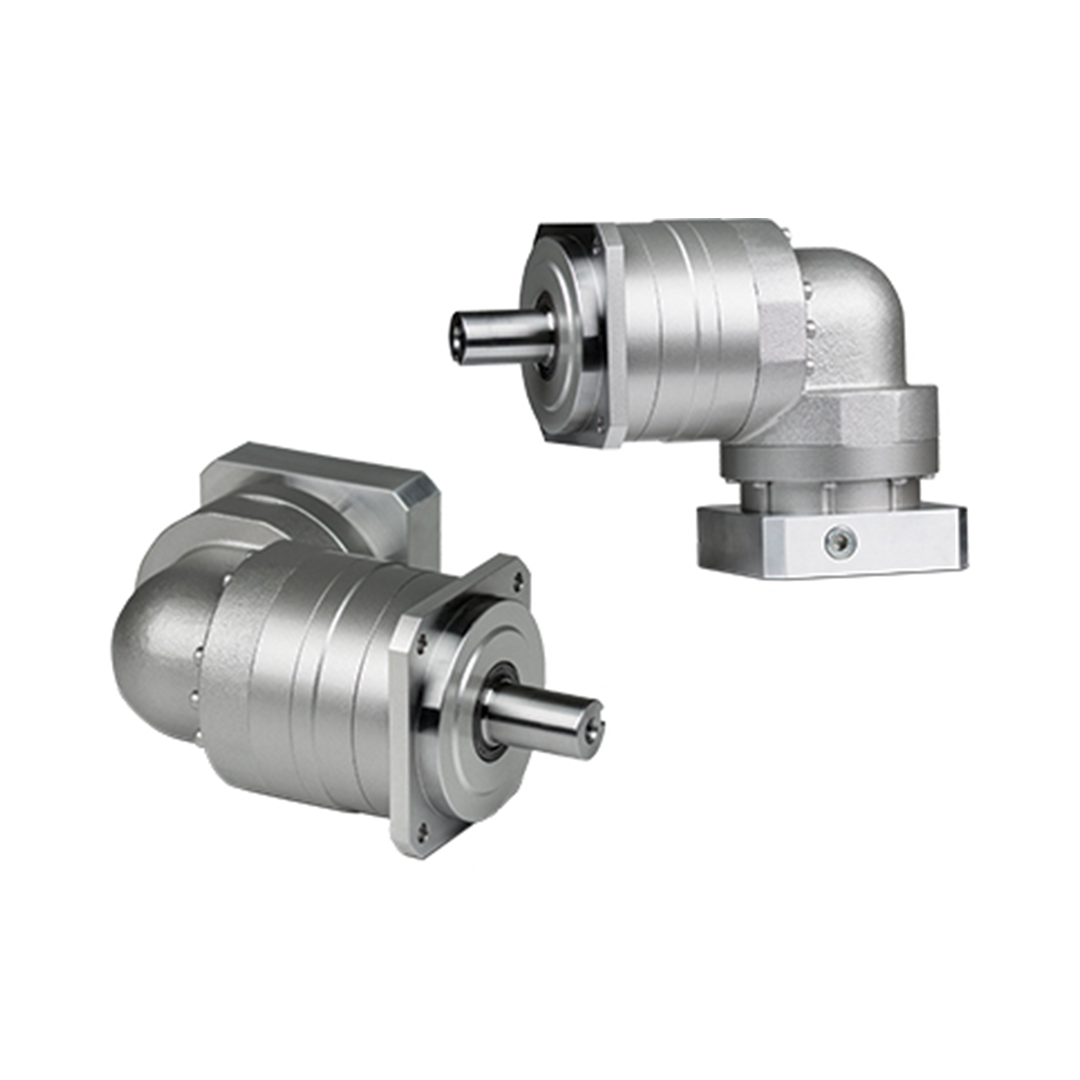

An excellent choice for applications requiring high positional accuracy and dynamic performance. The EVB is a ?4 arc-min gearbox that offers a right angle design with a through hole mounting style, making it compact and easy to assemble onto various equipment. This product is an ideal fit for various belt drive and actuator applications found throughout the packaging and assembly cell automation markets.
Various standard wash down and food grade options are available, making the EVB an attractive choice for the toughest environments. We offer the broadest selection of frame sizes and ratios, with immediate availability on most configurations. Industry standard mounting dimensions allow the EVB to be employed in legacy equipment designs, saving our customers time and money.
Available Frame Sizes: 060 | 090 | 115 | 140 | 180 | 220
Additional Information:
- Right Angle Bevel Gear Configuration: Allows the motor to be mounted at a 90-degree position from the gearbox, saving valuable space.
- Carburized Helical Gears: Featuring a proprietary secondary finishing process for higher accuracy and smooth, quiet operation. The gears have 40% more tooth surface area compared to the industry standard for enhanced performance.
- One-Piece Output Shaft and Planet Carrier: Designed with two bearings straddling the planet gears, offering higher stiffness, torque capacity, and a greater safety factor, while ensuring guaranteed alignment of gearing.
- Uncaged Needle Roller Bearings: Provide excellent torque density and torsional rigidity, with a 43% larger bearing surface area than industry norms.
- Optimized Mounting System: Features active centering on the motor pilot diameter, ensuring precise motor alignment. The motor can be installed in any orientation to fit specific application needs.
- True Concentric Motor Shaft Clamping: The connection is optimized for your specific motor, reducing inertia for dynamic performance and balancing the system for high-speed operation.
- Ring Gear Machined Directly into the Housing: The ring gear is integrated directly into the housing, not welded or pressed in, which provides greater concentricity and eliminates speed fluctuation.
