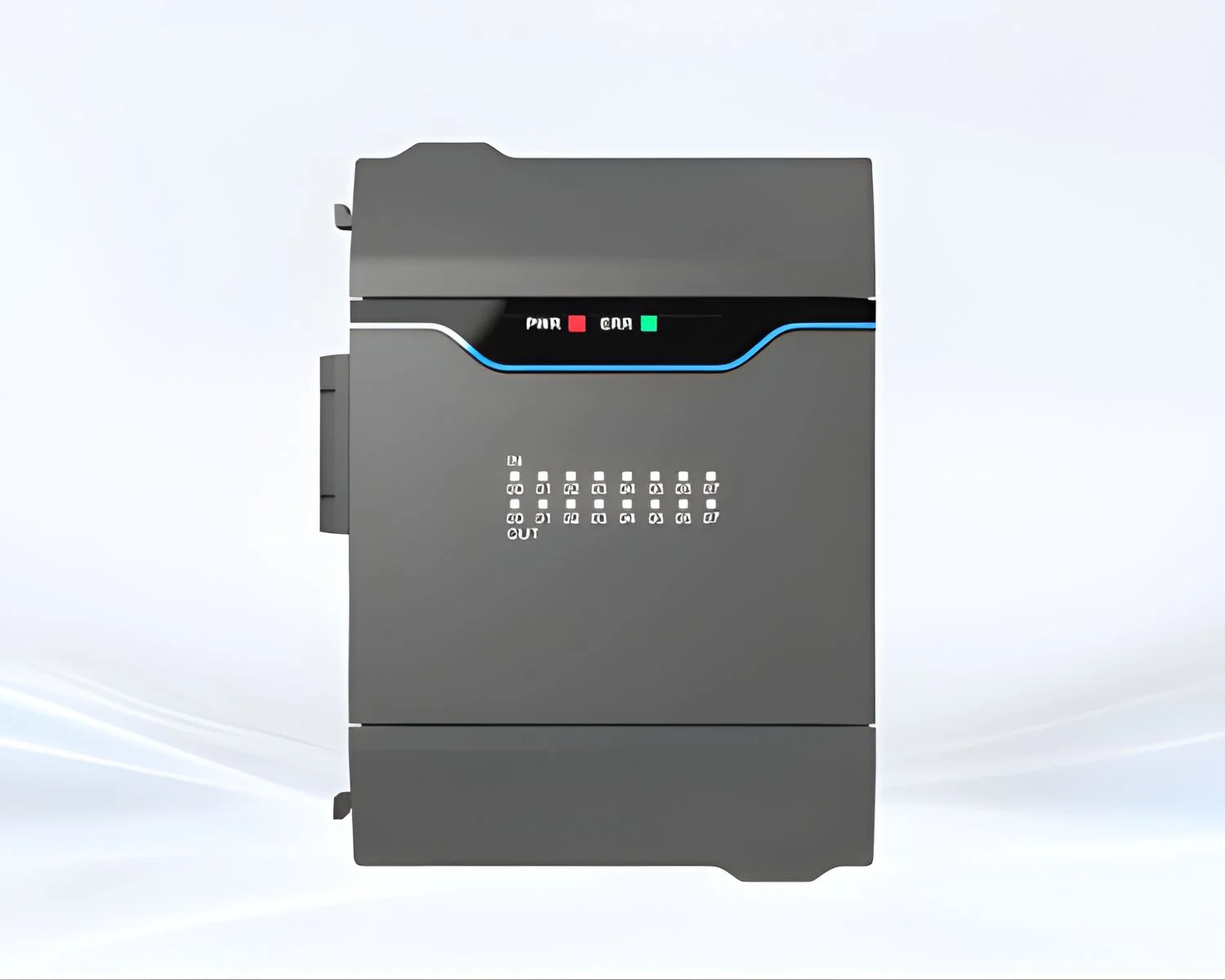

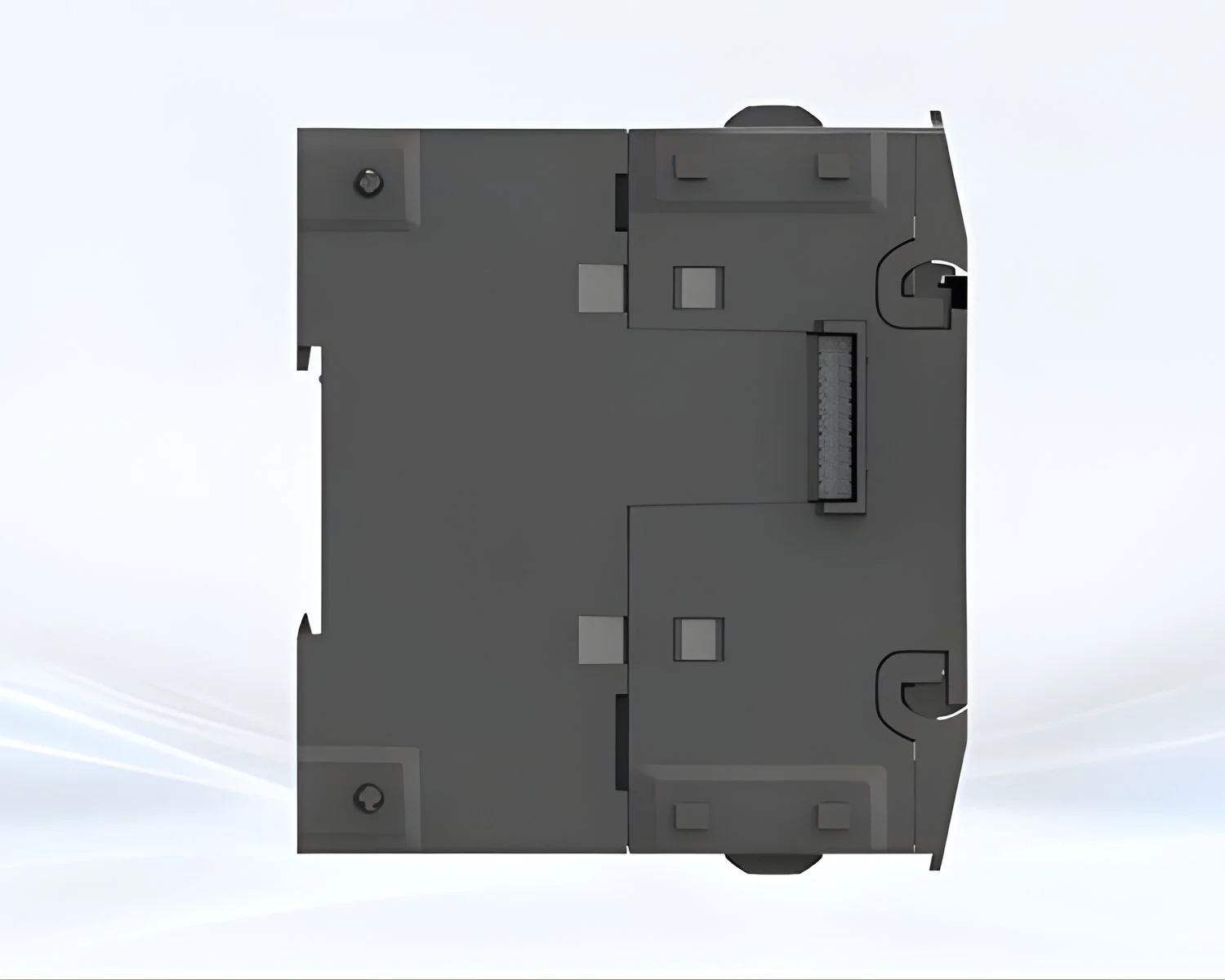

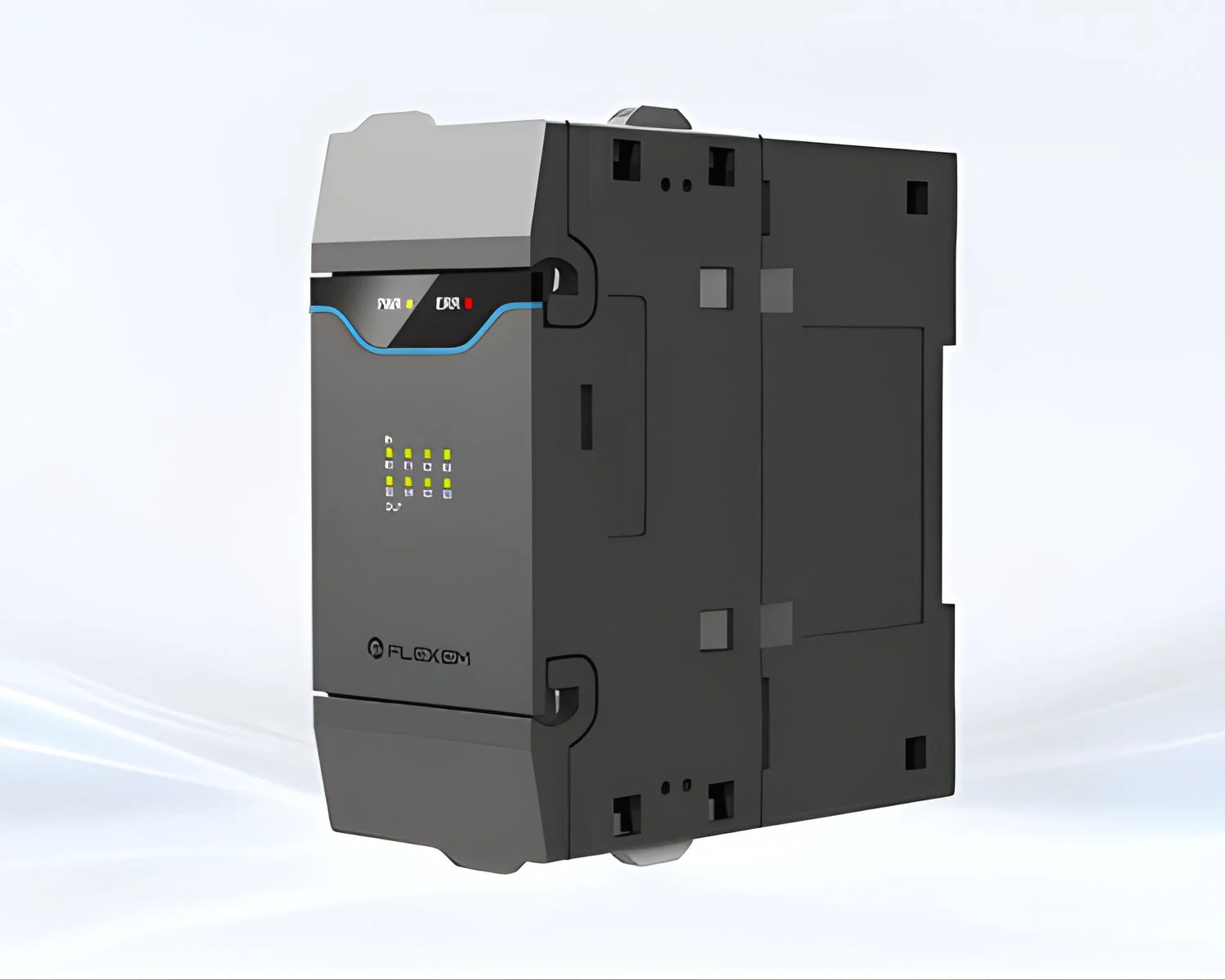

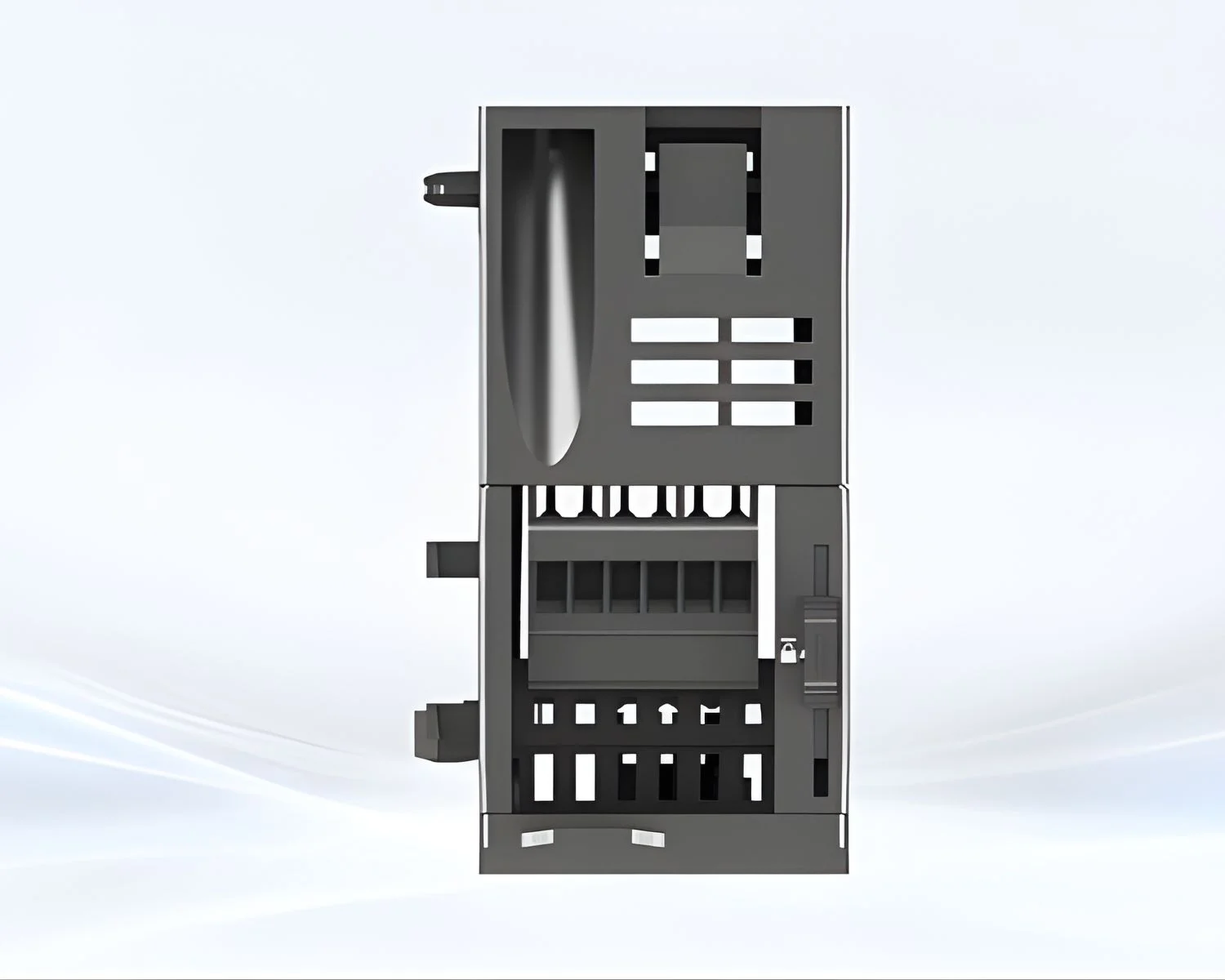

Flexem Digital Expansion Module
Flexem Digital Expansion Module
CPU Digital /Analog expansion modules. Modular combination and flexible configuration. Removable terminals. Rail/screws installation, easy and convenient.
Additional Information:
| Digital Input Expansion Module–Transistor input characteristics | ||||
| Model F5-MD* | 0800 | 1600 | 3200 | |
| Input Characterstics | 8 Point Bipolar | 16 Point Bipolar | 32 Point Bipolar | |
| Rated Voltage | 24 VDC | |||
| Input Range | 0~28.8V DC | |||
| Rated Current | 7mA | |||
| Peak value | Voltage | 30V | ||
| Current | 9mA | |||
| State | Voltage in state 1 | >15V 15~28.8V | ||
| Voltage in state 0 | <5V 0~5V | |||
| Currentin state 1 | >2.5mA | |||
| Currentin state 0 | <1.0mA | |||
| Isolation | optical coupler | |||
| Input Impedance | 3.3KΩ | |||
| Filter Time | Default 1ms,16 equally divided levels selectable from unfiltered to 100ms | |||
| Compatibility | Compatible with 2/3 wire sensors | |||
| Input Type | Source/sinking | |||
| Cable length and type | Max 100m shielded cable,50m unshielded cable | |||
| Protection(overvoltage) | 30V maximum,limited to 1 hour per dayfrequency | |||
| Wiring Structure | Removable teminal block | |||
| Dimension | Dimension A | Dimension B | Dimension C | |
| Digital Output Extension Module–Relay output characteristics | |||
| Model F5-MD* | 0008R | 0016R | |
| Output Characterstics | 8 Point | 16 Point | |
| Rated Voltage | 24VDC,220VAC | ||
| Input Range | 5V~30VDC;100VAC~250VAC | ||
| Rated Current | Maximum2A/point | ||
| Current/group(4 points) | 4A(relay output @60℃,50% derating required) | ||
| Peak value | Maximum switch voltage | 250VAC,30VDC | |
| Current/point | 5A | ||
| lsolation type | Relay coil | ||
| Maximum output frequency |
Maximum load | 0.1Hz | |
| Without load | 5Hz | ||
| Resistive load | 2A/point/24VDC/220VAC | ||
| Mechanical life | Minimum:5,000,000 times | ||
| Electrical Contact life | Minimum:100,000 times | ||
| Short Circuit Protection | None | ||
| Wiring Structure | Removable terminal block | ||
| Dimension | Dimension A | Dimension B | |
| Digital Output Extension Module–Transistor output characteristics | |||
| Model F5-MD* | 0008N(P) | 0016N(P) | 0032N(P) |
| Output Characterstics | 8 Point | 16 Point | 32 Point |
| Output Type | NPN(PNP) | ||
| Rated Voltage | 24VDC | ||
| Voltage Range | 19.2~28.8VDC | ||
| Rated Current | 0.5A | ||
| Current/group | 0.5A Output point of each group | ||
| Voltage/drop | Maximum1VDC | ||
| Leakage current when turned off | <5μA | ||
| Maximum power of incandescent lamp | 2.4W | ||
| Derating | None | ||
| Start Time | Maximum 34μs | ||
| Turn-off time | Maximum 250μs | ||
| Maximum output frequency | 1KHz | ||
| Short circuit protection | Available | ||
| Peak short-circuit output current | 1.3A | ||
| Self-recovery after short circuit or overload | Per10ms | ||
| Clamping Voltage | Maximum39VDC,±1V | ||
| lsolation | 500V AC between output and internal logic | ||
| Type of electrical channel | Unshielded | ||
| Cable length | Unshielded 50m | ||
| Wiring Structure | Removable terminal block | ||
| Dimension | Dimension A | Dimension B | Dimension C |
| Digital Mixed Extension Module | |||||||
| Model F5-MD* | 0404N(P) | 0404R | 0808N(P) | 0808R | 1616N | 1616R | |
| Input Characteristics | 4 Point Bipolar | 8 Point Bipolar | 16 Point Bipolar | ||||
| Rated Voltage | 24 V DC | ||||||
| Input Range | 0~28.8 V DC | ||||||
| Rated Current | 7mA | ||||||
| Peak value | Voltage | 30V | |||||
| Current | 9mA | ||||||
| State | Voltage in state 1 | >15V 15~28.8V | |||||
| Voltage in state 0 | <5V 0~5V | ||||||
| Currentin state 1 | >2.5mA | ||||||
| Currentin state 0 | <1.0mA | ||||||
| Isolation | ptocoupler | ||||||
| Input Impedance | 3.3KΩ | ||||||
| Filter Time | Default 1ms,16 equally divided levels selectable from unfiltered to 100ms | ||||||
| Compatibility | Compatible with 2/3 wire sensors | ||||||
| Input Type | Source/sinking | ||||||
| Cable length and type | Max 100m shielded cable,50m unshielded cable | ||||||
| Protection(overvoltage) | 30V maximum,limited to 1 hour per dayfrequency | ||||||
| Transistor output characteristics | 4 Point | – | 8 Point | – | 16 Point | – | |
| Rated Voltage | 24 VDC | ||||||
| Voltage Range | 19.2~28.8VDC | ||||||
| Rated Current | 0.5A | ||||||
| Current/group | 0.5A*Output point of each group | ||||||
| Voltage drop | Maximum 1VDC | ||||||
| Leakage current when turned off | <5μA | ||||||
| Maximum power of incandescent lamp | 2.4W | ||||||
| Derating | None | ||||||
| Start Time | Maximum 34μs | ||||||
| Turn-off time | Maximum 250μs | ||||||
| Maximum output frequency | 1KHz | ||||||
| Short circuit protection | Available | ||||||
| Peak short-circuit output current | 1.3A | ||||||
| Self-recovery after short circuit or overload | Per10ms | ||||||
| Clamping Voltage | Maximum39VDC,±1V | ||||||
| Isolation | 500V AC between output and internal logic | ||||||
| Type of electrical channel | Unshielded | ||||||
| Cable length | Unshielded 50m | ||||||
| Relay output characteristics | – | 4 Point | – | 8 Point | – | 16 Point | |
| Rated Voltage | 24VDC,220VAC | ||||||
| Input Range | 5V-30VDC;100VAC~250VAC | ||||||
| Rated Current | Maximum2A/point | ||||||
| Current/group (4 points) | 4A(relay output @60°℃,50%derating required) | ||||||
| Peak value | Maximum switch voltage | 250VAC,30VDC | |||||
| Current/point | 5A | ||||||
| Isolation type | Relay coil | ||||||
| Maximum output frequency |
Maximum load | 0.1Hz | |||||
| Without load | 5Hz | ||||||
| Resistive load | 2A/point 24VDC/220VAC | ||||||
| Mechanical life | Minimum 5,000,000 times | ||||||
| Electrical contact life | Minimum100,000 times | ||||||
| Short circuit protecion | None | ||||||
| Wiring structure | Removable terminal block | ||||||
| Dimension | Dimension A | Dimension B | Dimension C | ||||
