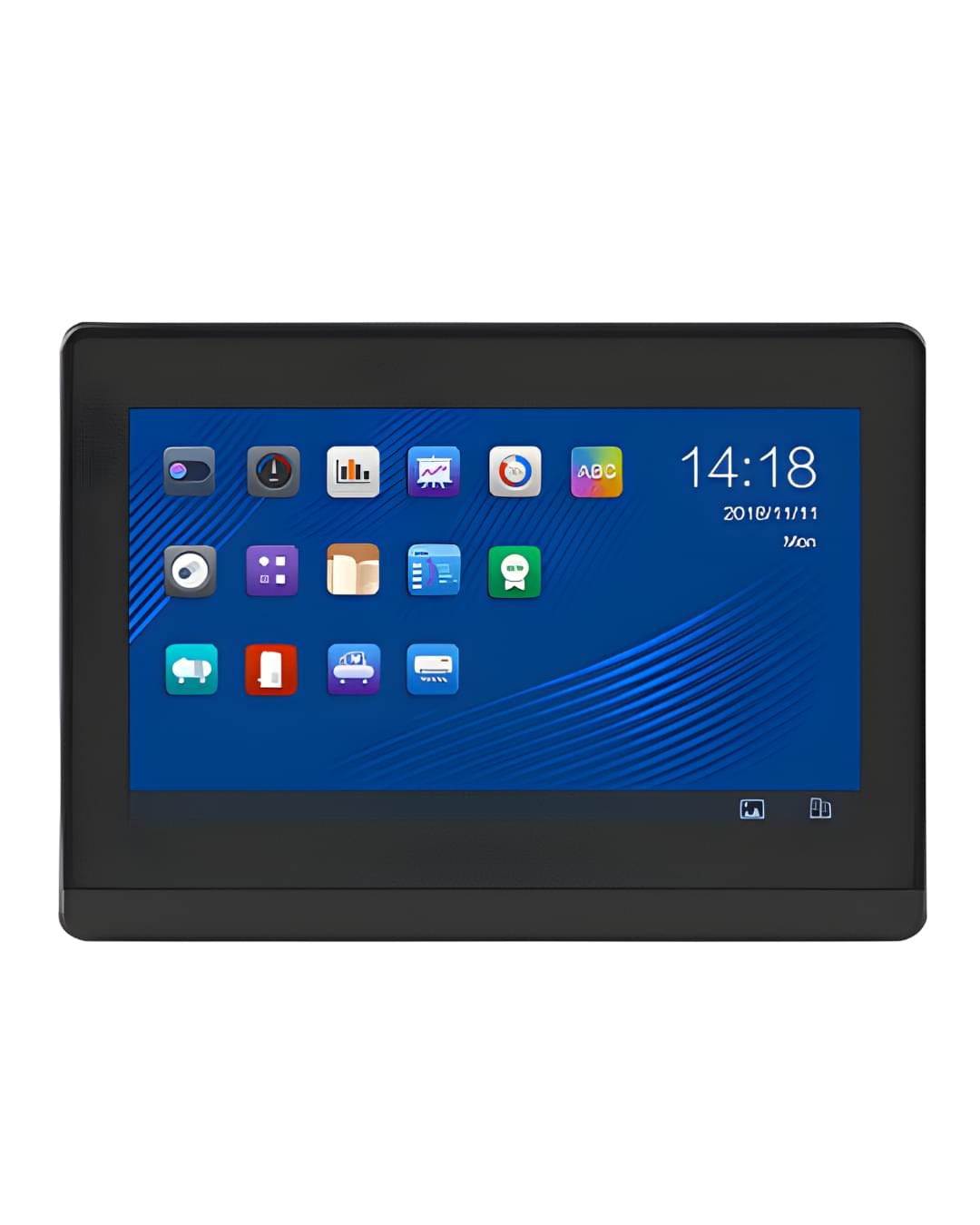

Flexem F010, 9.7″ Capacitive
Flexem F010, 9.7″ Capacitive
Flexem F010 capacitive touchscreen, featuring a 9.7″ multi-touch capacitive touchscreen, high-definition high-brightness full-view display, 1024×768 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, multi-touch gestures supported, provides a sleek and smoother touch-and-control solution.
Additional Information:
| Category | Specification |
|---|---|
| Model | F010 |
| Display | 9.7″ 4:3 TFT LCD |
| Viewing Angles (T/B/L/R) | 85° / 85° / 85° / 85° |
| Resolution | 1024 × 768 |
| Colors | 16-bit |
| Brightness | 350 cd/m² |
| Backlight | LED |
| LCD Lifetime | 50,000 hours |
| Touch Panel | Glass + Glass Projective Multi-touch Capacitive Touchscreen |
| CPU | 1GHz, Dual Core Cortex-A7 |
| Storage | 4GB eMMC + 256MB DDR3 |
| RTC | Built-in |
| SD Card | NA |
| Ethernet Port | 1 × RJ45 (10/100 Mbps) |
| USB Ports | 1 × Micro USB, 1 × USB Type-A 2.0 |
| Download Method | USB Slave / Flash Drive / Ethernet |
| Serial Ports | COM1: RS232 / RS485 / RS422COM2 / COM4: RS485COM3: RS232 |
| Rated Power | ≤ 8W |
| Input Voltage | DC 24V (Working Range: DC 9V–28V) |
| Power Protection | Lightning Surge Protection |
| Power Interruption Tolerance | < 3 ms |
| Certification | CE, RoHS |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| UV Resistance | Not suitable for high UV environments |
| Environmental Humidity | 10–90% RH (Non-condensing) |
| Vibration Endurance | 10–25 Hz (X, Y, Z direction 2G / 30 minutes) |
| Cooling Mode | Natural Cooling |
| Protection Level | Front: IP60, Rear: IP20 |
| Enclosure Material | Zinc Alloy + Engineering Plastic |
| Cutout Size | 230 mm × 180 mm |
| Dimensions | 247 mm × 197 mm × 31.5 mm |
| Weight | Approx. 1150 g |
