Flexem F110, 10.1″ Capacitive
Flexem F110, 10.1″ Capacitive

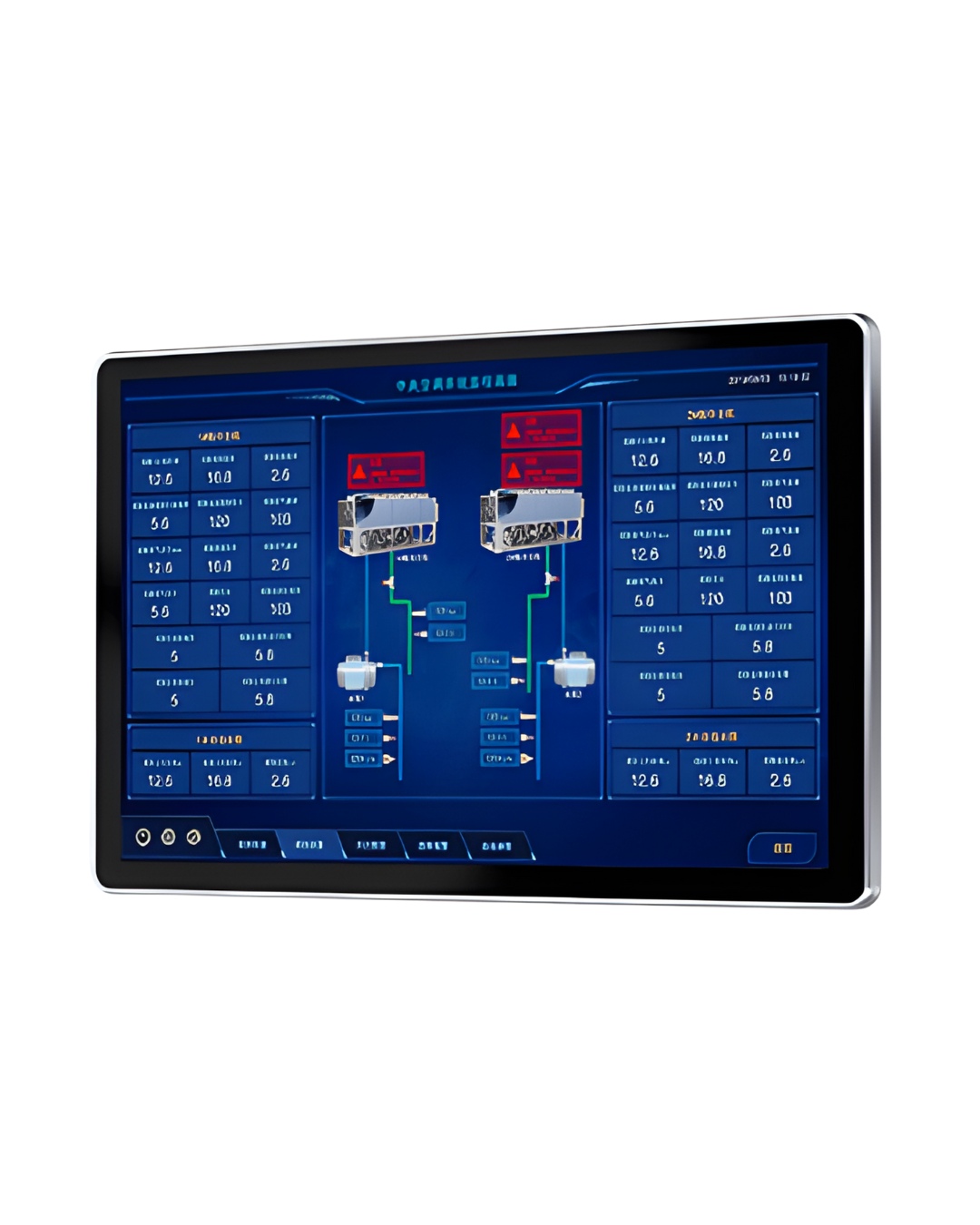

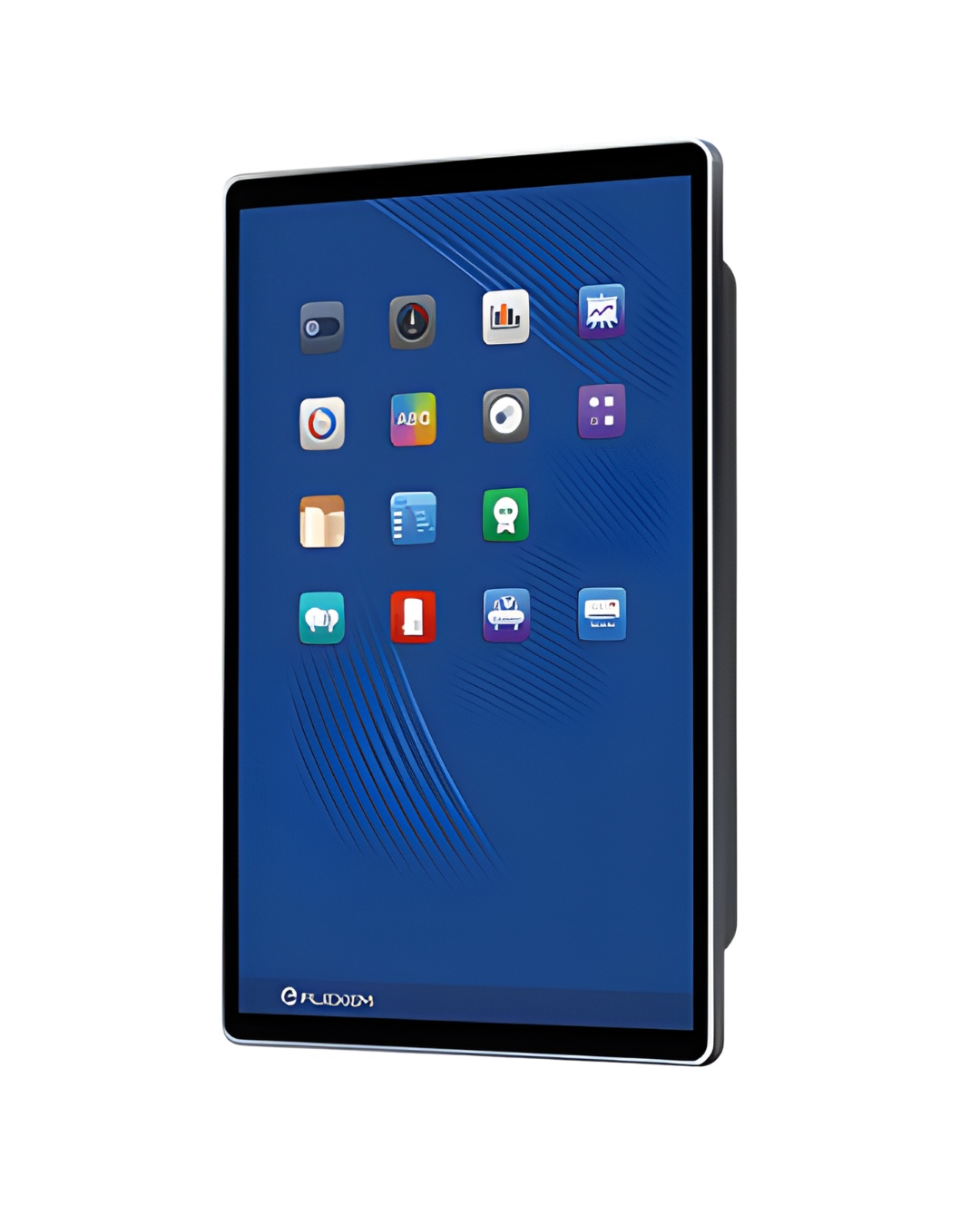

Flexem F110 high-performance capacitive touchscreen, featuring a 10.1″ multi-touch capacitive touchscreen, high-definition high-brightness full-view display, 800×1280 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, supports horizontal or vertical screen usage, built-in IoT and bluetooth function, provides a high-performance remote touch-and-control solution.
Additional Information:
| Category | Specification |
|---|---|
| Model | F110 |
| Display | 10.1″ 16:10 TFT LCD |
| Viewing Angles (T/B/L/R) | 85° / 85° / 85° / 85° |
| Resolution | 800 × 1280 |
| Colors | 24-bit |
| Brightness | 350 cd/m² |
| Touch Panel | Glass + Glass Projective Multi-touch Capacitive Touchscreen |
| CPU | 1GHz, Dual Core Cortex-A7 |
| Storage | 4GB eMMC + 256MB DDR3 |
| Ethernet Port | 1 × RJ45 (10/100 Mbps) |
| USB Ports | 1 × USB Type-C 2.0, 1 × USB Type-A 2.0 |
| Download Method | USB Slave / Flash Drive / Ethernet |
| Serial Ports | COM1: RS232 / RS485 / RS422COM2: RS485COM3: RS232 |
| SD Card | NA |
| Bluetooth | Available |
| IoT Network Access | Ethernet, 4G |
| Network Frequency Band | LTE FDD: B1 / B3 / B5 / B8LTE TDD: B38 / B39 / B40 / B41 |
| VPN Passthrough | Available |
| Data Monitoring | 300 points |
| Alarm Notification | 100 points |
| Historical Data | 100 points |
| Edge Computing | 30 points |
| Network Protocol | Supports 100+ industrial device protocols |
| Management & Maintenance | Import, export, and remote update of configuration files |
| Rated Power | < 10W |
| Rated Voltage | DC 24V (Working Range: DC 9V–28V) |
| Power Protection | Lightning Surge Protection |
| Power Interruption Tolerance | < 5 ms |
| Certification | CE, RoHS |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| UV Resistance | Not suitable for high UV environments |
| Environmental Humidity | 10–90% RH (Non-condensing) |
| Vibration Endurance | 10–25 Hz (X, Y, Z direction, 2G / 30 min) |
| Protection Level | Front: IP60 (NEMA panel), Rear: IP20 |
| Enclosure Material | Zinc Alloy + Engineering Plastic |
| Cutout Size | 138 mm × 192 mm |
| Dimensions | 158 mm × 249 mm × 30 mm |
| Weight | Approx. 900 g |
