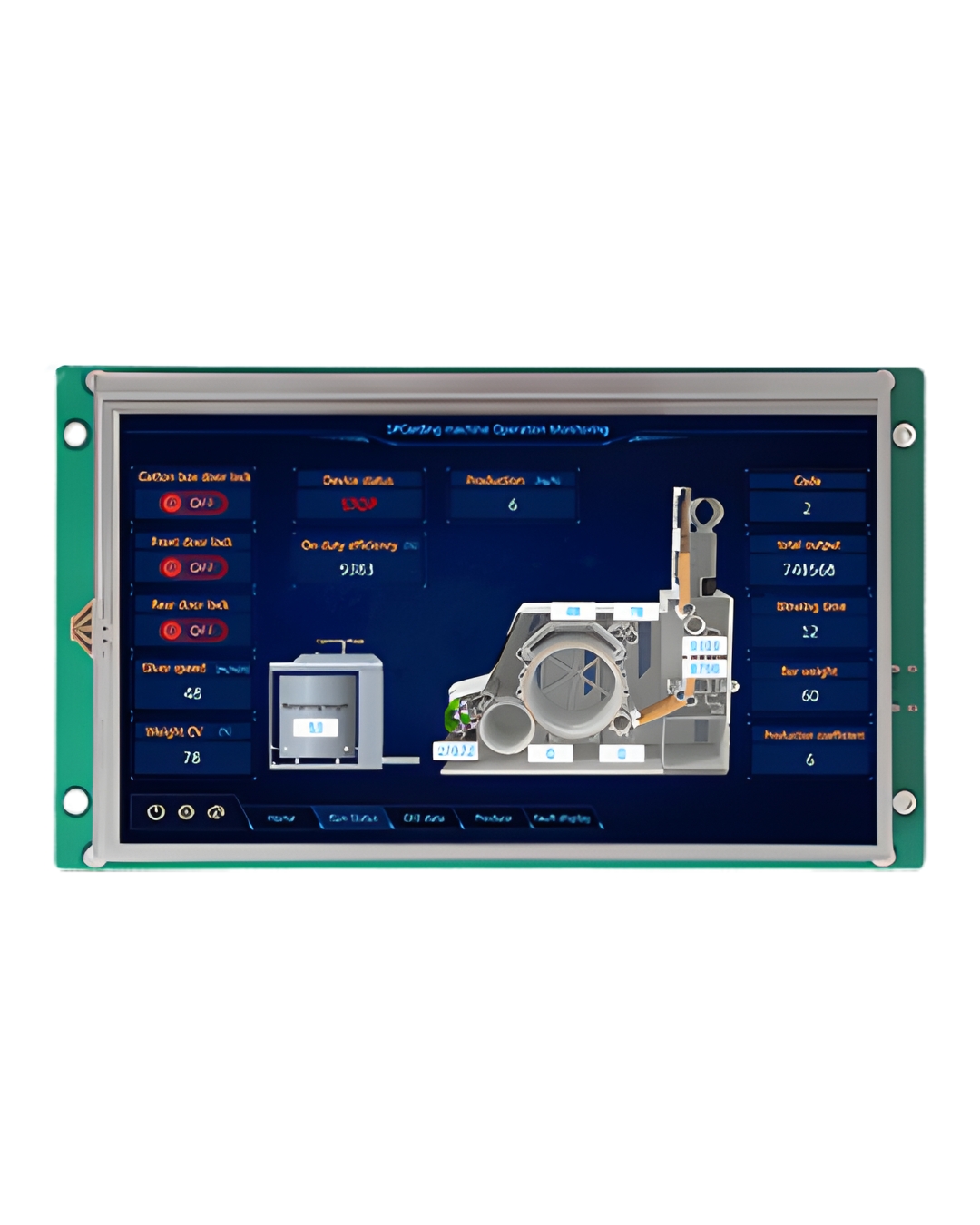

Flexem FD Series FD1024600E-S070-SS
Flexem FD Series FD1024600E-S070-SS

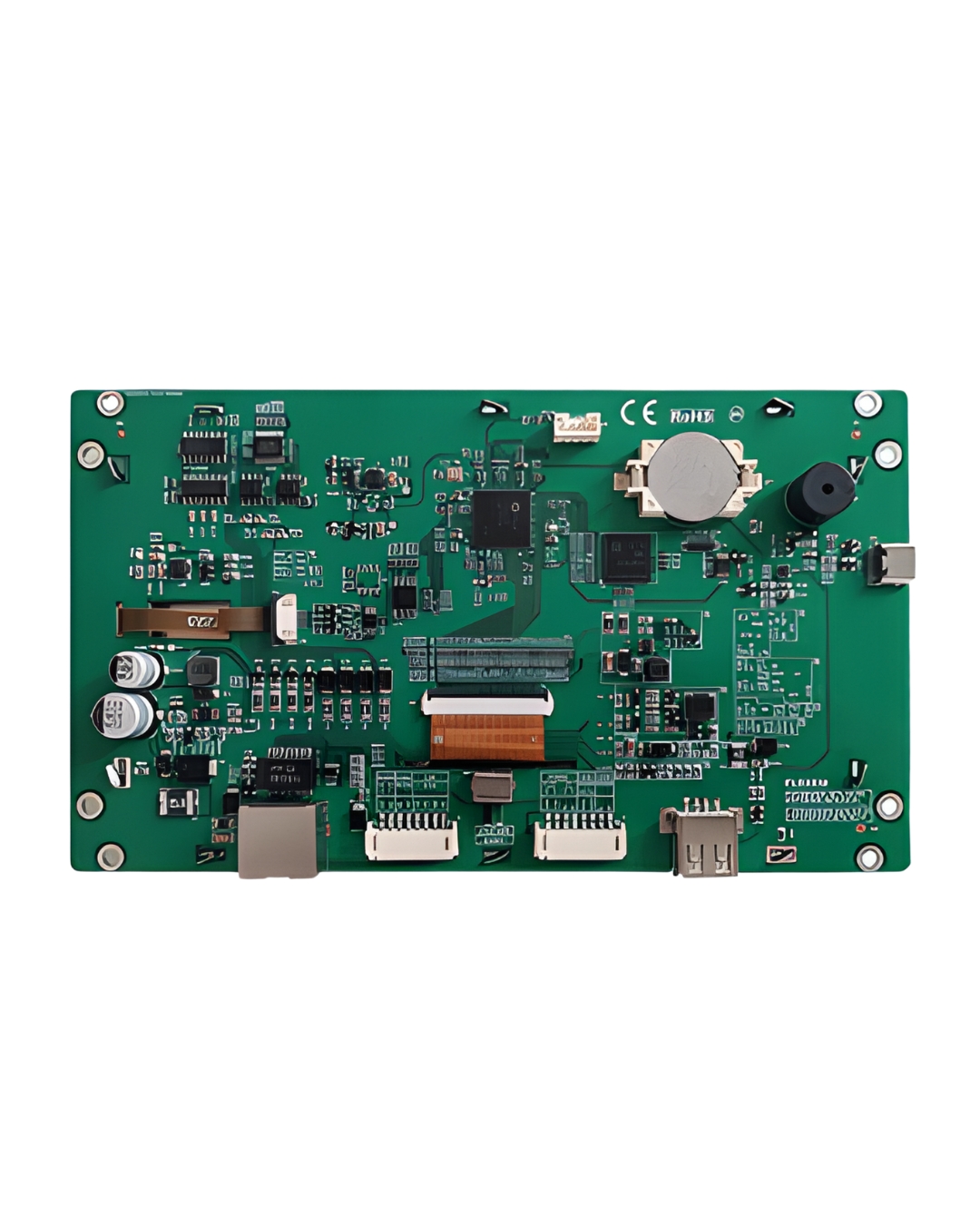

Industrial high quality components are used. Built-in installation structure without enclosure, compatible with serial port HMI. Various communication connections, supporting USB, SD card expanding connection. Compatible with powerful HMI configuration software. Reliable industrial design and high quality.
Additional Information:
| FEATURES | FD Series FD1024600E-S070-SS |
| Display | 7″ TFT LCD |
| Resolution(WxH) | 1024×600 |
| Colors | 24-bit |
| Brightness | 350 cd/m² |
| Backlight | LED |
| LCD Life | 50000 hours |
| Touch Panel | 4 wires resistive touch screen |
| CPU | 1GHz,dual-Cortex-A7 |
| Memory | 4GB eMMC+128MB DDR |
| RTC | Built in |
| Ethernet | 1 10M/100M |
| USB Port | USB Device 2.0Port*1,USB Host 2.0Port*1 Description:2 USB ports need timesharing |
| Download Project | USB Host/USB Slave/Ethernet |
| COM Port | COM1:RS232/RS485 COM2:RS485 COM3:RS23 |
| LCD viewing angle (T/B/L/R) |
85’/85’/85’/85′ |
| Produce Model | FE7070W/FE7070WE |
| Power Consumption | <10W |
| Input Power | DC24V,working range:DC9V～28V |
| Power Protection | Industrial power module,Protected from thunderstrike and surging |
| Power Down Allowed | <5mS |
| CE &RoHS | Complied with EN61000-6-2:2005,EN61000-6-4:2007,ROHS,Surge Immunity:±1KV,EFT:±2KV,ESD:4KV,Air:8KV |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Anti-UV | Not suitable to work in strong ultraviolet light (such as direct sunlight) |
| Operating Humidity | 10~90%RH(no condensate) |
| Vibration Endurance | 10~25Hz(X,Y,Z direction 2G/30min) |
| Cooling | Natural air cooling |
| Panel Cutout | 166mm×101mm |
| Dimension | 190.4mm×110mm×27mm |
| Weight | About 300g |
