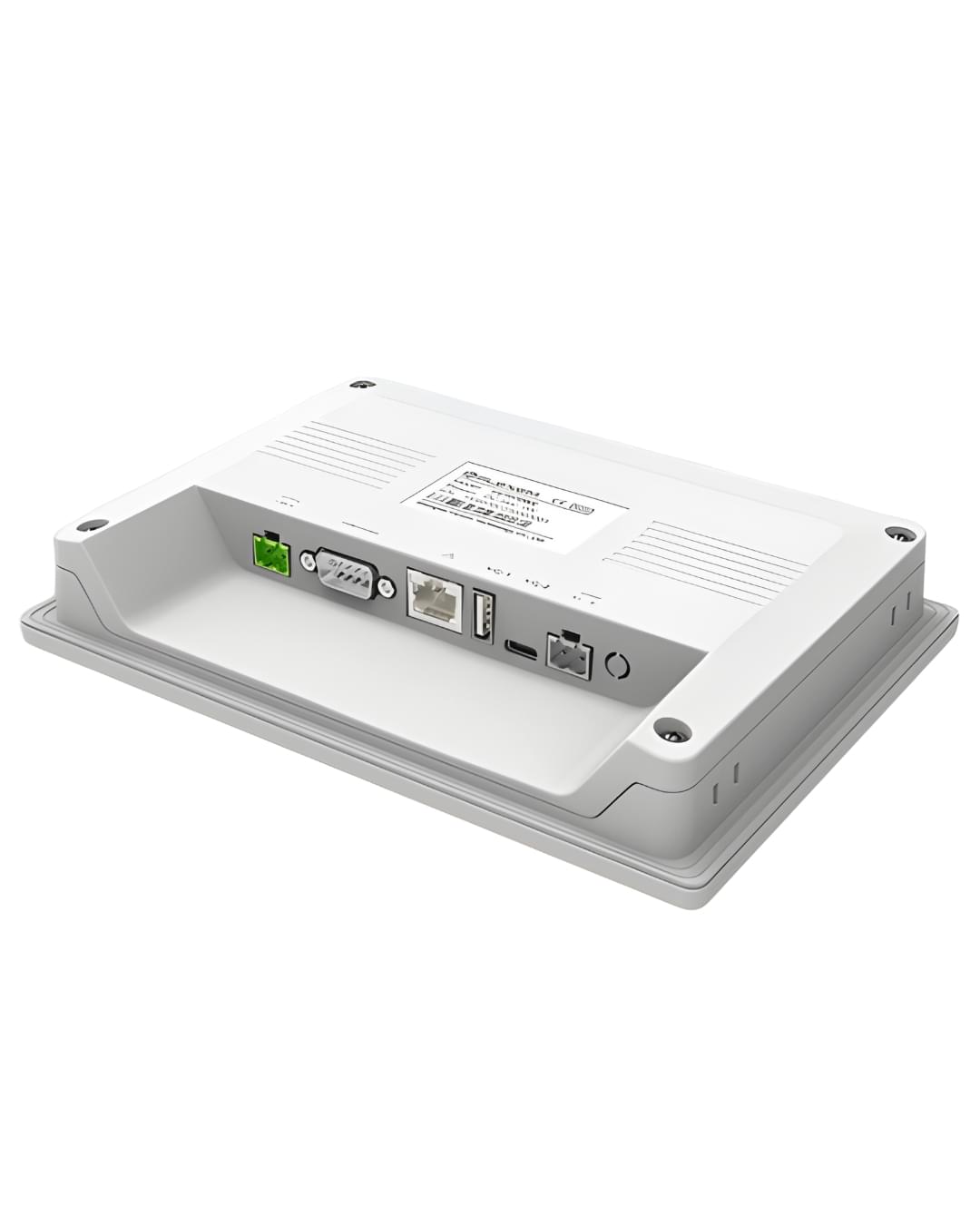

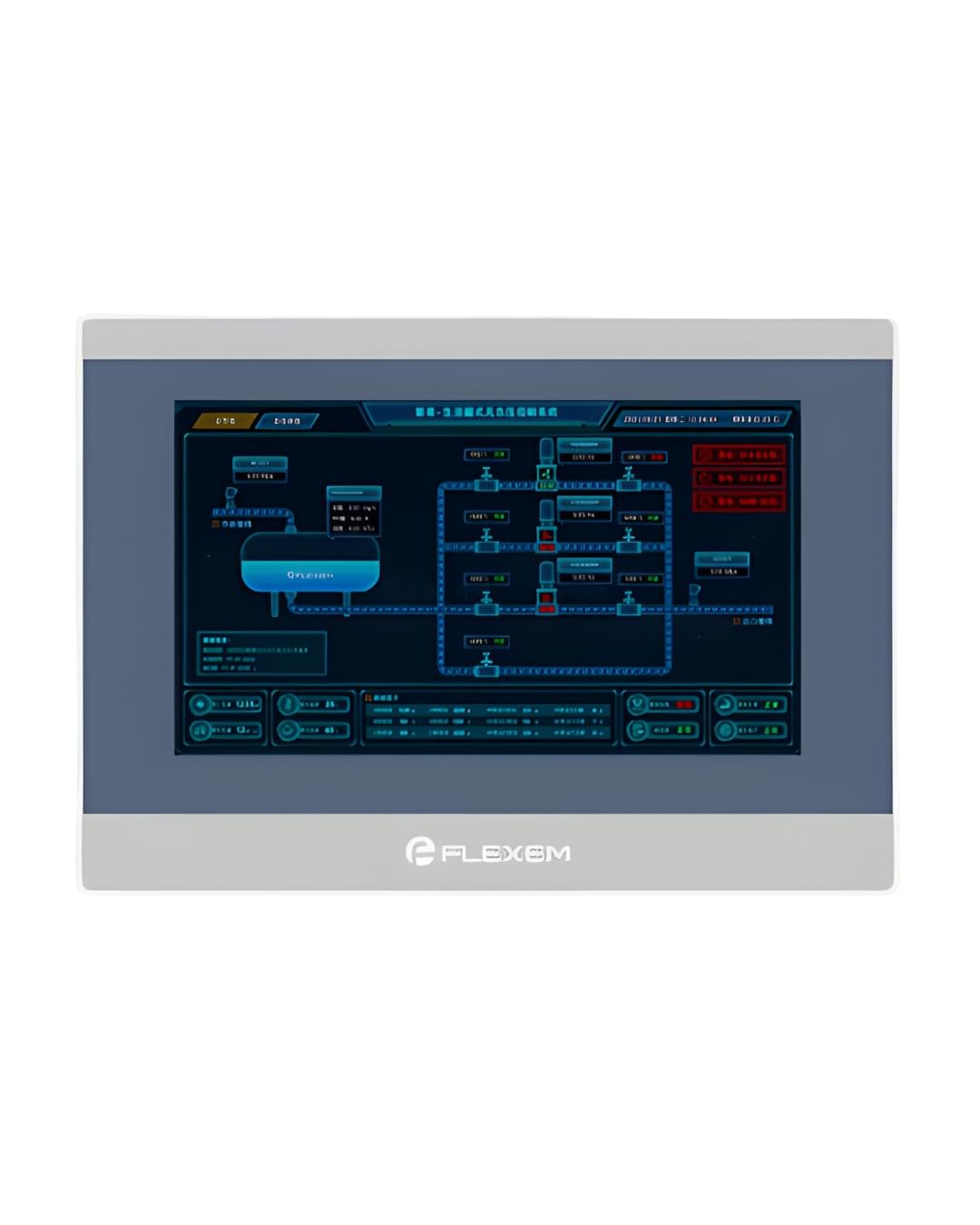

Flexem FE3370C 7-Inch HMI
Flexem FE3370C 7-Inch HMI
3300 series HMI is an economical HMI product with 2 serial ports supporting RS232/485/422, 1 USB port supporting USB disk data storage and downloading, USB powered program downloading, support for FStudio configuration software, rich gallery, and powerful functions.
Additional Information:
| FEATURES | FE3370C |
| Display | 7″ 16:9 TFT LCD |
| LCD Viewing Angles(T/B/L/R) | 50’/70’/70’/70′ |
| Resolution | 800×480 |
| Colors | 16-bit |
| Brightness | 250 cd/m² |
| Touch Panel | 4-wire resistive touchscreen |
| CPU | 1GHz, Dual core Cortex-A7 |
| Storage | 128 MB DDR3+128 MB Flash |
| RTC | Built-in |
| Ethernet Port | NA |
| SD Card | NA |
| USB Port | 1*USB Type-C OTG, 1*USB Type-A |
| Program Download Method | USB slave/Flash drive |
| Serial Port | COM1: RS232/RS485/RS422, COM2: RS485, COM3: RS232 |
| Rated Power | <10W |
| Rated Voltage | DC24V,Working range:DC 9V-28V |
| Power Protection | Lightning surge protection |
| Power Interruption Tolerance | <5mS |
| Certification | CE,RoHS |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ |
| UV Resistance | Not for use in high UV environments |
| Environmental Humidity | 10-90%RH(Non-condensing) |
| Vibration Endurance | 10-25Hz(X,Y,Z direction,2G/30 min) |
| Protection Level | Front:IP65(NEMA panel),Rear:IP20 |
| Enclosure Material | Engineering plastic, gray |
| Cutout Dimensions | 190mm×136mm |
| Dimensions | 204mm×145mm×34mm |
| Weight | About 476g |
