Flexem FE7070WE-32MRP (PNP)
Flexem FE7070WE-32MRP (PNP)

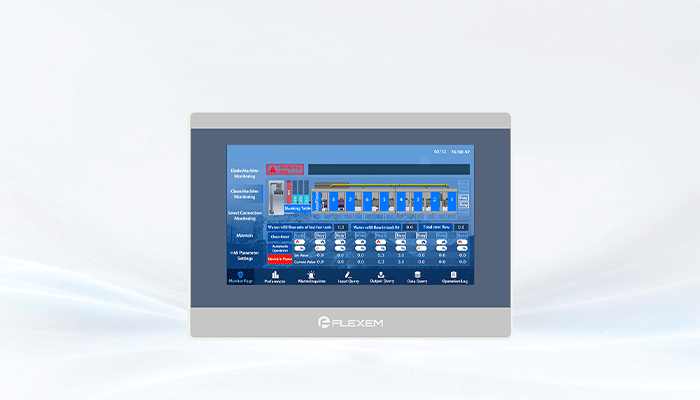

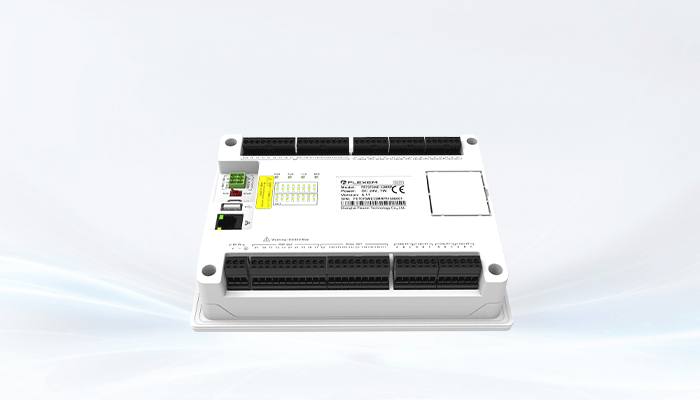

FE7070WE-32MRP is a cost-effective HMI+PLC all-in-one solution. It has 7″ resistive touch screen, and 16I+16O (8*PNP+ 8*Relay) PLC. The cutout size is 7 inch with high density, and space-saving features. Main-board conformal coating, adapting to various harsh environments. User-friendly configuration software, easy to use. Easy to install.
Additional Information:
| FEATURES | FE7070WE-32MRP |
| Human-Machine Interface Display | |
| Display | 7″ 16:9 TFT LCD |
| Resolution | 1024×600 |
| Colors | 24-bit |
| Brightness | 350 cd/m² |
| Backlight | LED |
| LCD Lifetime | 50000 hours |
| Touch Panel | 4-wire industrial resistive touch panel |
| CPU | Cortex-A7(1GHz,dual-core) |
| Storage | 128MB DDR3 + 4GB EMMC |
| RTC | Built-in |
| Ethernet | 1*RJ45,10M/100M self-adaptive |
| USB Port | 1*USB Type-C 2.0 port;1*USB Type-A 2.0 port |
| Serial Port | 1*RS485(COM1),signal isolation |
| Program Download Method | USB/USB Slave/Ethernet |
| LCD Viewing Angles(T/B/L/R) | 85°/85°/85°/85° |
| Configuration Software | FStudio |
| Corresponding HMI Model in FStudio Software | FE7070WE |
| Programmable Logic Controller | |
| CPU | ARM 32-bit CortexTM-M3 CPU |
| Digital Input | 16-channel Input |
| Digital Output | 8-channel Transistor(PNP) Output+ 8-channel Relay Output |
| Analog Input | 4 channels,4~20mA/0~10V,16-bit resolution,signal isolated |
| Analog Output | 2 channels,4~20mA/0~10V,12-bit resolution,signal isolated |
| PT100 | 4 channels,three-wire PT100,signal isolated |
| User Program Memory | 150K Bytes |
| Non-volatile Memory or Retentive Memory | 4K Bytes |
| Timer | In total: 256 100ms Timer:206(timing range from 0.1 to 3276.7 seconds) 10ms Timer: 46 (timing range from 0.01 to 327.67 seconds) 1ms Timer:4(timing range from 0.001 to 32.767 seconds) |
| Counter | 235 |
| High-Speed Interrupt | Rising and falling edge interrupts on X0~X4,3 timer interrupts |
| Program Execution Mode | Cyclic scanning |
| Processing Speed | General instructions:0.1μs Functional instructions (ON state 5μs;OFF state 0.5μs) |
| Programming Language | Ladder Diagram & Standard C Language,support mixed use. |
| Serial Communication Port | 1*RS485(Port1),supports Mitsubishi FX2N and Modbus RTU protocol,signal isolated |
| Programming Port | USB |
| Programming Software | FlexLogic |
| Corresponding PLC Model in FlexLogic Software | FL3-32MR-DC |
| HMI+PLC Other Parameters | |
| Rated Power | <10W |
| Rated Voltage | DC24V,operational range:DC 18V~30V |
| Power Protection | Support lightning surge protection |
| Power Interruption Tolerance | <5ms |
| CE & RoHS | EN61000-6-2:2019 and EN61000-6-4:2019 standards certified;RoHS certified;lightning surge±1kV; group pulse±2kV;electrostatic contact 4kV,air discharge 8kV |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| UV Resistance | Operating in high UV environment is prohibited (e.g.,in direct sunlight) |
| Environmental Humidity | 10%~90%RH (non-condensing) |
| Vibration Endurance | 10~25Hz (X/Y/Z direction,2G/30 minutes) |
| Cooling Method | Natural air cooling |
| Protection Level | Front:IP65(with flush panel cabinet installation),Rear:IP20 |
| Conformal Coating | Mainboard conformal coating,and glue dispensing |
| Enclosure Material | Engineering plastics |
| Cutout Dimensions | 190mm×136mm |
| Dimensions | 204mm×145mm×48mm |
| Weight | About 750g |
