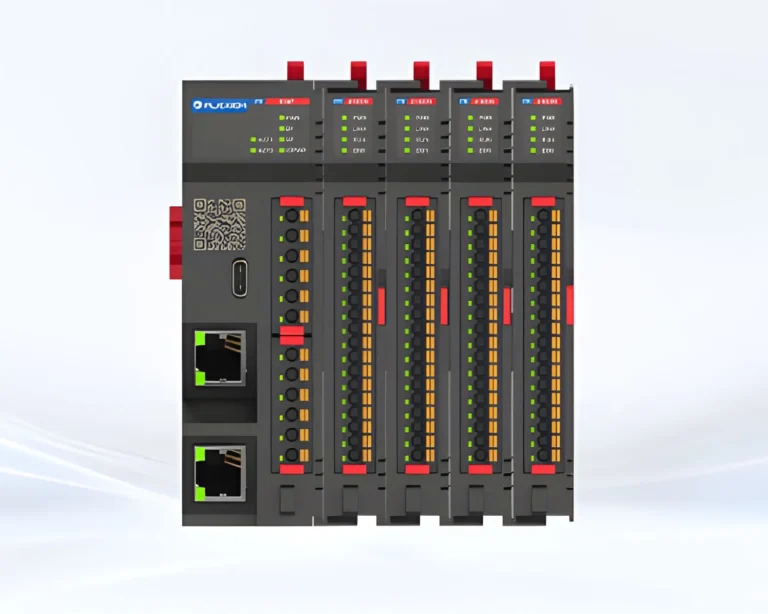

Flexem FR Series Remote IO?Extension Module-D
Flexem FR Series Remote IO?Extension Module-D
Additional Information:

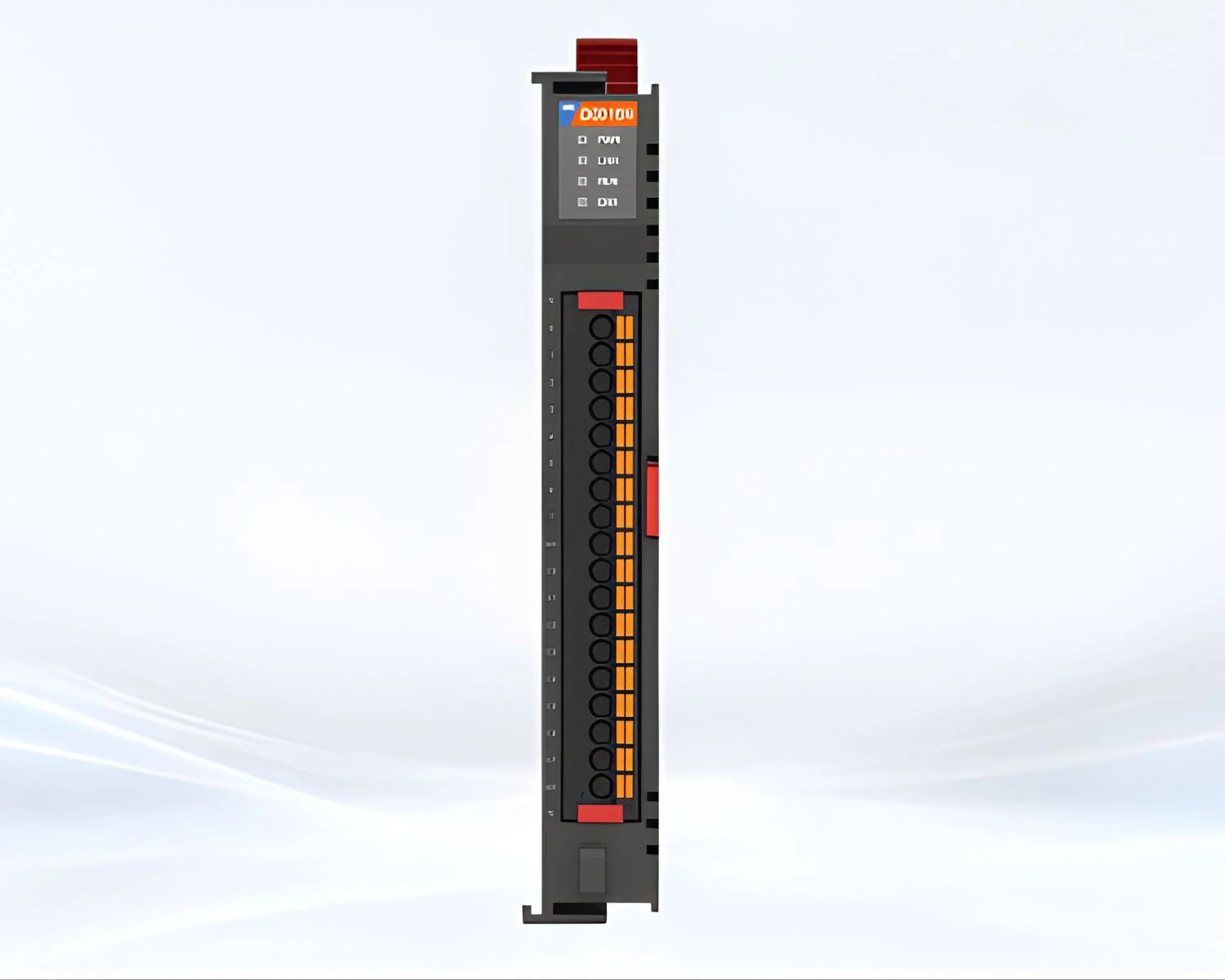

| Model | FR-D0016N |
| Channel | 16-point NPN output |
| Indicator | 16 output indicators |
| Rated Current | Single channel output:Max.1000mA,Total output:Max.500mA |
| Leak Current | Max:10μA |
| Output Impedance | Rate 500mΩ |
| Output Delay | OFF to ON:Max.100μs,ON to OFF:Max.150μs |
| Power | Max.140mA@5.0Vdc |
| Installation | 35mmDIN ruler |
| Dimension(H*W*D) | 111*18*76 |
| Weight | 65g |

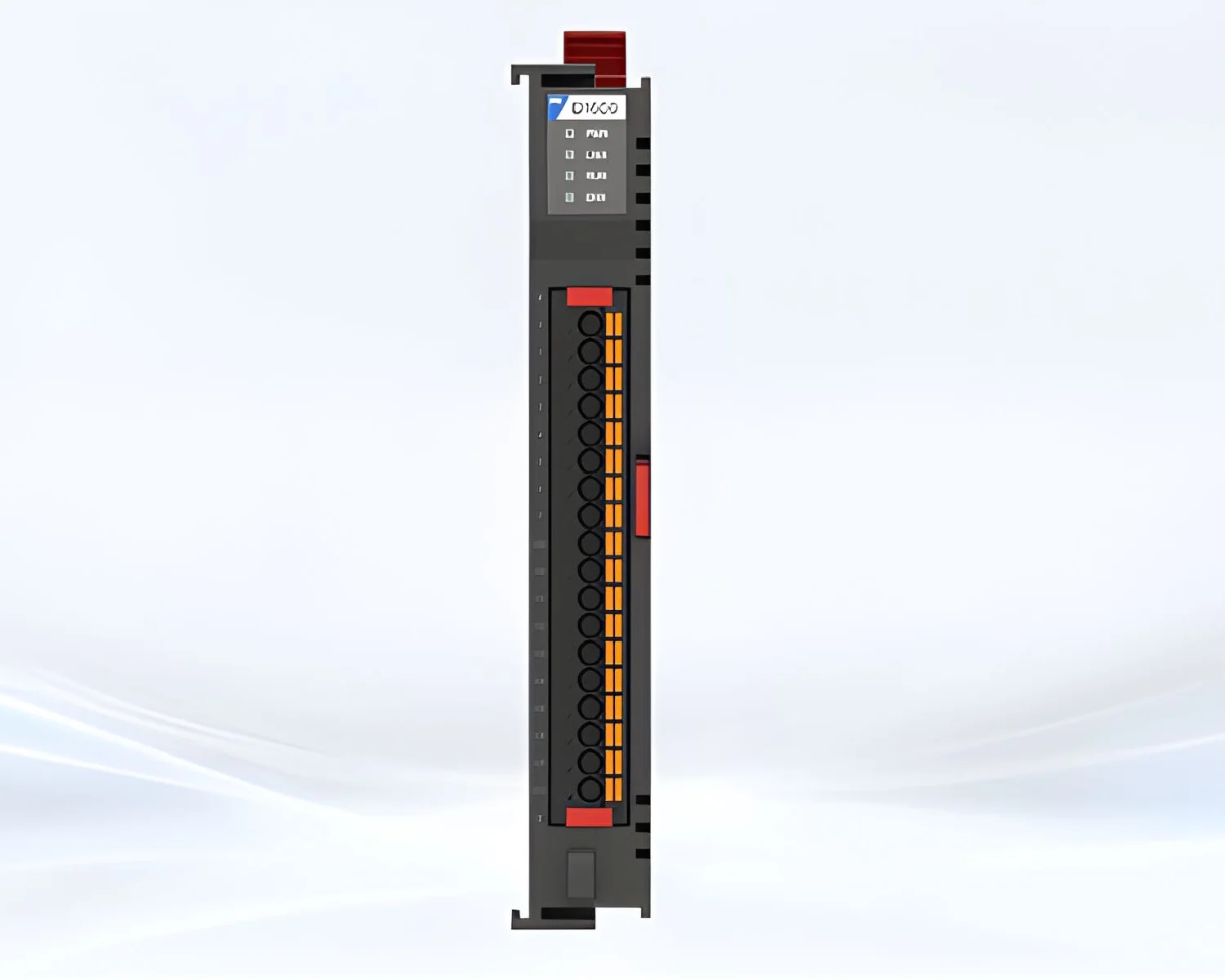

| Model | FR-D1600 |
| Channel | 16-point input |
| lndicator | 16 input indicators |
| ON Voltage | Min.10Vdc to Max.28Vdc |
| OFF Voltage | Max.5Vdc |
| ON Current | Max.5mA/Channel@28V |
| Input Impedance | >7.5kΩ |
| Input Delay | OFF to ON:Max.3ms,ON to OFF:Max.2ms |
| Power | Max.60mA@5.0Vdc |
| Installation | 35mm DIN ruler |
| Dimension (H*W*D) | 111*18*76 |
| Weight | 65g |

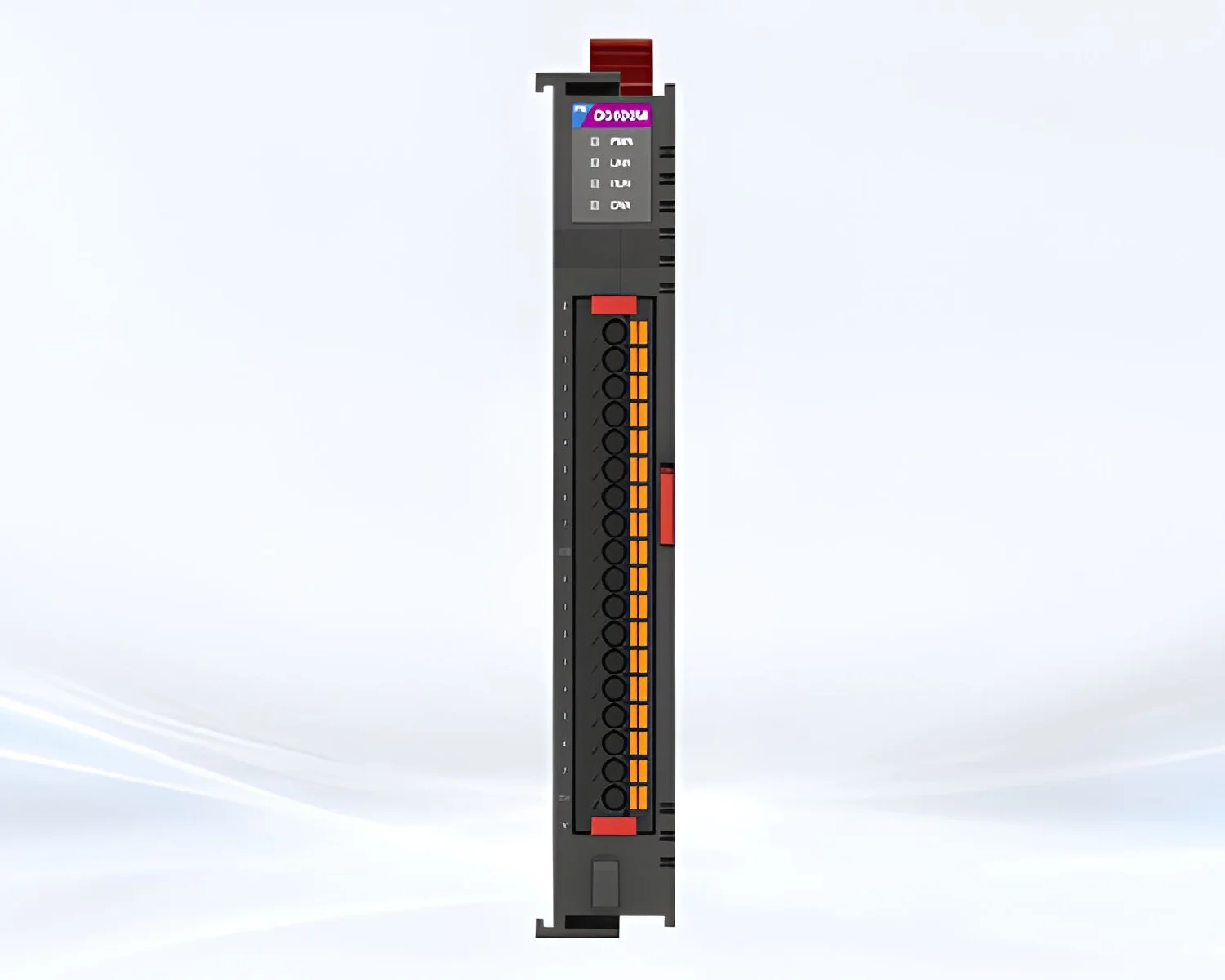

| Model | FR-D0808N |
| Input Parameter | |
| Channe | 8 point input |
| Indicator | 8 input Indicator |
| ON Voltage | High input:Min.10Vdc to Max.28Vdc(com:0Vdc)Low input:Min.OVdc to Max.14Vdc(com:24Vdc) |
| OFF Voltage | High input:Max.5Vdc(com:0Vdc)Low input:Min.19Vdc(com:24Vdc) |
| ON Current | Max.5mA/Channel@28V |
| Input Impedance | >7.5kΩ |
| Input Delay | OFF to ON:Max.3ms ON to OFF:Max.2ms |
| Output Parameter | |
| Channel | 8-point NPN output |
| Indicator | 8 output Indicators |
| Rated Current | Rate:500mA |
| Leak Current | Max:10μA |
| Output Impedance | <200mΩ |
| Output Delay | OFF to ON:Max.100μs ON to OFF:Max.150μs |
| Power | Max.85mA@5.0Vdc |
| Installation | 35mmDIN ruler |
| Dimension (H *W*D) | 111*18*76 |
| Weight | 65g |
