Flexem FV5-R Series
Flexem FV5-R Series

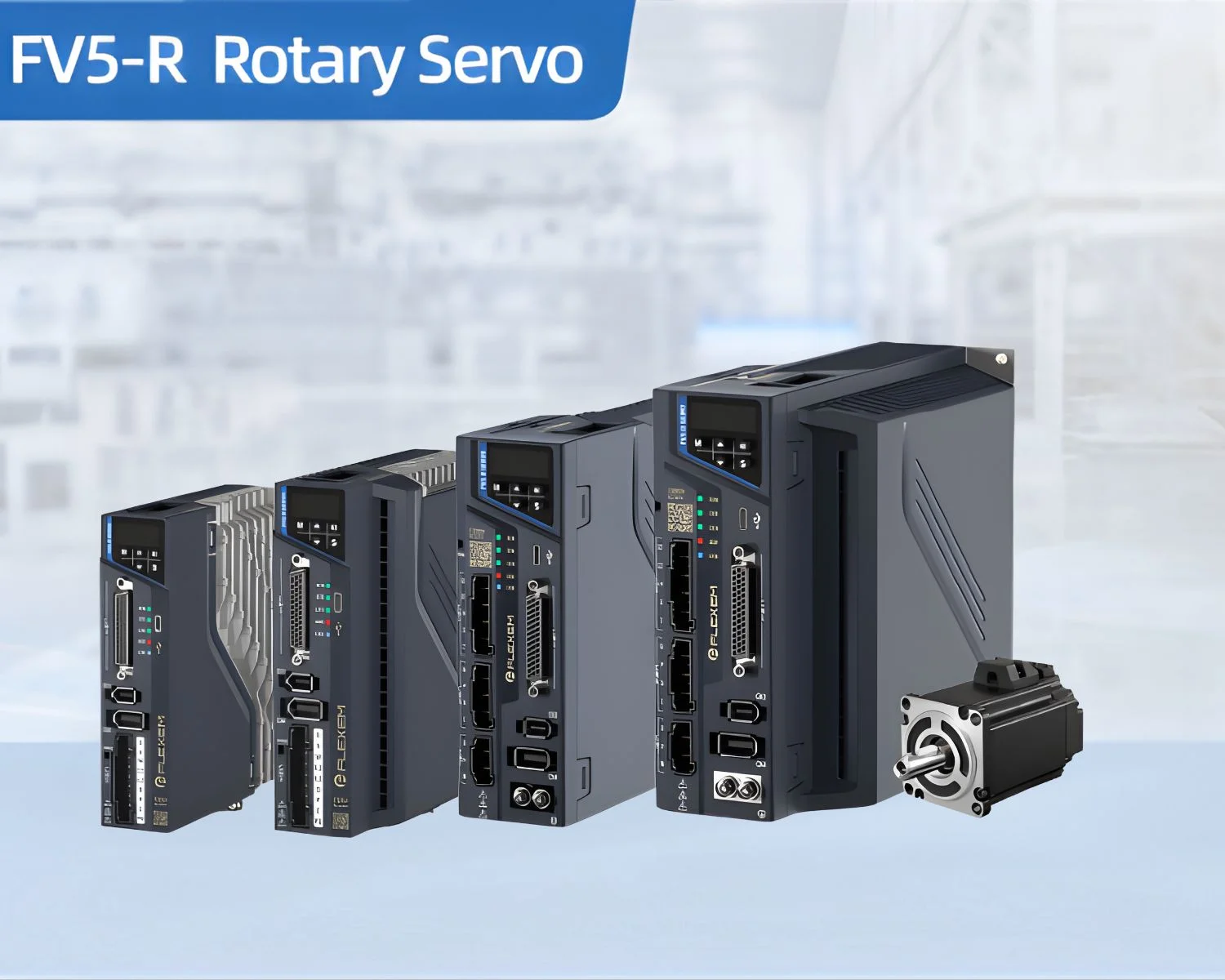

For transmission and handling axes, with silk-level precision, suitable for the robotics industry, etc. 17/23bit multi-turn absolute motor, supports EtherCAT and Modbus communication protocols, standard dynamic braking, standard encoder output, 4M pulse input, full closed-loop function, built-in 24V power supply.
Additional Information:
FV5-R Series — Specification
| Specification | A1R1 | A1R6 | A2R8 | A5R5 | A6R0 | C7R6 | C012 |
|---|---|---|---|---|---|---|---|
| Rated power (W) | 100 | 200 | 400 | 750 | 1000 | 1000 | 1500 |
| Input voltage specifications | Single-phase AC200V-240V, -10% ～ 10%, 50/60Hz (some models) — Three-phase AC200V-240V, -10% ～ 10%, 50/60Hz (other variants) | ||||||
| Continuous output current (Arms) | 1.1 | 1.6 | 2.8 | 5.5 | 6.0 | 7.6 | 12.0 |
| Maximum output current (Arms) | 3.9 | 5.9 | 10.1 | 16.9 | 18.0 | 23.0 | 28.0 |
| Brake function | External braking resistor / Built-in braking resistor | ||||||
| Built-in braking resistor resistance (Ω) | — | — | — | — | 50 | 25 | 25 |
| Built-in braking resistor capacity (W) | — | — | — | — | 50 | 80 | 80 |
| Minimum external braking resistor resistance (Ω) | 40 | 40 | 40 | 40 | 40 | 20 | 15 |

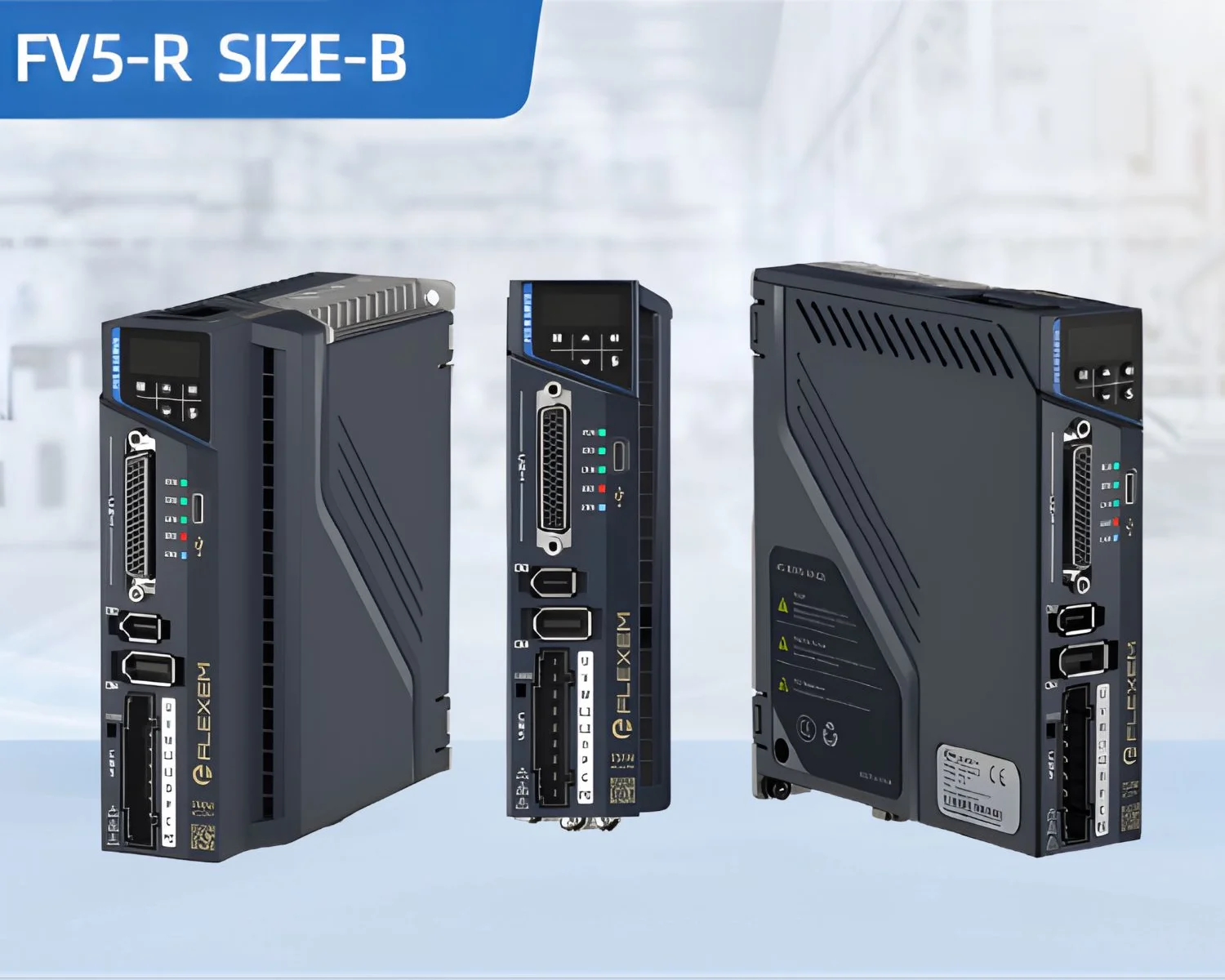

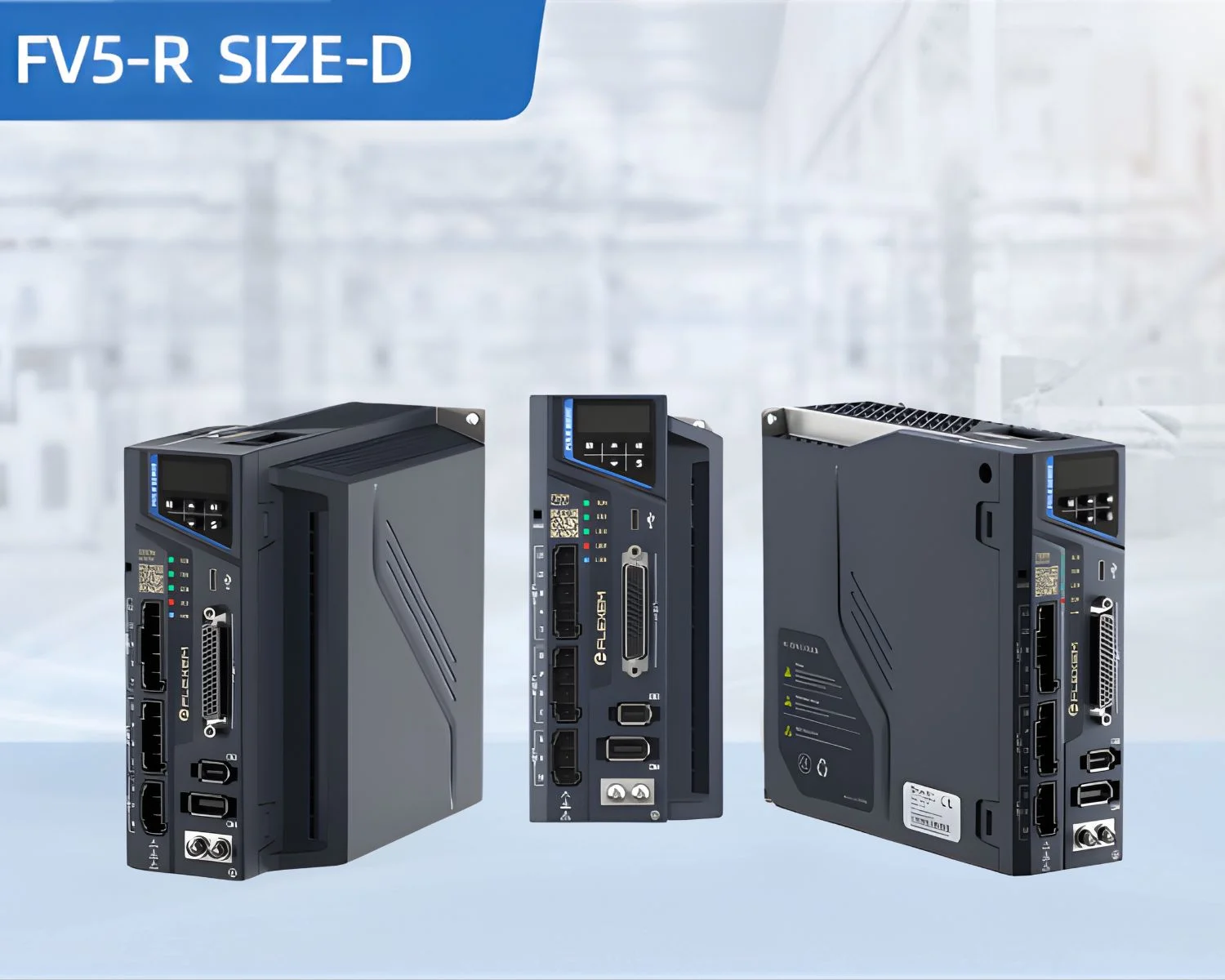

| Installation size | SIZE-A | SIZE-A | SIZE-A | SIZE-B | SIZE-B | SIZE-C | SIZE-D |
| Note | FV5-R1-NA5R5 and FV5-R1-NA6R0 do not have built-in brake resistors. | ||||||
| Specification | T3R5 | T5R4 | T8R4 | T012 | T017 | T021 | T026 |
|---|---|---|---|---|---|---|---|
| Rated power (W) | 1000 | 1500 | 2000 | 3000 | 4400 | 5500 | 7500 |
| Input voltage specifications | Three-phase AC380V-440V, -10% ～ 10%, 50/60Hz | ||||||
| Continuous output current (Arms) | 3.5 | 5.4 | 8.4 | 12.0 | 17.0 | 21.0 | 26.0 |
| Maximum output current (Arms) | 11.0 | 14.0 | 20.0 | 30.0 | 42.5 | 52.5 | 65.0 |
| Brake function | Built-in braking resistor | ||||||
| Built-in braking resistor resistance (Ω) | 100 | 100 | 50 | 50 | 35 | 35 | 35 |
| Built-in braking resistor capacity (W) | 80 | 80 | 80 | 80 | 100 | 100 | 100 |
| Minimum external braking resistor resistance (Ω) | 80 | 60 | 45 | 40 | 35 | 25 | 25 |
| Installation size | SIZE-C | SIZE-C | SIZE-D | SIZE-D | SIZE-E | SIZE-E | SIZE-E |
