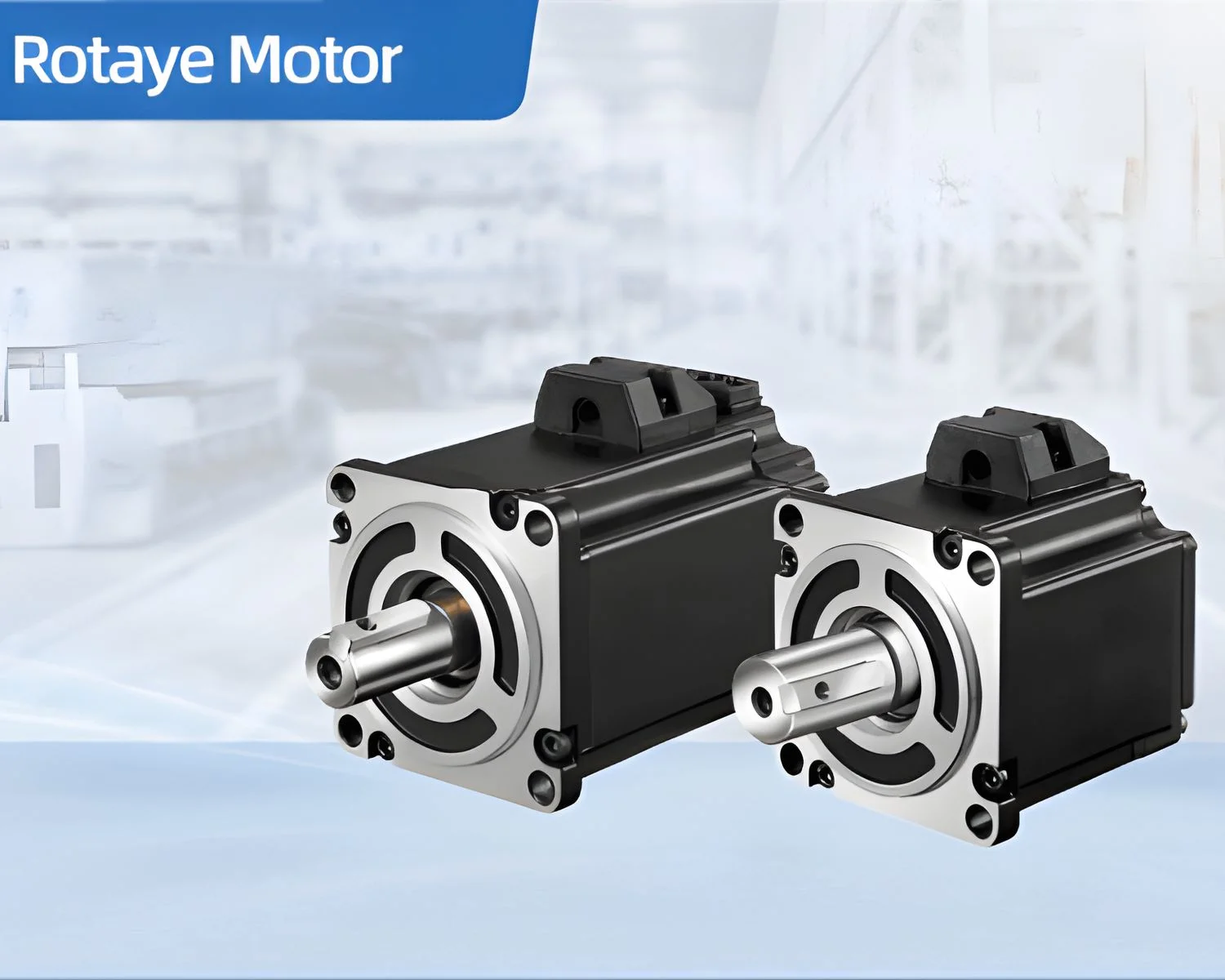

Flexem High-Voltage AC Servo Motor
Flexem High-Voltage AC Servo Motor
High-performance EAM series and general-purpose ECM series, low, medium and high inertia levels, 40mm~180mm flange size, 50W~7.5kW power range, high-precision 17bit and 23bit encoders, protection level up to IP67, and up to 3.5 times overload.
Additional Information:
High-Voltage AC Servo Motor
| Model | Flange (mm) | Rated Power (W) | Rated Torque (Nm) | Max Torque (Nm) | Rated Current (Arms) | Rated Speed (rpm) | Max Speed (rpm) | Rotor Inertia (kg·m² ×10⁻⁴) | Voltage (V) |
|---|---|---|---|---|---|---|---|---|---|
| EAM-WH-A530A-□3▲ | 40 | 50 | 0.16 | 0.48 | 0.6 | 3000 | 6000 | 0.035 (0.038) | 220 |
| EAM-WH-0130A-□3▲ | 40 | 100 | 0.32 | 0.96 | 1.0 | 3000 | 6000 | 0.053 (0.056) | 220 |
| EAM-WH-0230A-□3▲ | 60 | 200 | 0.64 | 1.92 | 1.4 | 3000 | 6000 | 0.29 (0.32) | 220 |

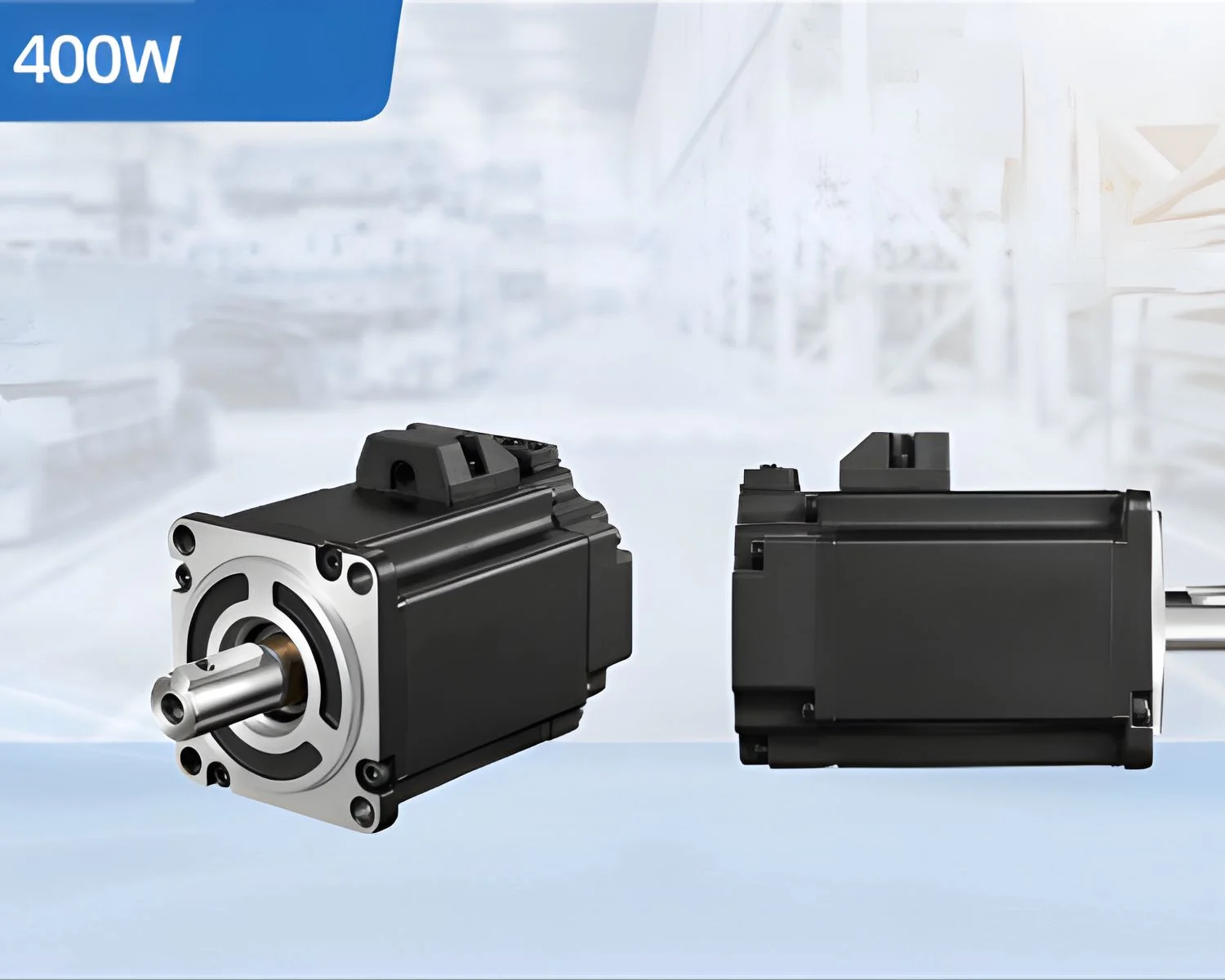

| EAM-WH-0430A-□3▲ | 60 | 400 | 1.27 | 3.81 | 2.8 | 3000 | 6000 | 0.53 (0.56) | 220 |

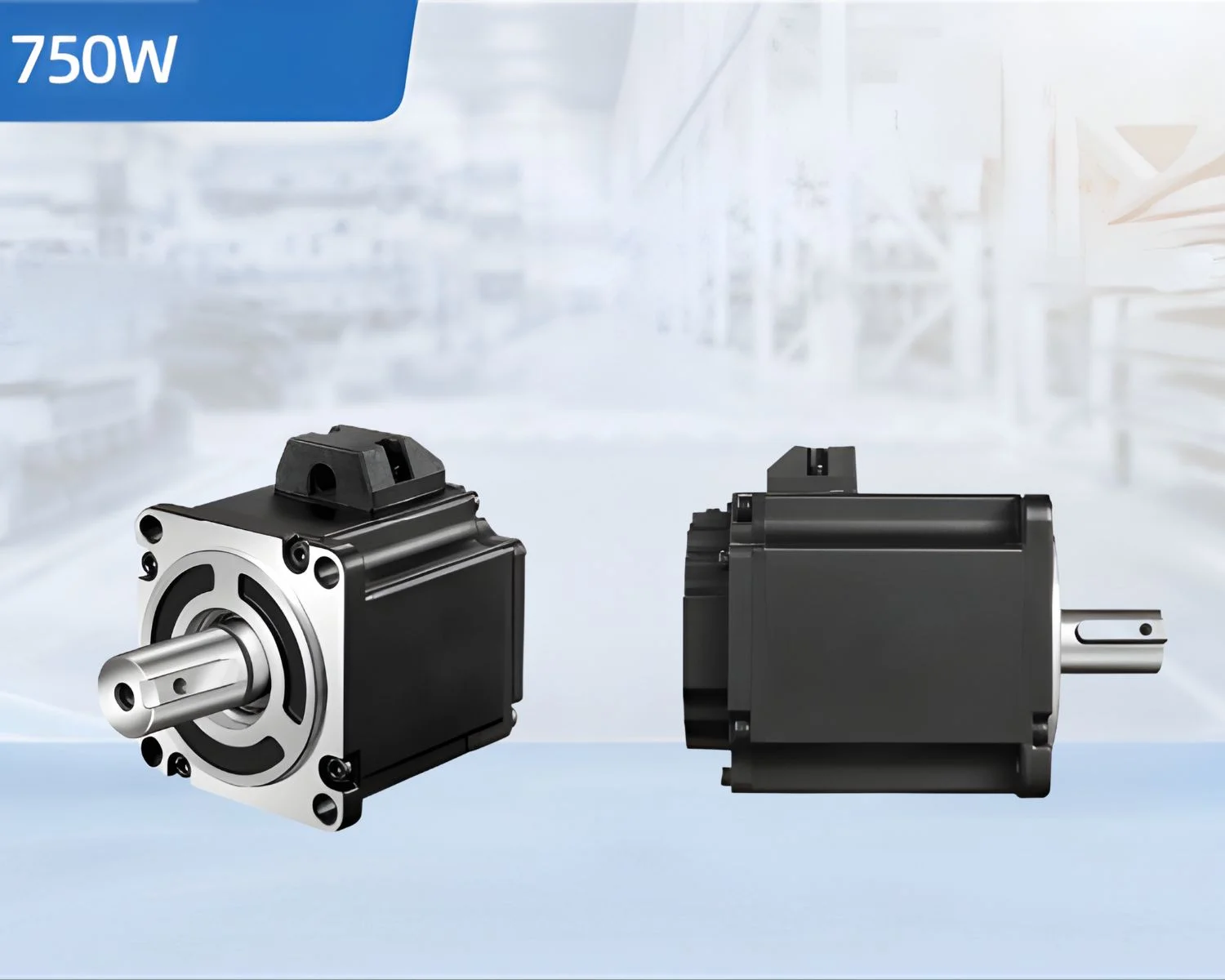

| EAM-WH-0830A-□3▲ | 80 | 750 | 2.4 | 7.2 | 3.8 | 3000 | 6000 | 1.62 (1.72) | 220 |
| EAM-WH-1030A-□3▲ | 80 | 1000 | 3.2 | 9.6 | 5.5 | 3000 | 6000 | 2.1 (2.2) | 220 |
| EAM-WG-1230A-□3▲ | 110 | 1200 | 4.0 | 12.0 | 5.0 | 3000 | 3500 | 7.3 (7.5) | 220 |
| EAM-WH-1530A-□3▲ | 110 | 1500 | 5.0 | 15.0 | 6.0 | 3000 | 3500 | 9.2 (9.4) | 220 |
| EAM-WH-1830A-□3▲ | 110 | 1800 | 6.0 | 18.0 | 7.7 | 3000 | 3500 | 10.8 (10.9) | 220 |
| EAM-WG-0915A-□3▲ | 130 | 850 | 5.39 | 16.17 | 6.9 | 1500 | 3000 | 10.9 (12.13) | 220 |
| EAM-WG-1315A-□3▲ | 130 | 1300 | 8.34 | 25.02 | 10.7 | 1500 | 3000 | 16.9 (18.13) | 220 |
| EAM-WG-1515A-□3▲ | 130 | 1500 | 10.0 | 25.0 | 6.0 | 1500 | 2000 | 18.8 (20.28) | 220 |
| EAM-WG-1815A-□3▲ | 130 | 1800 | 11.5 | 34.5 | 13.8 | 1500 | 3000 | 21.4 (22.63) | 220 |
| EAM-WG-0915T-□3▲ | 130 | 850 | 5.39 | 16.17 | 4.0 | 1500 | 3000 | 10.9 (12.13) | 380 |
| EAM-WG-1315T-□3▲ | 130 | 1300 | 8.34 | 25.02 | 6.0 | 1500 | 3000 | 16.9 (18.13) | 380 |
| EAM-WG-1815T-□3▲ | 130 | 1800 | 11.5 | 34.5 | 8.5 | 1500 | 3000 | 21.4 (22.63) | 380 |
| EAM-WG-3030T-□3▲ | 130 | 3000 | 10.0 | 23.0 | 8.0 | 3000 | 3500 | 25.5 (27) | 380 |
| EAM-WG-2915T-□3▲ | 180 | 2900 | 18.6 | 55.8 | 11.9 | 1500 | 3000 | 62.5 (69.5) | 380 |
| EAM-WG-4415T-□3▲ | 180 | 4400 | 28.4 | 85.2 | 16.5 | 1500 | 3000 | 88.5 (94.5) | 380 |
| EAM-WG-5515T-□3▲ | 180 | 5500 | 35.0 | 105.0 | 20.8 | 1500 | 3000 | 114.4 (120.4) | 380 |
| EAM-WG-7515T-□3▲ | 180 | 7500 | 48.0 | 120.0 | 26.0 | 1500 | 3000 | 136.6 (142.6) | 380 |
Notes: When □ is U → 23-bit optical encoder (requires FV5-R3 driver). When □ is 3 → 17-bit magnetic encoder (requires FV3S-R1 driver). ▲ = 0 (no holding brake), ▲ = 2 (with holding brake). Values in parentheses are inertia with brake.
| Model | Flange (mm) | Rated Power (W) | Rated Torque (Nm) | Max Torque (Nm) | Rated Current (Arms) | Rated Speed (rpm) | Max Speed (rpm) | Rotor Inertia (kg·m² ×10⁻⁴) | Voltage (V) |
|---|---|---|---|---|---|---|---|---|---|
| ECM-WH-A530A-U3▲ | 40 | 50 | 0.16 | 0.48 | 0.6 | 3000 | 6000 | 0.035 (0.038) | 220 |
| ECM-WH-0130A-U3▲ | 40 | 100 | 0.32 | 0.96 | 1.0 | 3000 | 6000 | 0.053 (0.056) | 220 |
| ECM-WH-0230A-□3▲ | 60 | 200 | 0.64 | 1.92 | 1.4 | 3000 | 6000 | 0.29 (0.32) | 220 |
| ECM-WH-0430A-□3▲ | 60 | 400 | 1.27 | 3.81 | 2.8 | 3000 | 6000 | 0.53 (0.56) | 220 |
| ECM-WH-0830A-□3▲ | 80 | 750 | 2.4 | 7.2 | 3.8 | 3000 | 6000 | 1.62 (1.72) | 220 |
| ECM-WH-1030A-□3▲ | 80 | 1000 | 3.2 | 9.6 | 5.5 | 3000 | 6000 | 2.1 (2.2) | 220 |
| ECM-WF-0915A-□3▲ | 130 | 850 | 5.39 | 10.78 | 5.5 | 1500 | 3000 | 6.18 (7.41) | 220 |
| ECM-WF-1315A-□3▲ | 130 | 1300 | 8.34 | 16.68 | 8 | 1500 | 3000 | 9.16 (10.39) | 220 |
| ECM-WF-1815A-□3▲ | 130 | 1800 | 11.5 | 23 | 12 | 1500 | 3000 | 12.1 (13.33) | 220 |
| ECM-WF-0915T-□3▲ | 130 | 850 | 5.39 | 10.78 | 3.5 | 1500 | 3000 | 6.8 (7.41) | 380 |
| ECM-WF-1315T-□3▲ | 130 | 1300 | 8.34 | 16.68 | 5 | 1500 | 3000 | 9.16 (10.39) | 380 |
| ECM-WF-1815T-□3▲ | 130 | 1800 | 11.5 | 23 | 7 | 1500 | 3000 | 12.1 (13.33) | 380 |
| ECM-WG-0915A-□3▲ | 130 | 850 | 5.39 | 16.17 | 5.5 | 1500 | 3000 | 9.3 (10.53) | 220 |
| ECM-WG-1315A-□3▲ | 130 | 1300 | 8.34 | 25.02 | 8 | 1500 | 3000 | 15.1 (16.33) | 220 |
| ECM-WG-1815A-□3▲ | 130 | 1800 | 11.5 | 34.5 | 12 | 1500 | 3000 | 19.6 (20.83) | 220 |
| ECM-WG-0915T-□3▲ | 130 | 850 | 5.39 | 16.17 | 3.4 | 1500 | 3000 | 9.3 (10.53) | 380 |
| ECM-WG-1315T-□3▲ | 130 | 1300 | 8.34 | 25.02 | 5.2 | 1500 | 3000 | 15.1 (16.33) | 380 |
| ECM-WG-1815T-□3▲ | 130 | 1800 | 11.5 | 34.5 | 7.2 | 1500 | 3000 | 19.6 (20.83) | 380 |
Notes: When □ is U → 23-bit optical encoder (requires FV3S-R3 driver). When □ is 3 → 17-bit magnetic encoder (requires FV3S-R1 driver). ▲ = 0 (no holding brake), ▲ = 2 (with holding brake). Values in parentheses are inertia with holding brake.
