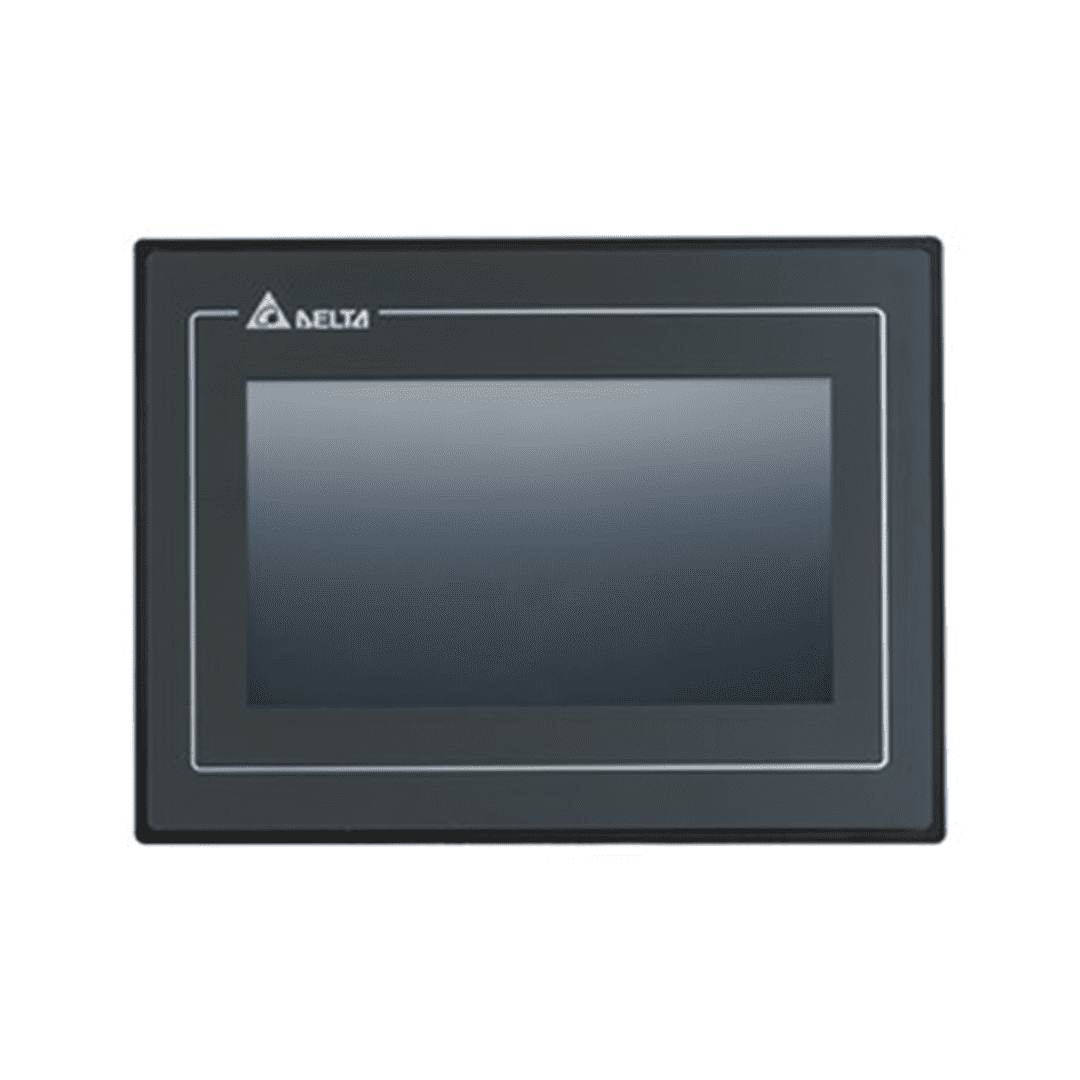

HMI E Type
HMI E Type
The Standard HMI E Type is equipped with 3 Serial Communication Ports to meet diverse requirements. It supports Ethernet for fast and easy connection with other equipment.
Features & Benefits
- Multiple size options: 7? (16 : 9) / 7? (4 : 3)
- High-performance CPU: Cortex-A8
- Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 2), USB, SD card slot, and more
- Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation
- Certification: CE / UL
Additional Information:
Product Introduction
Applications
Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics
Specifications
| Specifications | DOP-107EG | DOP-107EV |
|---|---|---|
| Display | 7″ TFT | 7″ TFT |
| Resolution (Pixels) | 800 x 600 | 800 x 480 |
| Color | 16-bit | 16-bit |
| CPU | Cortex-A8 800 MHz | Cortex-A8 800 MHz |
| ROM | 256 MB | 256 MB |
| RAM | 256 MB | 256 MB |
| Ethernet | 1 Port | 1 Port |
| COM Port | 3 Serial COM Ports | 3 Serial COM Ports |
| USB | 1 Slave / 1 Host | 1 Slave / 1 Host |
| SD | SD x 1 | NA |
| Certification | CE / UL | CE / UL |
| Operating Temperature | 0 ~ 50?C | 0 ~ 50?C |
| Storage Temperature | -20 ~ 60?C | -20 ~ 60?C |
