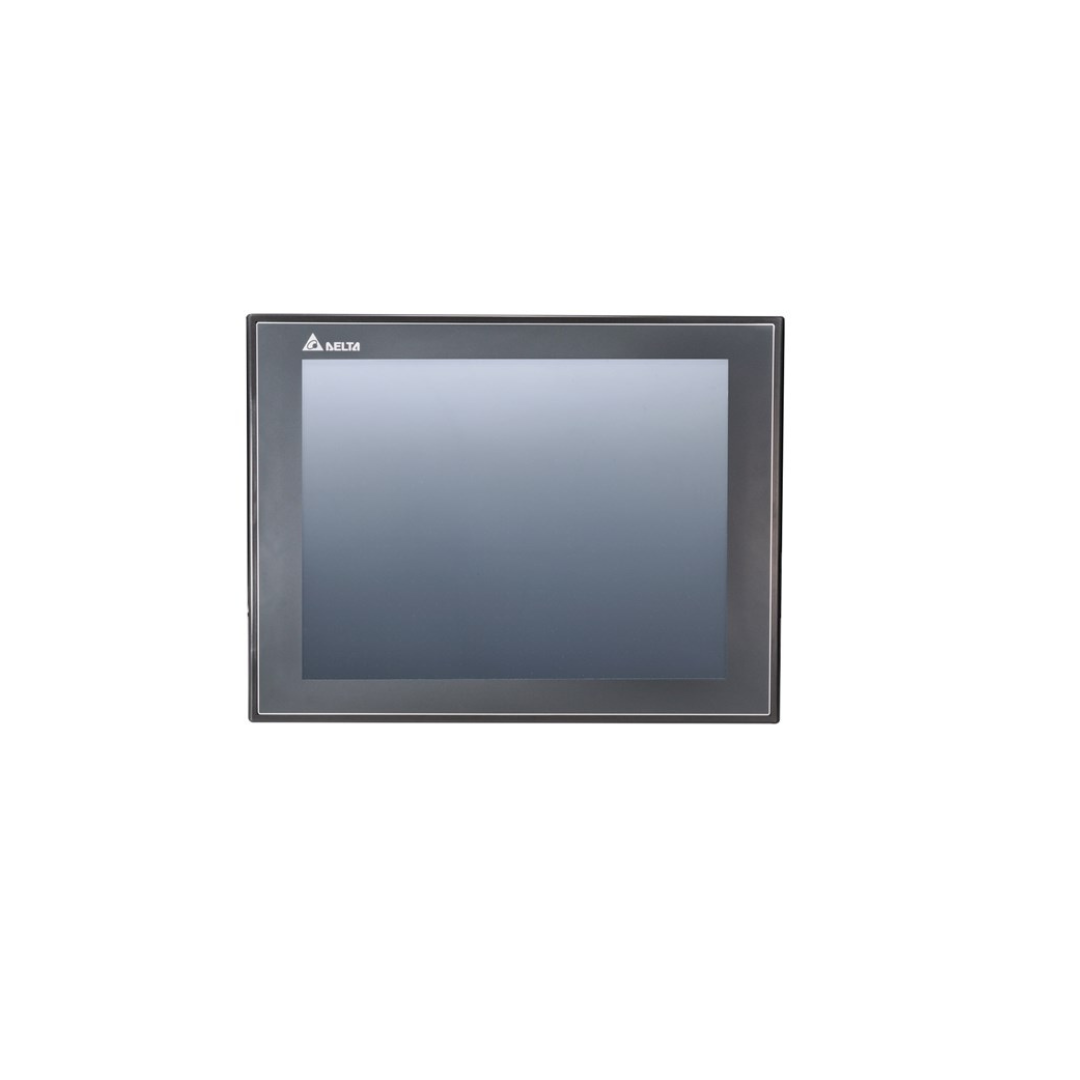

HMI M Type
The Advanced HMI M Type adopts a wide screen and narrow frame design. It supports Ethernet communication and multilingual inputs, and offers multimedia functions to meet diverse requirements.
Features & Benefits
- Multiple size options: 12” / 15”
- High-performance CPU: Cortex-A7 Dual Core
- Highly integrated design: Built-in 2 Ethernet ports, 4 serial communication ports (D-Sub x 2), USB, SD card slot, and more.
- Multi-language input: Supports 16 languages, applicable for recipe parameters and account input
Additional Information:
Applications
-
- Machinery and equipment in various sectors such as packaging, textiles, woodworking, rubber, and plastics.
| Specifications | DOP-112MX | DOP-115MX |
|---|---|---|
| Display | 12″ TFT | 15″ TFT |
| Resolution (Pixels) | 1,024 x 768 | 1,024 x 768 |
| Color | 24-bit | 24-bit |
| CPU | Cortex-A7 Dual Core 1 GHz | Cortex-A7 Dual Core 1 GHz |
| ROM | 8 GB | 8 GB |
| RAM | 1 GB | 1 GB |
| Ethernet | 2 Ports | 2 Ports |
| COM Port | 4 Serial COM Ports | 4 Serial COM Ports |
| Software Function | Multi-Language Input, Multimedia | Multi-Language Input, Multimedia |
| USB | 1 Mini Slave / 1 Host | 1 Mini Slave / 1 Host |
| SD | SD x 1 | SD x 1 |
| Certification | CE / UL | CE / UL |
| Operating Temperature | 0 ~ 50°C | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C | -20 ~ 60°C |
