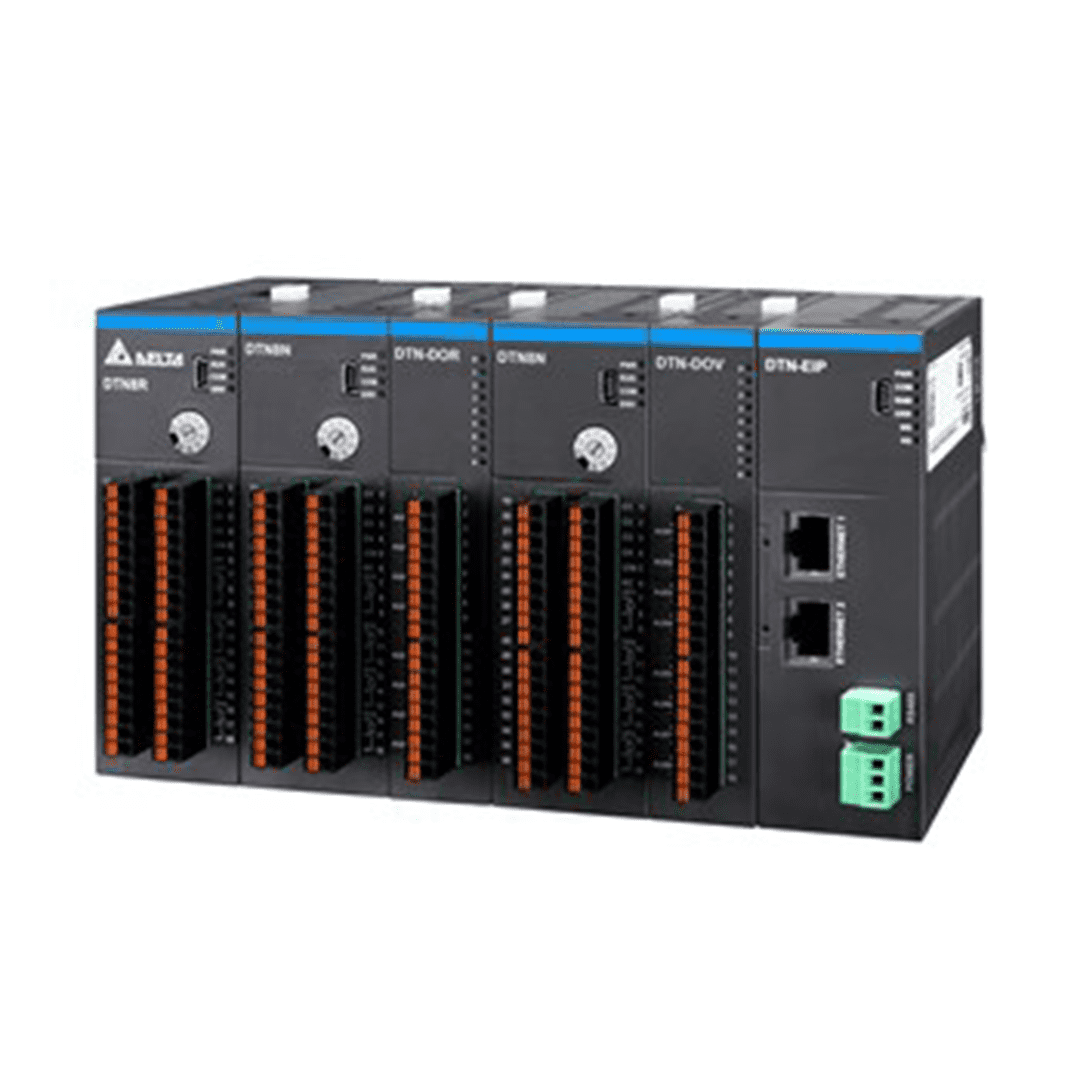

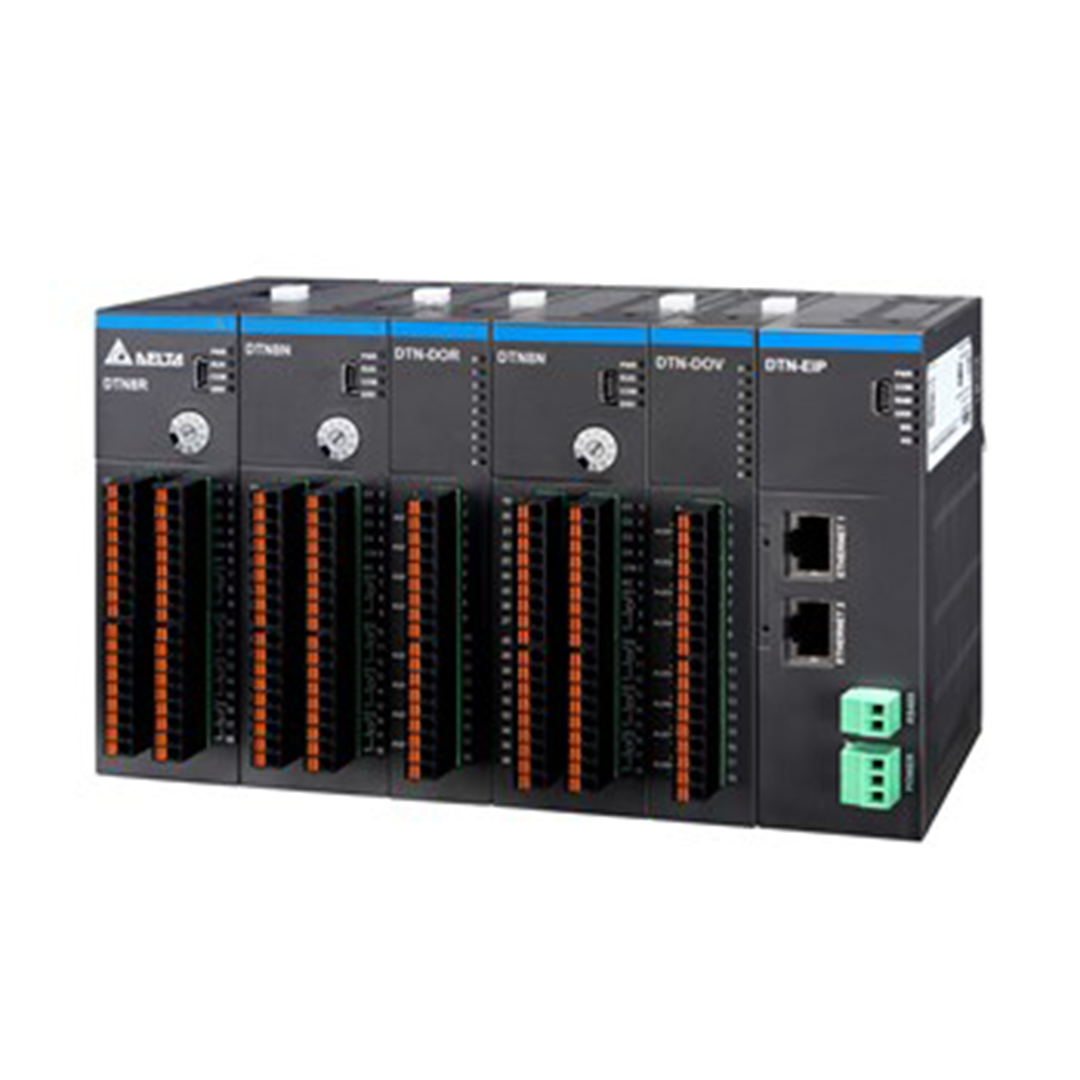

Product Introduction

• Thin-type design saves installation space.
• Modular design allows flexible expansion and easy maintenance.
• Fast module connection via RS-485 and Ethernet.
• Multiple measurement modules can form up to 64 channels of PID control loops.
• Various extension modules (Measurement, I/O Extension, and Ethernet) available for different applications.
• Isolation between channels prevents electricity leakage and noise jamming during operation.

Features & Benefits

Thin-type Design Saves Horizontal Mounting Space

• Reduces width by 65% compared to the DTE Series.
• Saves horizontal mounting space.
• Overcomes the limitation of cabinet size.

Various Extension Modules for Flexible Applications

• The DTN Series consists of a measurement host, a measurement extension module, I/O extension modules, and an Ethernet module.
• A single measurement host or measurement extension module provides up to 8 control loops.
• A DTN group composed of a measurement host and multiple measurement extension modules can provide a maximum of 64 control loops.
• Each measurement host or measurement extension module can pair with one I/O extension module for flexible [Control], [Alarm], and [Retransmission] output configuration.

Ethernet Communication for Fast and Stable Transition & Simple Wiring

• Internal communication interface collects data from all extension modules at any time for high communication efficiency.
• Connects multiple Ethernet devices with dual ports to simplify wiring.
• Supports Modbus TCP and Ethernet/IP.
• Features Gateway function to support the temperature controllers with Modbus interface via RS-485.
