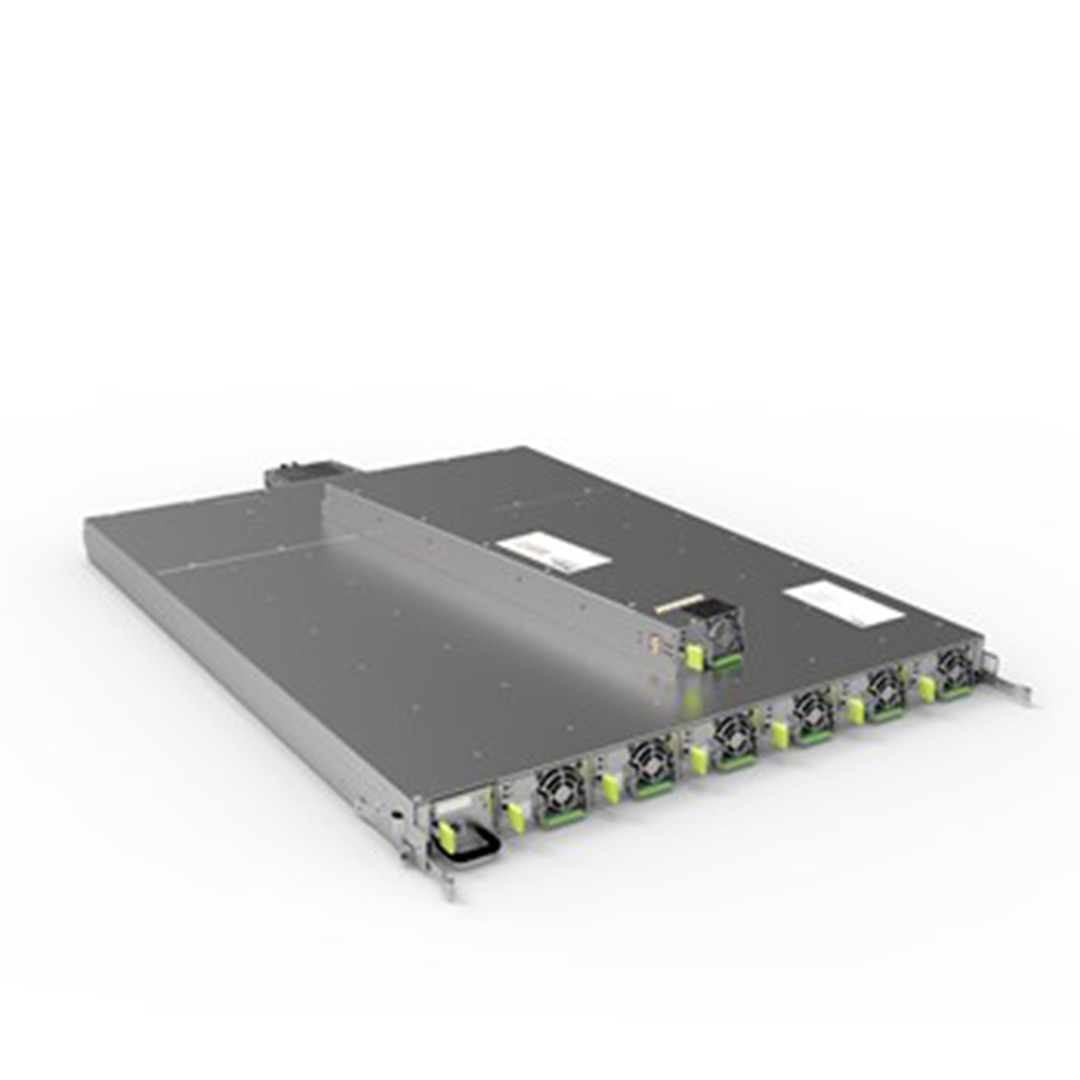

ORV3 33 kW Power System
The ORV3 18 kW power shelves adopts Delta?s 3 kW power supply units (PSU), which boast over 97.5% peak efficiency. The high efficiency 6-slot-chassis power shelf is specifically designed to enable substantial energy savings in AI servers. The power shelf offers a maximum 18 kW power output or 15 kW with 5+1 redundancy which accommodates six 3 kW hot-pluggable power supply units. Each unit has a 150% load capability for 20 milliseconds to ensure protection from sudden current increases. It can integrate the power management controller (PMC) with industry-leading PoE (Power over Ethernet) function to enable smart power management in AI data centers. The PMC with PoE function provides up to 1GbE Ethernet and allows PMC to work with the ORV3 power shelf for energy saving and optimal operational performance of data centers. In addition, both the power shelf and PMC can be customized in terms of hardware and firmware based on client demands to realize high energy efficiency for data centers.
Additional Information:
Product Introduction and Features
| Category | Details |
|---|---|
| Product Introduction | Up to six 3 or 5.5 kW PSUs |
| Features & Benefits |
|
| Applications |
|
Specifications:
Dimensions (H x W x D)1.57 x 2.9 x 25.2 inch (40.0 x 73.5 x 640 mm) / 1.89 x 21 x 28.3 inch (48 x 533 x 720 mm)Weight6.61 / 9.92 lbs (3 / 4.5 kg) / 26.5 lbs (12 kg) without PSUs / 66.16 lbs (30 kg) fully populated Max. Output Power3 / 5.5 kW / 18 / 33 kW (max.)Output Voltage48 / 50 VDC Output Current60 / 110 A / 360 / 660 A (max.)Input Voltage Range180 VAC – 305 VAC, 50 / 60 Hz / AC input: 200 – 277 V L-N, 346 – 480 V L-L (3W+N+PE), 50 / 60 Hz Cooling Cooling by PSU fans Connector FCI Multi-Beam
Input: SP10RSSS48M220A1/AA-2269/ SP10RSSS48RM220A1/AA-2269
Output: BK600Safety Standards IEC 60950-1 (CB) / UL 62368-2 (CAN / CSA)
IEC 60950-1 (CB) / UL 60950-1 (CAN/CSA)EMC Standards Class A Communication IC & RS485
