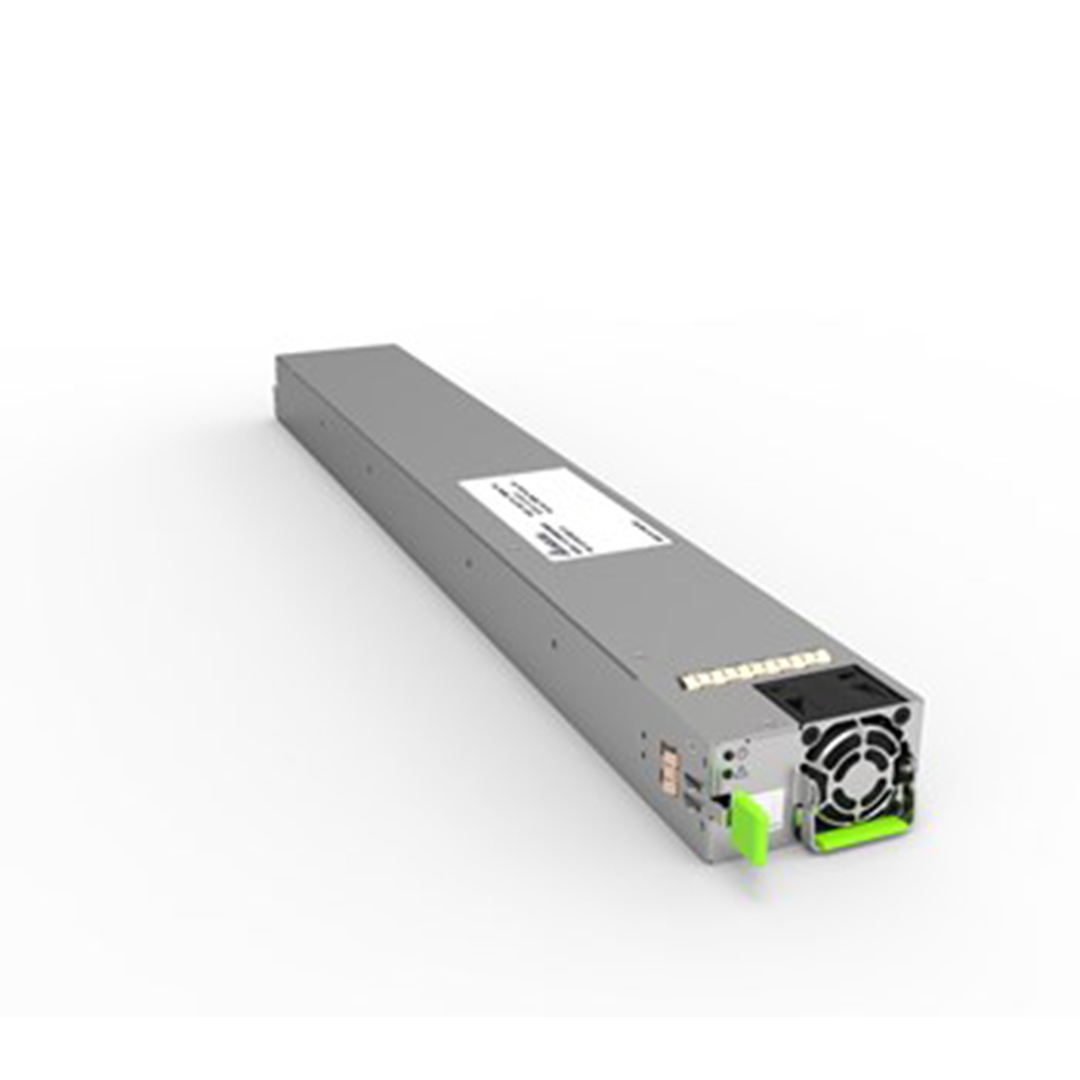

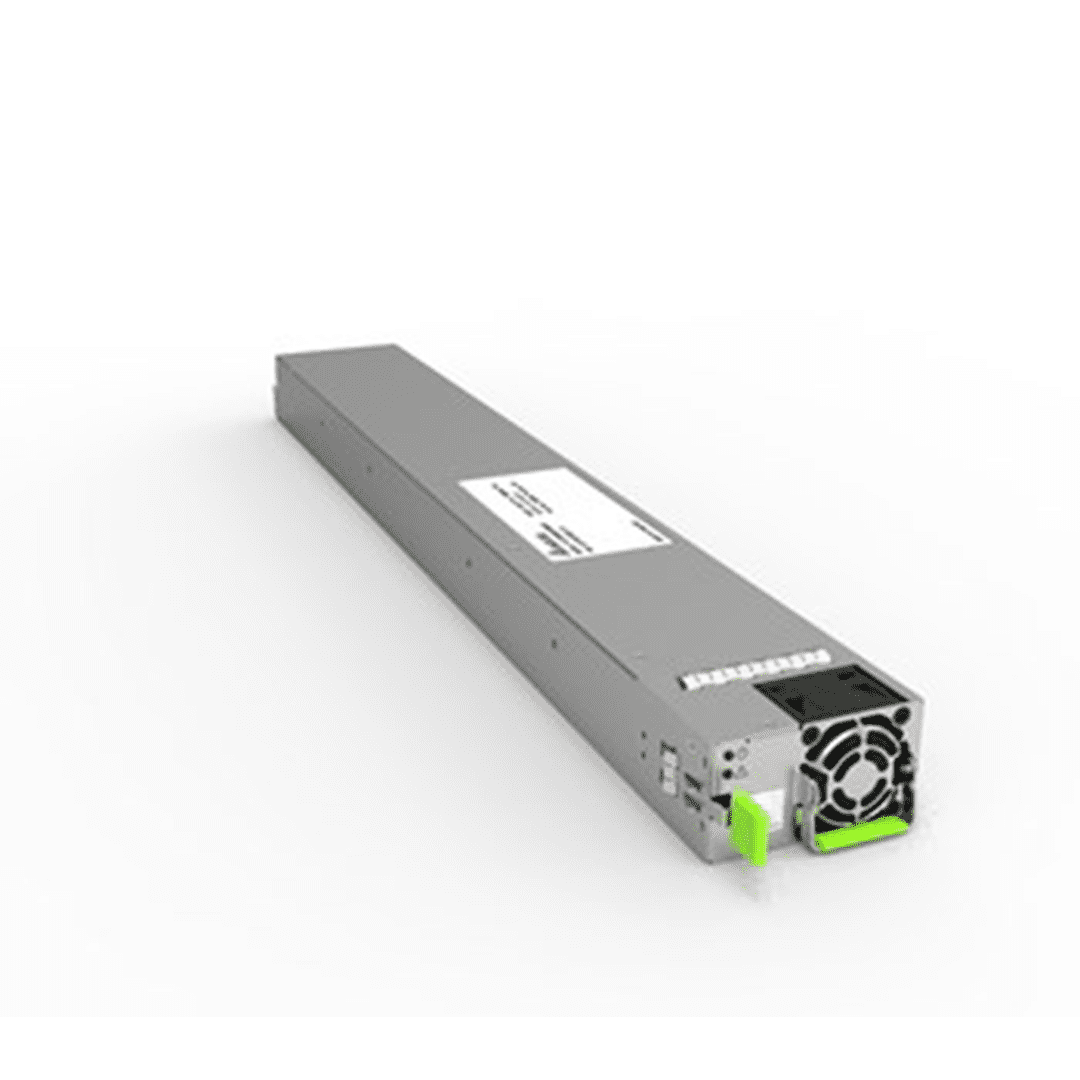

ORV3 KW Power Supply Unit
ORV3 KW Power Supply Unit
Delta offers high quality power supply for data center server application. The ORV 3 series power supply complies with OCP ORV 3 standard and is especially suitable to AI server. The 3 kW power supply units (PSU) boast over 97.5% peak efficiency. It is customizable in terms of hardware and firmware based on client demands to realize high energy efficiency for data centers.
Additional Information:
Highly efficient AC/DC 3kW rectifier for data center power systems and AI Server Power Supply based on Open Compute Project (OCP) Open Rack version 3 (ORV3).
Features & Benefits
- High Efficiency 97.5% (peak)
- High Line Wide Range Input (200 V / 277 V)
- Parallel operation
- Hot Pluggable
- Droop & Active shallow I2C current share
- Boot load function
- Customizable on request
Applications
- Highly efficient AC/DC 3kW rectifier for data center power systems
- AI Server Power Supply based on Open Compute Project (OCP) Open Rack version 3 (ORV3)
Specifications:
3kW Power Supply Unit (PSU) Specifications
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 1.57 x 2.9 x 20.47 inches (40.0 x 73.5 x 520 mm) |
| Weight | 6.61 lbs (3 kg) |
| Max. Output Power | 3,000W |
| Output Voltage | 48 / 50VDC |
| Output Current | 60A |
| Input Voltage Range | 180VAC – 305VAC @ 3,000W, 50 / 60Hz |
| Efficiency | >97.5% @ 50% Load |
| Cooling | Fan Cooled |
| Connector | FCI Multi-Beam |
| Safety Standards | IEC 60950-1 (CB) / UL 62368-2 (CAN / CSA) |
| EMC Standards | Class A |
| Communication | I?C & RS485 |
