PRF Series

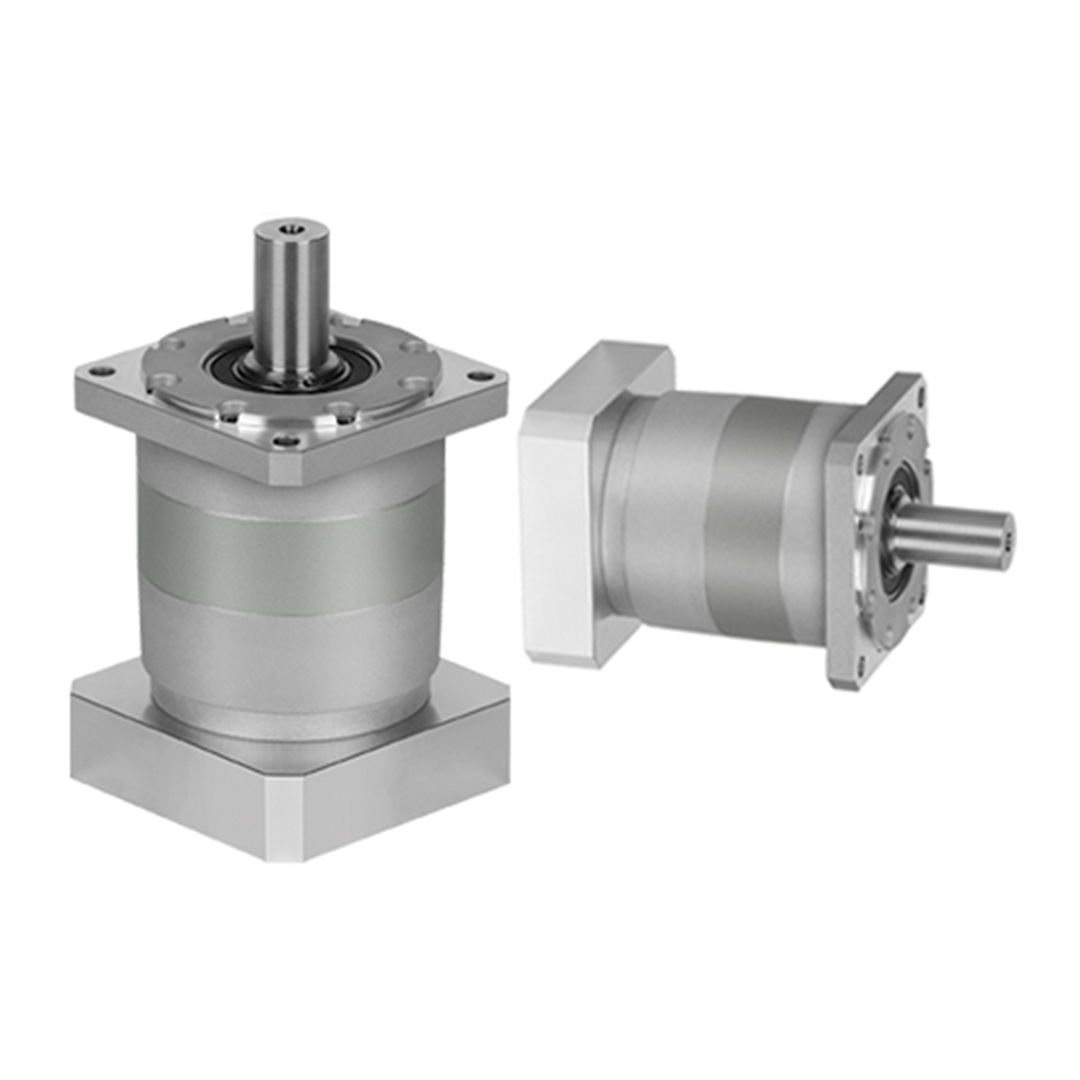

PRF is part of the latest generation economy product family from Nidec Drive Technology Corporation. The PRF redefines the economy planetary gearbox segment by featuring helical cut gearing and a robust internal structure. Our customers benefit from a cost-effective, flexible, reliable design that can be adapted into a wide range of servo and stepper motor axes.
The PRF features a B5 style square output flange for convenient mounting to machinery or linear actuators and can be easily adapted to any motor. Frame sizes from 062-160, along with ? 8-10 arc-minute backlash, allow the PRF to cover a broad range of application requirements where cost is a key consideration. As with all Nidec DTC planetary products, PRF is designed for maximum heat reduction and running efficiency through the use of special lubricants and seals.
Available Frame Sizes: 062 | 082 | 120 | 160
Additional Information:
Key Features
- Carburized helical gears ensure higher accuracy and smooth, quiet operation.
- Uncaged needle roller bearings deliver excellent torque density and torsional rigidity.
- Unique labyrinth input design minimizes heat generation and enhances system efficiency.
- Optimized mounting system with active centering on motor pilot diameter guarantees precise motor alignment, allowing installation in any orientation.
- True concentric motor shaft clamping connection is customized for your motor, reducing inertia for dynamic performance and supporting high-speed operation.
- Ring gear directly machined into the housing, eliminating welding or pressing, ensuring greater concentricity and eliminating speed fluctuation.
