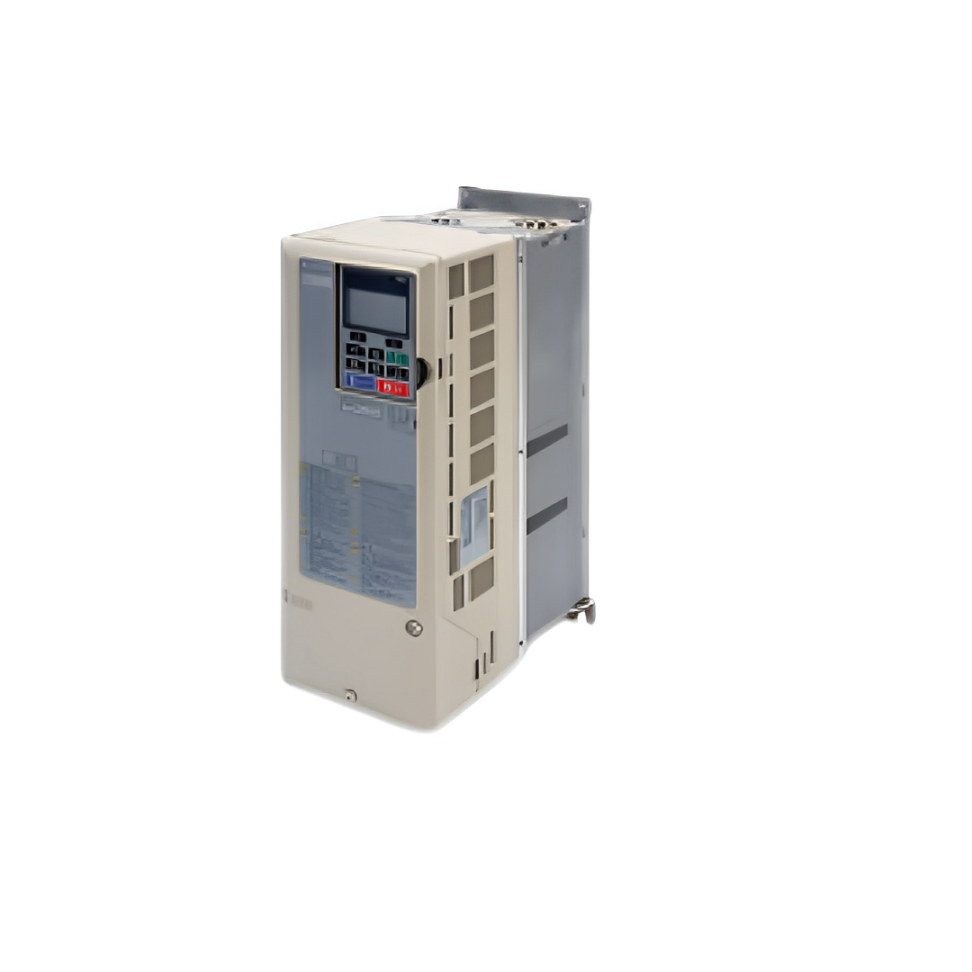

Z1000 Drive
3 – 500 HP
The Z1000 variable speed drive is designed for building automation applications such as fans, pumps, and cooling towers through 500HP. The Z1000 features an easy-to-read LCD keypad that provides Hand-Off-Auto interface and a real time clock. These features make the Z1000 perfect for many building automation applications that require reliable motor control.
Additional Information:
HVAC Drive Features
Explore the advanced features of our HVAC drive system, engineered for superior performance, energy savings, and operational reliability.
Key Features
- Harmonic Mitigation: Built-in 5% line impedance for input harmonic reduction.
- Noise Filter: On-board EMI/RFI filter complies with IEC 61800-3 restricted distribution for first environment.
- Serial Communications: Embedded BACnet communications (BTL Certified), along with Modbus/Memobus, Metasys, and Apogee FLN.
- Ratings: Plenum Rated (UL 1995), Seismic Rated (IBC 2006 – Certification 12/2011), made with RoHS compliant materials.
- Internal Real-Time Clock: Time and date stamping for events, along with timer controls for starting, stopping, and speed changes without the need for external controls.
- PI Feature: Maintains a set point for closed-loop control of fans and pumps for pressure, flow, or temperature regulation, eliminating the need for a closed-loop output signal from a BAS.
- LCD Operator: 5-Line 16 character alpha-numeric, easy-to-read display, with Hand-Off-Auto functions.
- Carrier Frequency: 5 kHz carrier frequency with dynamic noise control for quiet motor operation.
- Application Macros: Choose from pre-configured setup macros to match the application for quick and easy setup.
- Sealed Heatsink: Allows for the drive to be mounted in a NEMA 12 enclosure with heatsink external.
