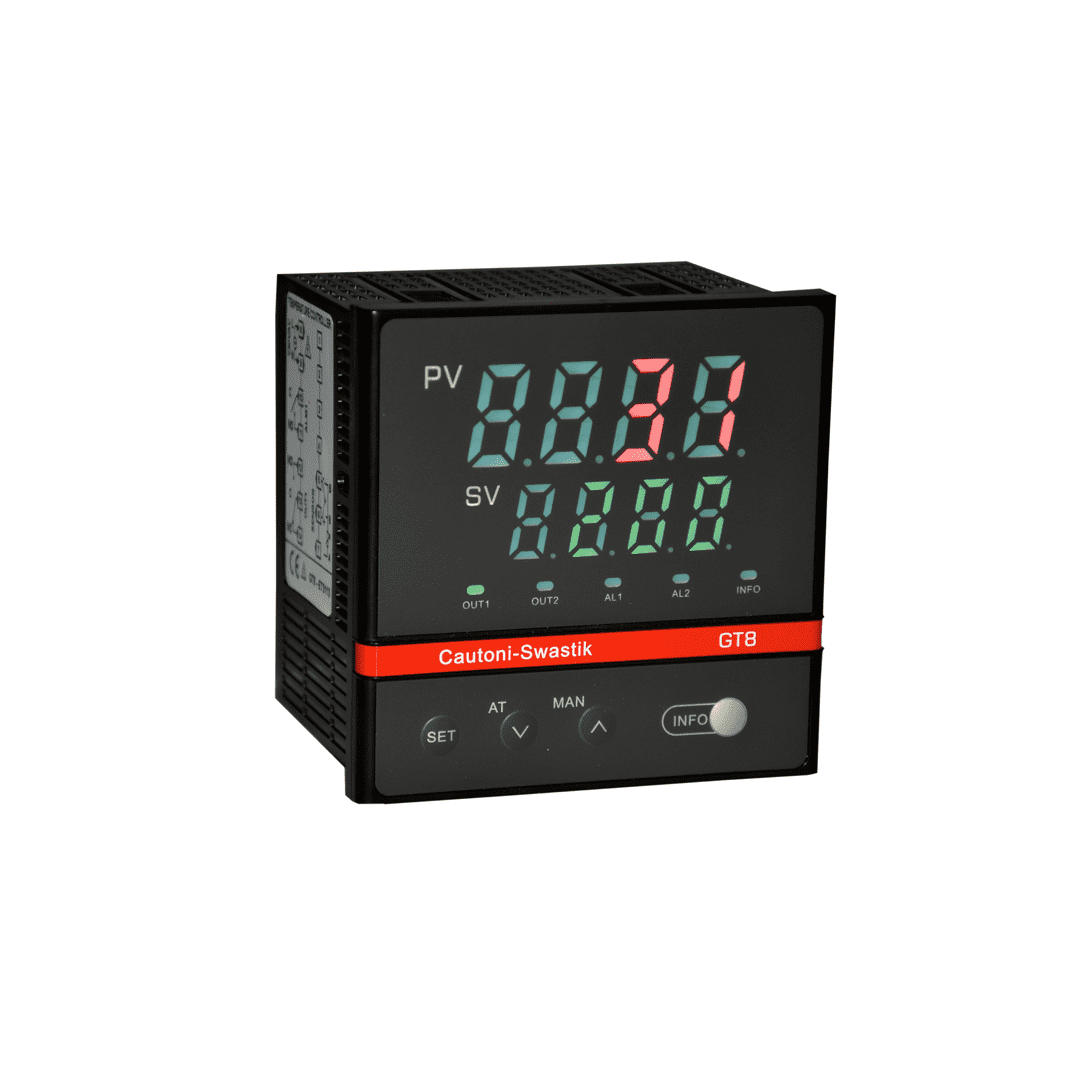

GT8 Temperature Controller
The GT8 Temperature Controller offers precise temperature regulation with advanced features like multiple input types and adjustable settings. Ideal for industrial use, it ensures efficient performance in controlling heating and cooling systems. It features easy installation, clear digital display, and reliable accuracy for temperature-sensitive applications.
Additional Information:
Specifications
- PID Temperature Controller
- All TC / RTD Sensor Selectable
- Dual Display
- Relay ? SSR Output
- Control Action: PID / On-Off Action
- Power Supply: 85 ? 265 VAC
GT8 Temperature Controller Specifications
| Specification | Details |
|---|---|
| Case Size | 48 x 48, 72 x 72, 48 x 96 (H), 96 x 48 (V), 96 x 96 MM |
| Sensor | T/C: K, E, J, S, B, N, R, T, W3-25, W3-2; RTD: PT-100 / 3 WIRE or Analog: (4-20 mA / 0-10 VDC) |
| Range Limit | Check Table -1 for Range and Set Point High/Low Limit |
| Accuracy | +/- 0.5% of FS |
| Sampling Time | 300 MS |
| Resolution | 0.1 ?C / 1 ?C User Selectable |
| Unit | ?C / ?F User Selectable |
| Control Action | PID / Two-Way PID / On-Off |
| Number of Relay | 2 / 3 Relay Output |
| Relay | Relay AC 220 V / 30 VDC / 3 A |
| Logic Level | On: 12 VDC OFF: 0.5 VDC / 30 mA, Load Resistance |
| Analog Output | 4 – 20 mA / 20 – 4 mA Isolated from input |
| Auto / Manual Operation | Output Power is increased / Decreased by Up / Down key in Manual Mode |
| Alarm Type | High / Low Alarm with (Absolute / Keeping / Return Difference Mode) |
| Application | Heating / Heating + Cooling / Cooling / BOD / COD (Temperature with Timer) |
| Display / Color | 4 Digit Dual Display: Upper: 4 Digit Red, Lower: 4 Digit Green Seven Segment Display |
| Keyboard | 4 keys |
| Indication | Indication for Relay Status / Alarm Status / Alarm Information |
| Port | RS – 485 |
| Protocol | Modbus / RTU |
| Mounting | Flush Panel Mounting with Side Clamp |
| Power Supply | 95 – 270 VAC, 50-60 Hz |
| Working Environment | Temp: 0 – 50?C / RH: 35 – 85% (Non-Condensation) |
