ME300 Series

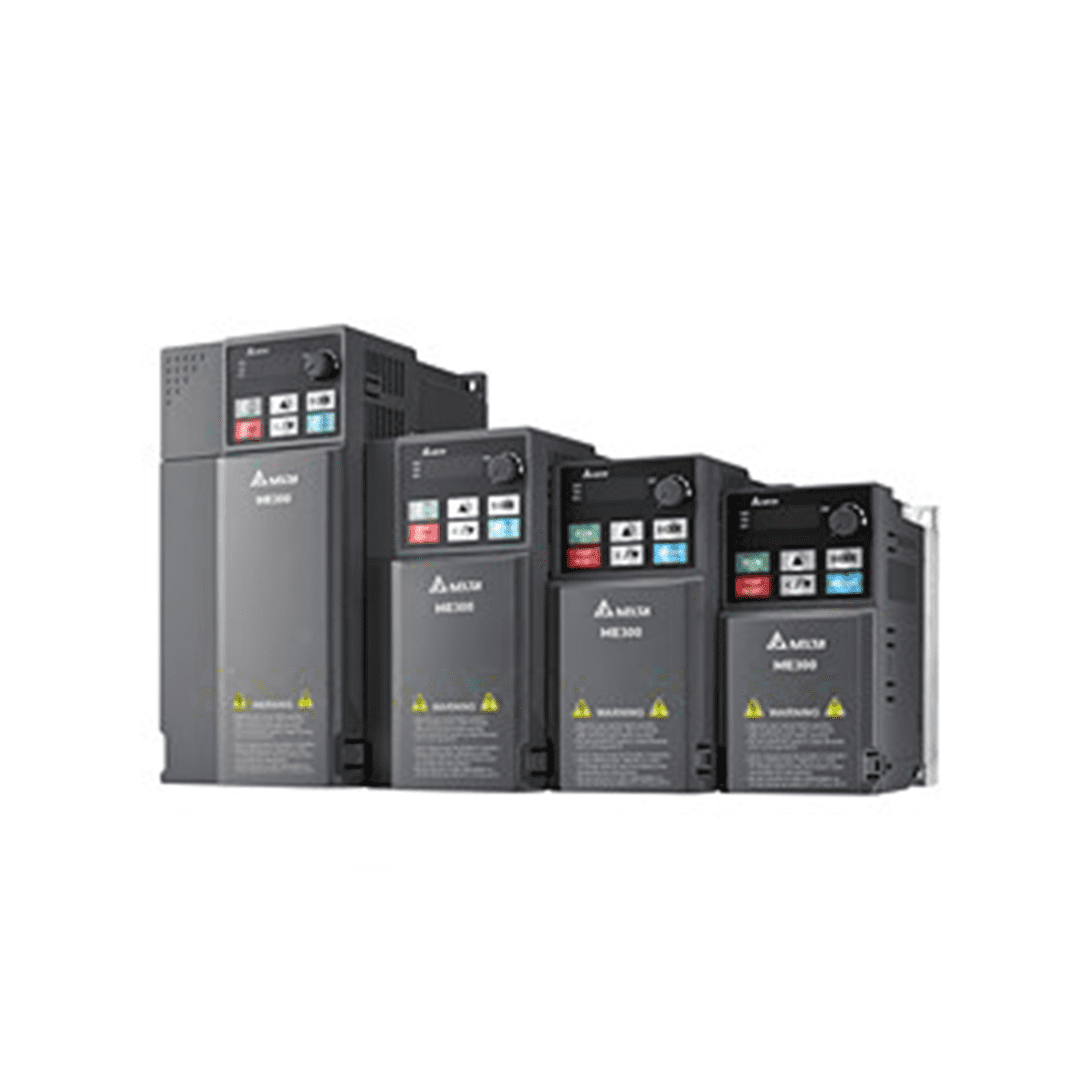

Delta?s ME300 Series is a new generation compact vector control drive that inherits Delta?s superior drive technology, but with a 60% reduction in size. It supports both IM and PM motors, providing higher efficiency and flexibility. Various built-in essential functions are standard to reduce the need for additional expenses and to shorten installation time. The STO function is an option that prevents damage.
Additional Information:
Specifications
- Supports IM / IPM / SPM motors and VF / SVC control
- Dual rating design:
- Normal Duty (ND), 120% for 60 seconds or 150% for 3 seconds
- Heavy Duty (HD), 150% for 60 seconds or 200% for 3 seconds
- Up to 200% rated starting torque at 3 Hz
- 2 sets of motor parameters for multi-motor control
- Supports high-speed pulse and PWM signal input
- Built-in single/multi-pump function
- Built-in braking choppers for the entire series
- Optional EMC filter for 1-phase 230V (C2) and 3-phase 460V (C3) models
- Optional Safe Torque Off (SIL2/PLd) model
- 100% PCB coating for circuit (IEC 60721-3-3 class 3C3) for harsh environments
